Exhaust Manifold Removal-Right (G)

Important:  Twist the spark plug boot one-half turn in order to release the boot. Pull on the spark plug boot only. Do not pull on the spark plug wire or the wire could be damaged.

1. Remove the right spark plug wires from the spark plugs and ignition coils.

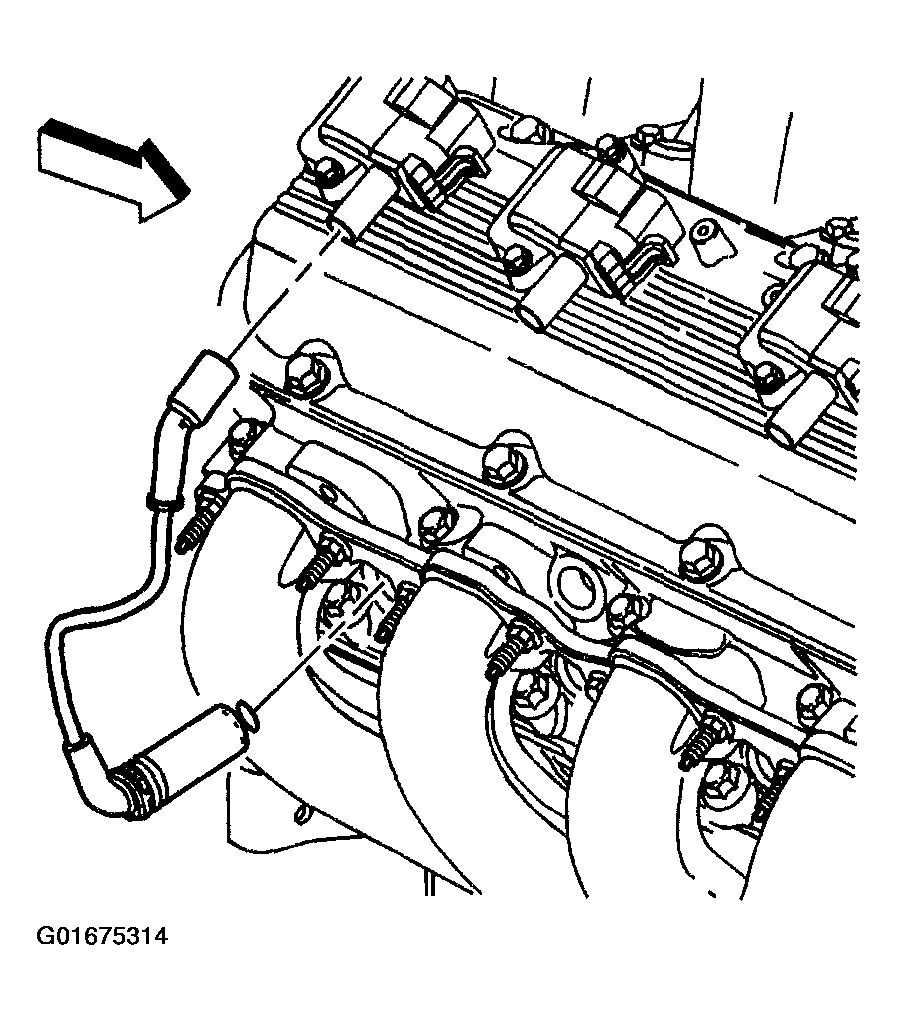

   Fig 1: Right Spark Plug Wires (G)

   Courtesy of GENERAL MOTORS CORP.
2. Remove the exhaust gas recirculation (EGR) pipe bolts from the EGR valve.
3. Remove the EGR pipe nuts from the right exhaust manifold.
4. Remove the EGR pipe bracket bolt.
5. Remove the EGR pipe and gaskets.

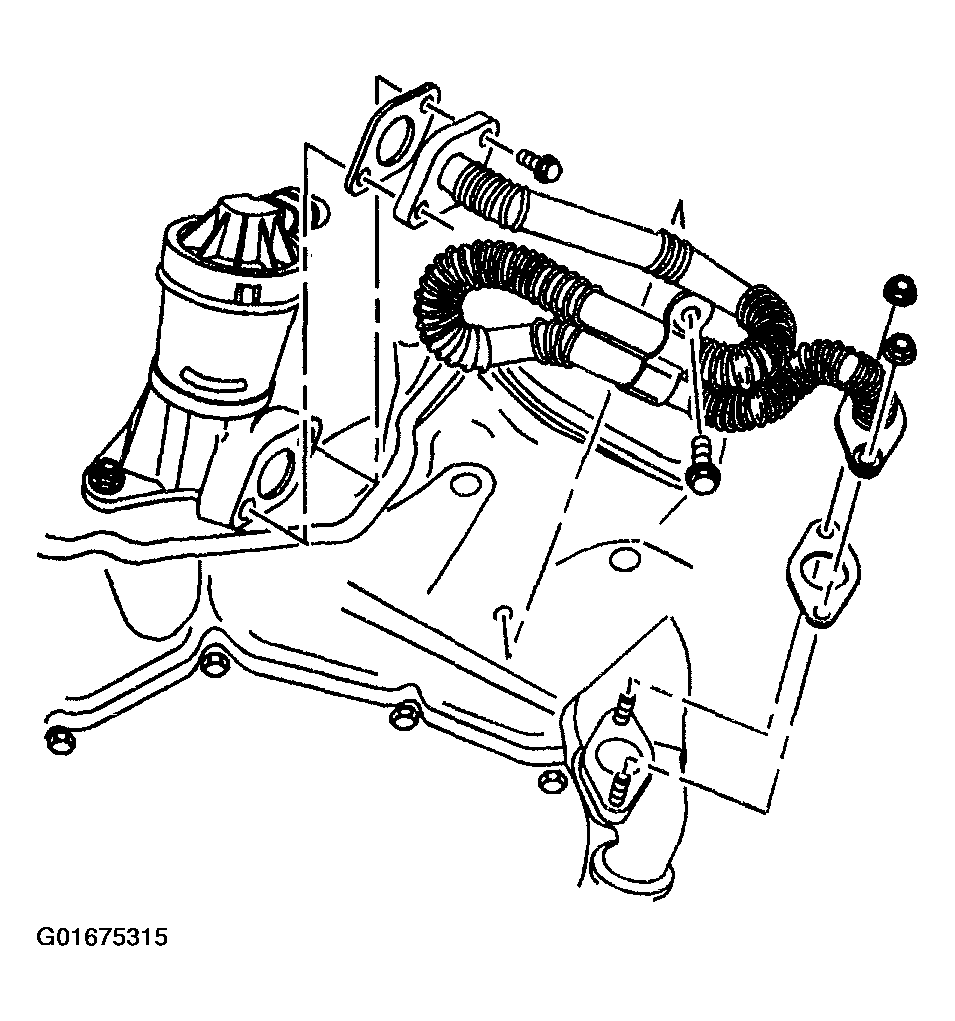

   Fig 2: EGR Pipe, Gasket, Nuts & Bolts

   Courtesy of GENERAL MOTORS CORP.
6. Remove the right exhaust manifold heat shield bolts and nuts.
7. Remove the right exhaust manifold heat shield.

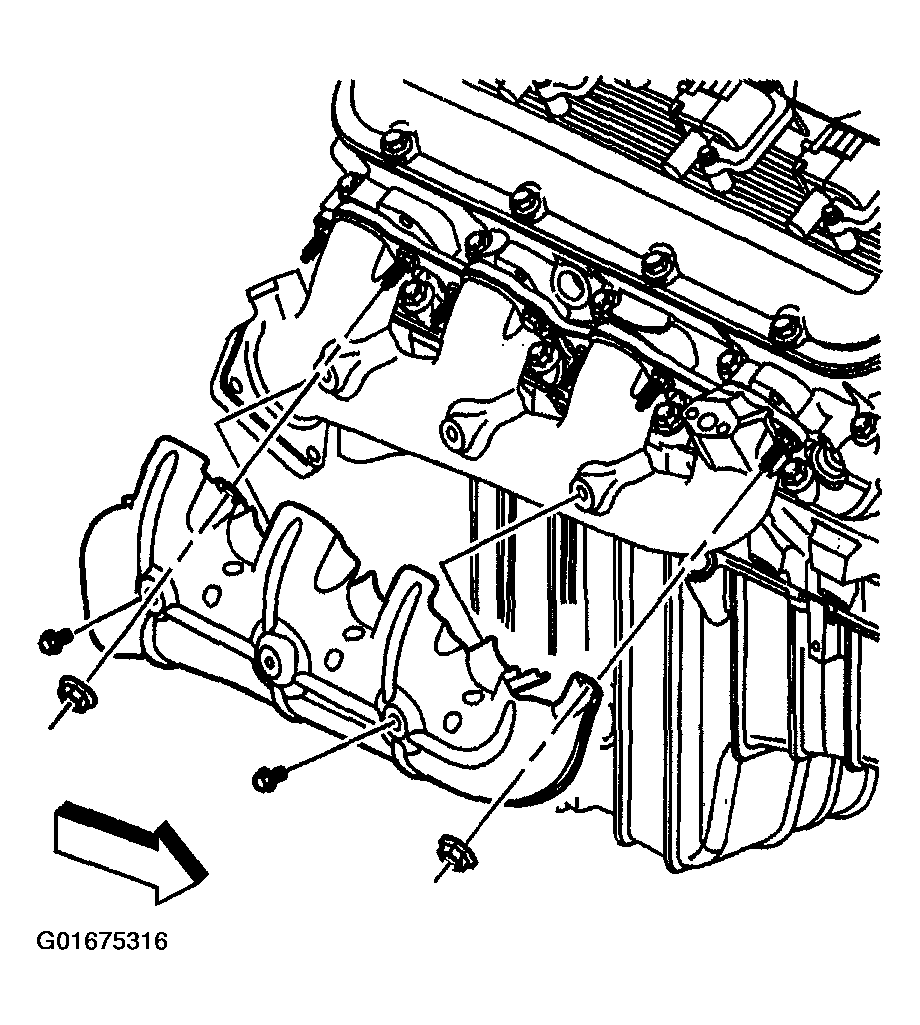

   Fig 3: Right Exhaust Manifold Heat Shield

   Courtesy of GENERAL MOTORS CORP.
8. Remove the right exhaust manifold nuts and center bolt.
9. Remove the right exhaust manifold.
10. Remove the right exhaust manifold gasket.

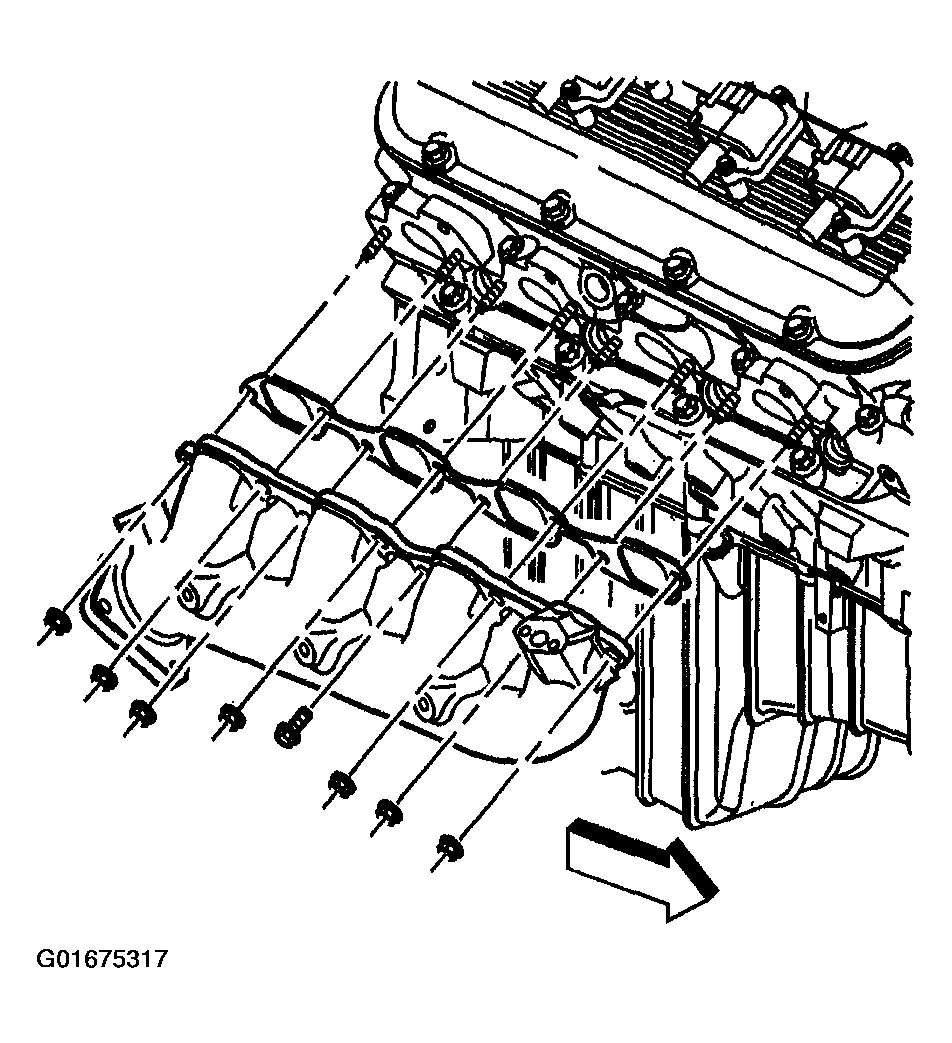

    Fig 4: Right Exhaust Manifold & Gasket

    Courtesy of GENERAL MOTORS CORP.
11. Remove the right spark plugs.

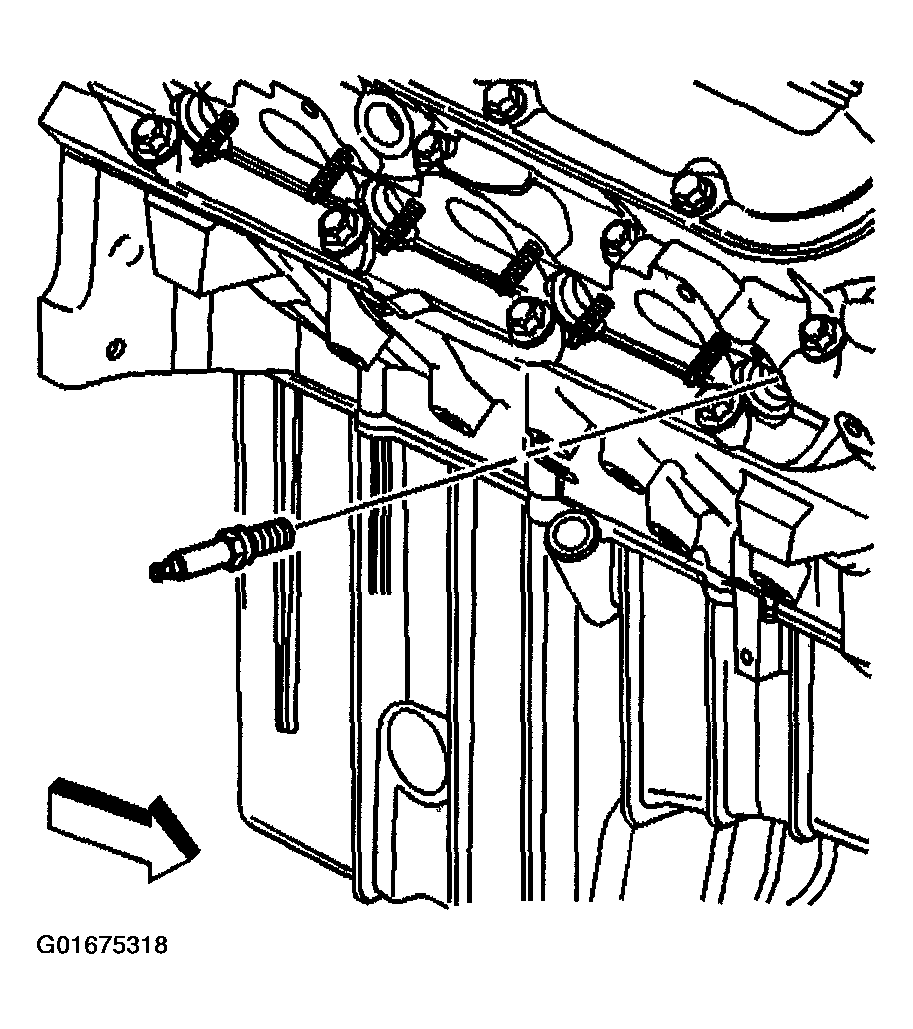

    Fig 5: Right Spark Plug

    Courtesy of GENERAL MOTORS CORP.
12. Remove the exhaust manifold studs, if necessary.

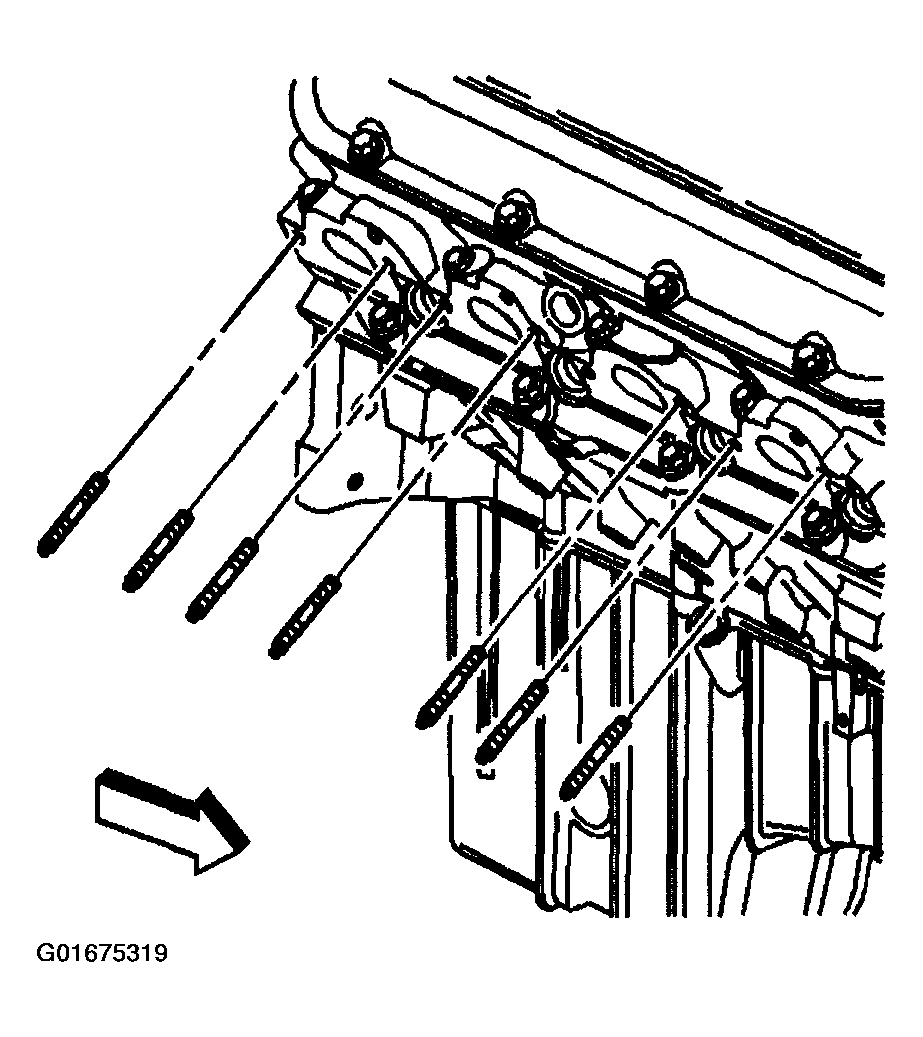

    Fig 6: Exhaust Manifold Studs

    Courtesy of GENERAL MOTORS CORP.
