Engine Flywheel Installation (C/K/G/C3500HD with AT)

WARNING: This page is about a different car, the 2002 GMC Yukon XL, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Important: Make sure the flywheel is installed correctly. Engine Side is stamped on the flywheel to assist with installation.

Install the engine flywheel.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the engine flywheel bolts.
Tighten
- Tighten the engine flywheel bolts to 40 N.m (30 lb ft) for the first pass.
- Tighten the engine flywheel bolts to 80 N.m (59 lb ft) for the second pass.
- Tighten the engine flywheel bolts to 100 N.m (74 lb ft) for the final pass.

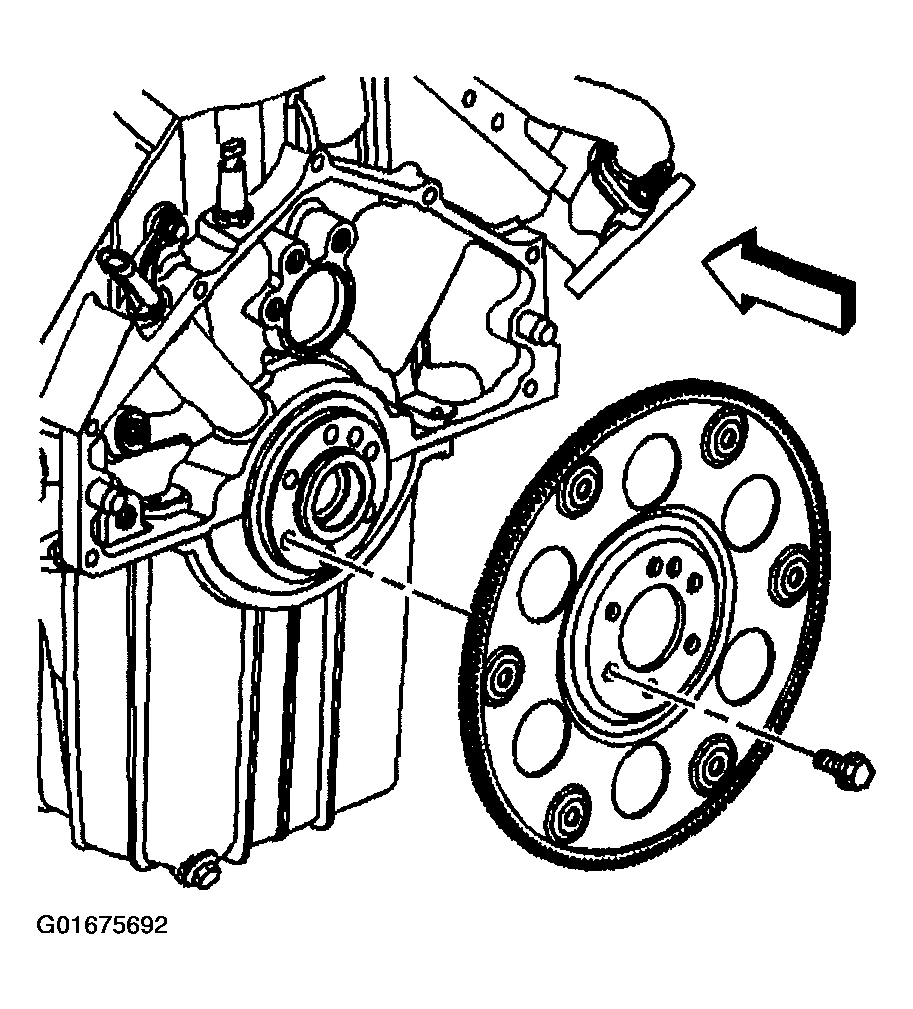

Fig 1: Engine Flywheel & Bolts (C/K/G/C3500HD W/AT)
Courtesy of GENERAL MOTORS CORP.
