Engine Flywheel Installation (C/K with MT)

WARNING: This page is about a different car, the 2002 GMC Yukon XL, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Install the engine flywheel.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the engine flywheel bolts.
Tighten the fasteners following a criss-cross pattern.

Tighten
- Tighten the engine flywheel bolts to 40 N.m (30 lb ft) for the first pass.
- Tighten the engine flywheel bolts to 80 N.m (59 lb ft) for the second pass.
- Tighten the engine flywheel bolts to 100 N.m (74 lb ft) for the final pass.

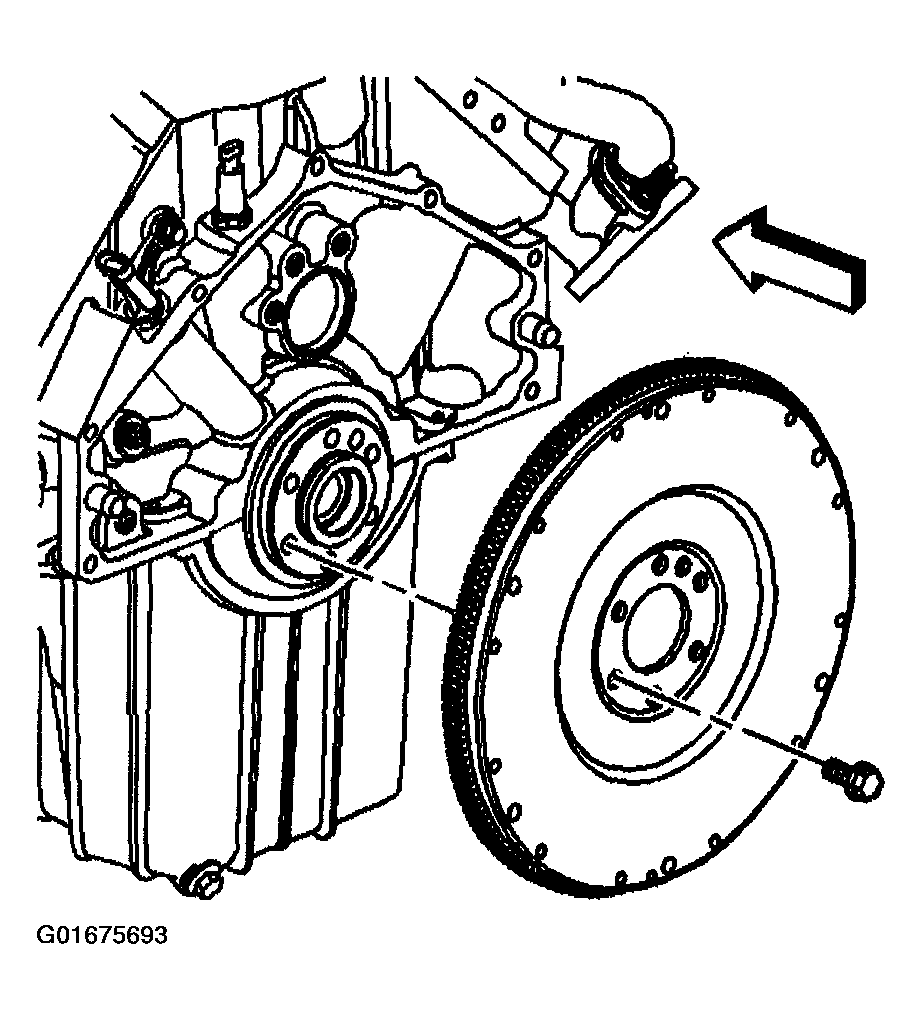

Fig 1: Engine Flywheel & Bolts (C/K W/MT)
Courtesy of GENERAL MOTORS CORP.
