Engine Flywheel Cleaning and Inspection (MT)

WARNING: This page is about a different car, the 2002 GMC Yukon XL, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Clean the engine flywheel in solvent.
CAUTION: Refer to SAFETY GLASSES CAUTION in Cautions and Notices.
Dry the engine flywheel with compressed air.
Inspect the manual transmission engine flywheel for the following conditions:
- Pitted surface (1)
- Scoring or grooves (2)
- Rust or other surface damage (3)
- Damaged ring gear teeth (4)
- Loose or improperly positioned ring gear
  The ring gear has an interference fit onto the engine flywheel and should be positioned completely against the flange of the engine flywheel.

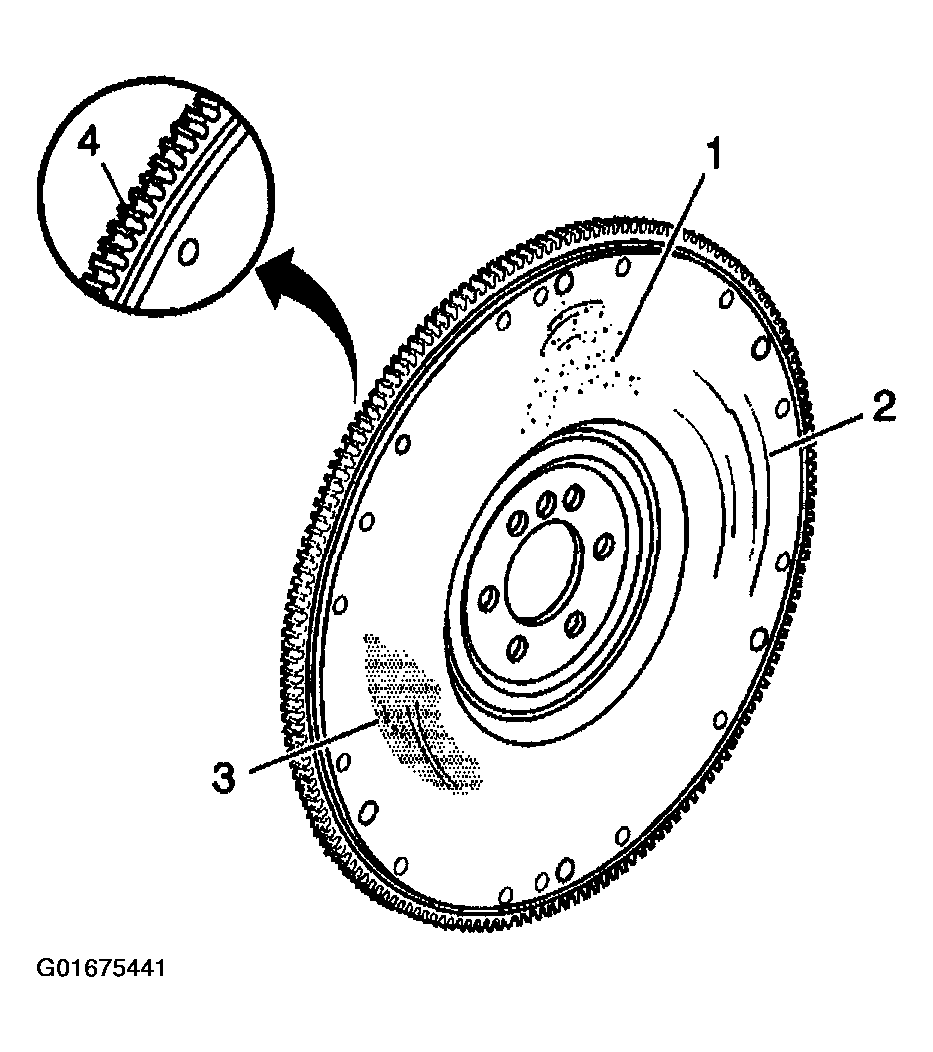

Fig 1: Engine Flywheel Inspection Areas (MT)
Courtesy of GENERAL MOTORS CORP.
