Cylinder Head Removal-Left

WARNING: This page is about a different car, the 2002 GMC Yukon XL, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove and discard the eighteen cylinder head bolts (1, 2, 3).

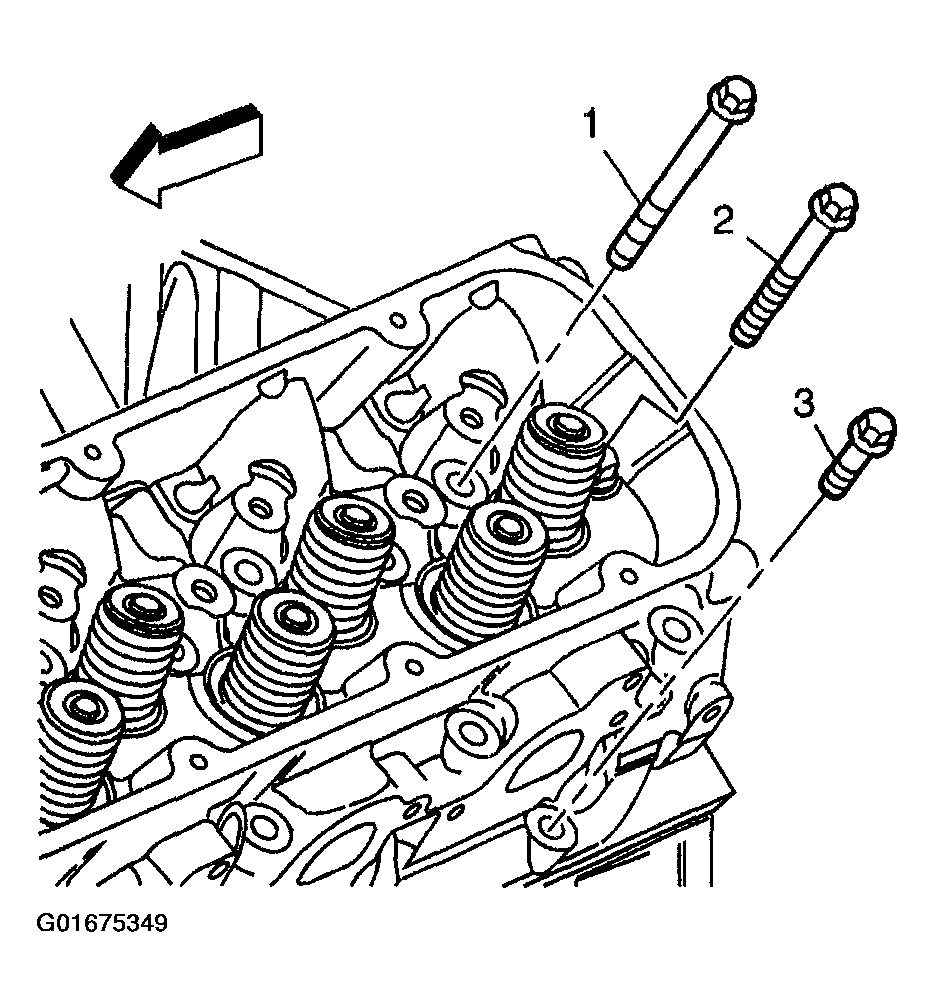

    Fig 1: Cylinder Hear Bolts (Left)
    G01675349Courtesy of GENERAL MOTORS CORP.

    Important:  Place cylinder head on two wood blocks to prevent damage to the sealing surfaces.

  2. Remove the cylinder head.

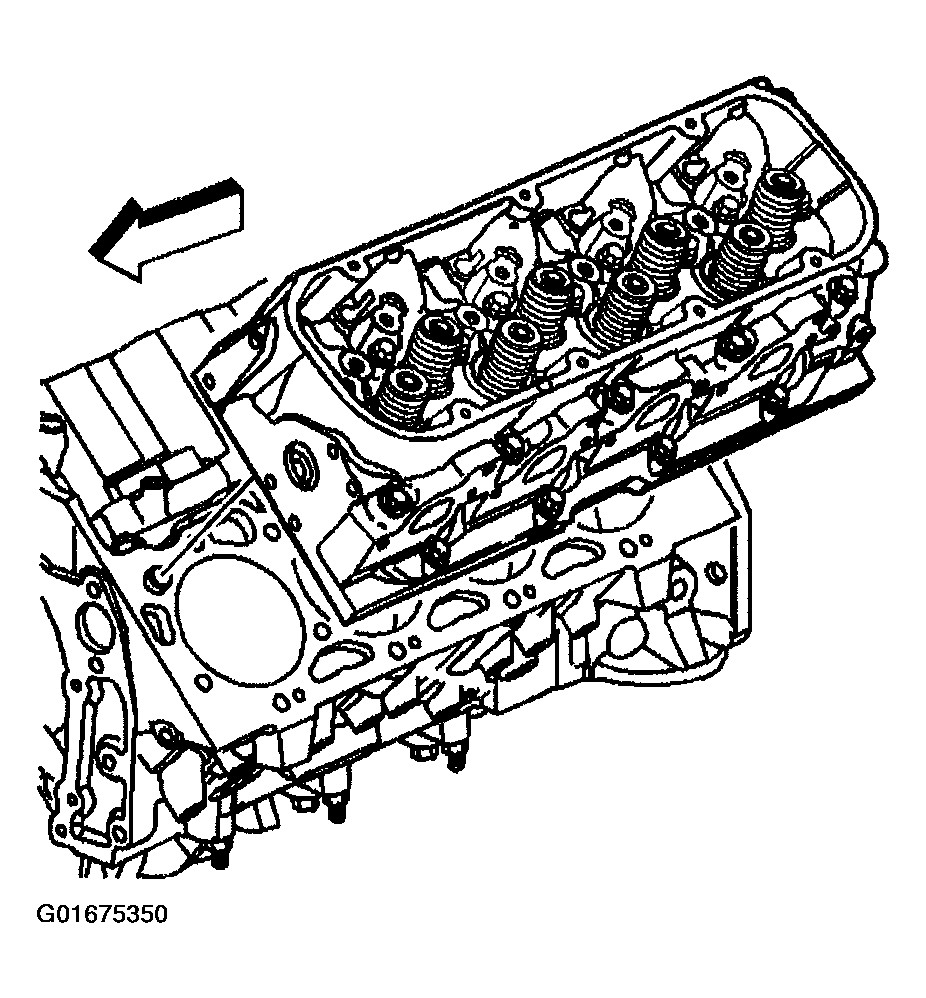

    Fig 2: Left Cylinder Head
    G01675350Courtesy of GENERAL MOTORS CORP.
  3. Remove the cylinder head gasket.
  4. Discard the cylinder head gasket.

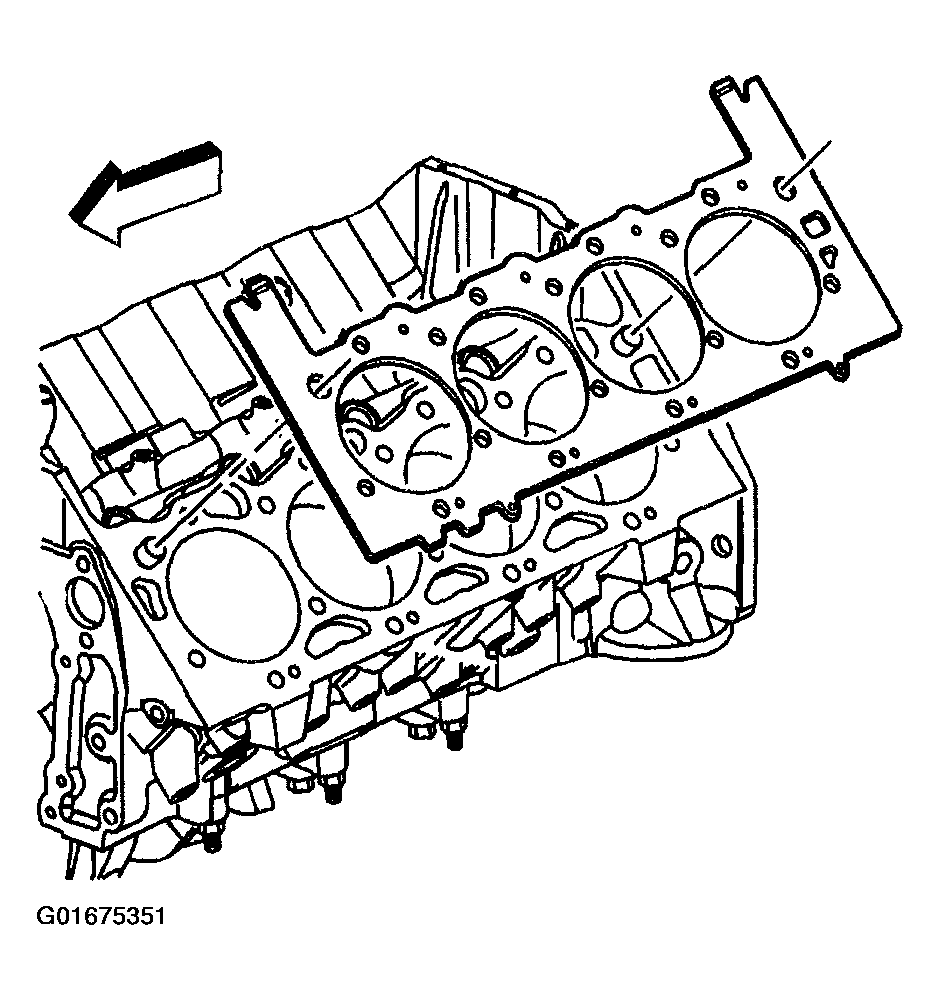

    Fig 3: Left Cylinder Head Gasket
    G01675351Courtesy of GENERAL MOTORS CORP.
