Crankshaft Balancer Removal (Medium Duty)

WARNING: This page is about a different car, the 2002 GMC Yukon XL, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 24420-C Harmonic Balancer Puller
J 42847 Flywheel Holding Tool

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Important: Make sure the teeth of the flywheel holding tool engage the engine flywheel teeth.

Install the J 42847 to the starter bolt holes.
Tighten

Tighten the J 42847 bolts to 50 N.m (37 lb ft).
Remove the crankshaft balancer bolt and washer.

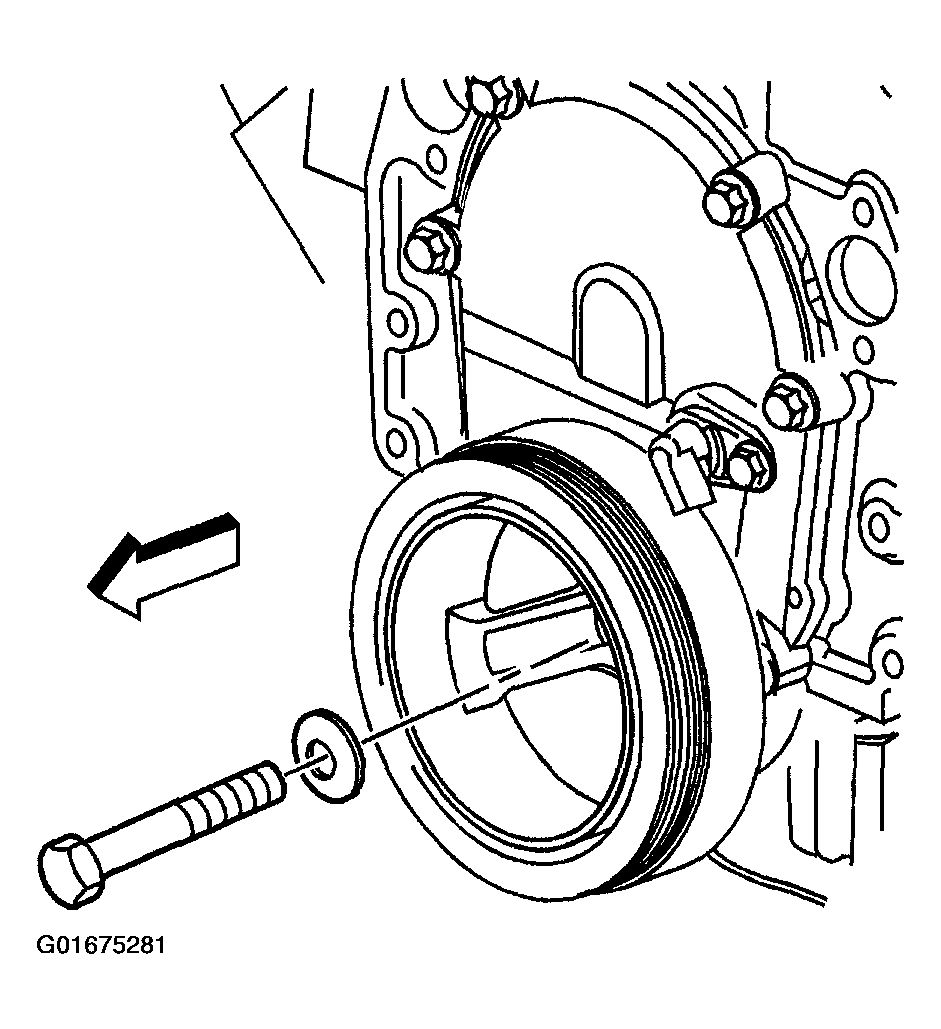

Fig 1: Crankshaft Balancer Bolt & Washer
Courtesy of GENERAL MOTORS CORP.
Install the J 24420-C or equivalent onto the crankshaft balancer.
Tighten the center screw of the J 24420-C until the crankshaft balancer is clear of the crankshaft nose.
Remove the crankshaft balancer.
Remove the J 42847 .

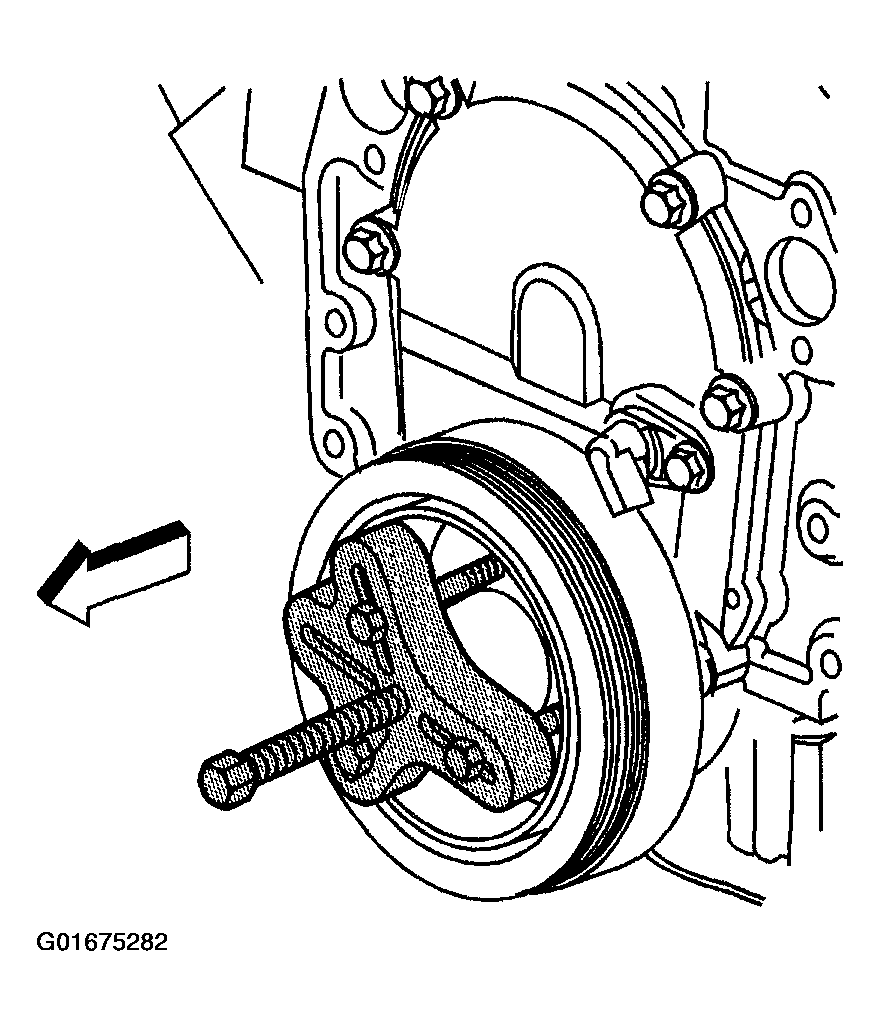

Fig 2: Removing Crankshaft Balancer Using J 24420-C
Courtesy of GENERAL MOTORS CORP.
