Clutch Pilot Bearing Removal (Medium Duty)
WARNING: This page is about a different car, the 2002 GMC Yukon XL, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Tools Required
J 23907 Slide Hammer
CAUTION:
Refer to SAFETY GLASSES CAUTION
in Cautions and Notices.

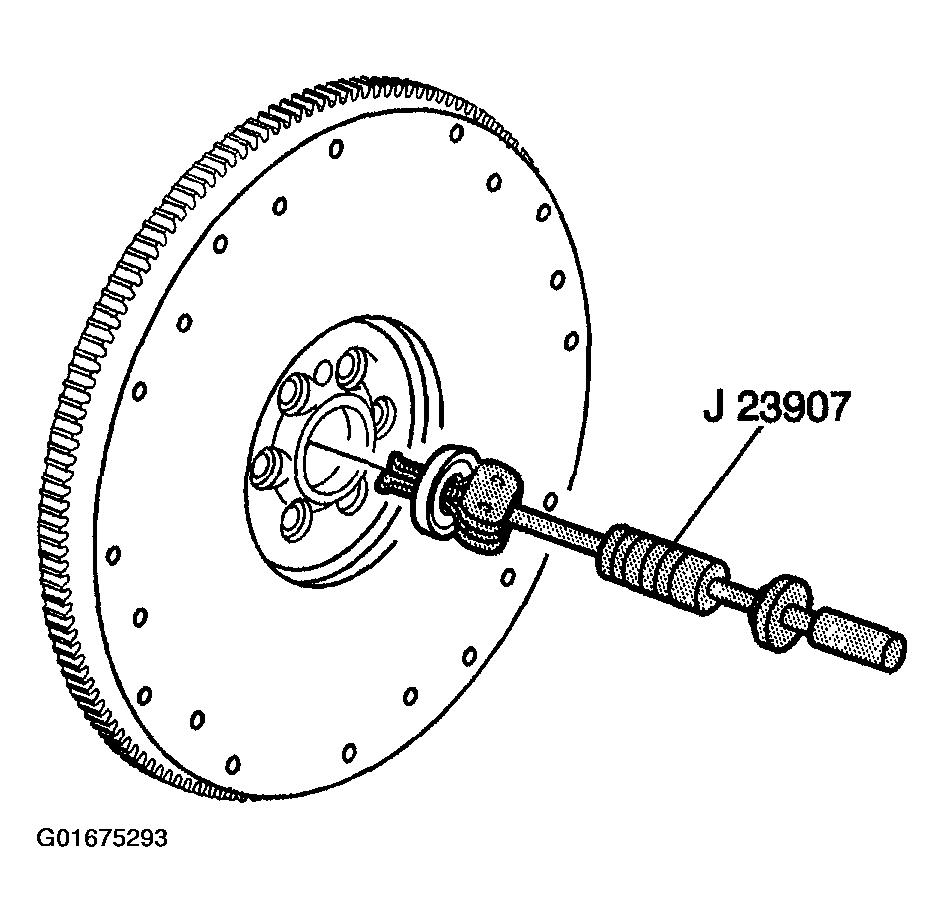

- Remove the clutch pilot bearing using the J 23907 .
- Discard the clutch pilot bearing.
- Inspect the engine flywheel clutch pilot bearing bore for serviceability.
