Clutch Pilot Bearing Removal (C/K/C3500HD)

WARNING: This page is about a different car, the 2002 GMC Yukon XL, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 43276 Clutch Pilot Bearing Remover

CAUTION: Refer to SAFETY GLASSES CAUTION in Cautions and Notices.

NOTE: When using the J 43276 Clutch Pilot Bearing Remover always secure the J 43276-1 Clutch Pilot Bearing Remover tool body using a wrench. Do not allow the J 43276-1 tool body to rotate. Failing to do so will cause damage to the J 43276-1 tool body.

Remove the clutch pilot bearing using the J 43276 .
1. 1.1. Install the J 43276-1 tool body into the clutch pilot bearing.
2. 1.2. Using a wrench secure the J 43276-1 tool body.

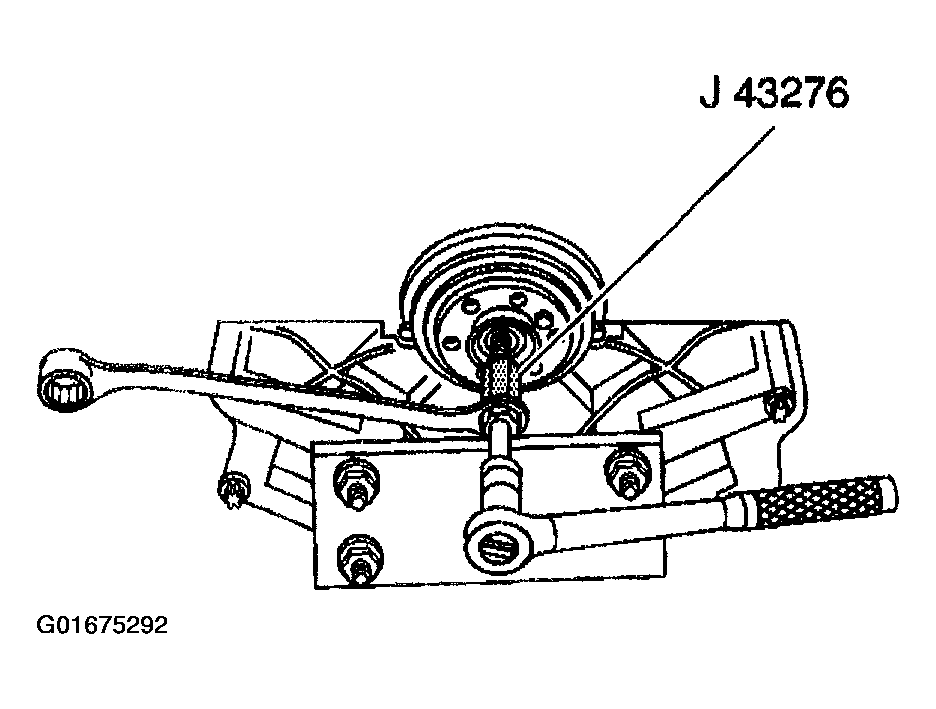

  Fig 1: Removing Clutch Pilot Bearing Using J 43276 (C/K/C3500HD)
  Courtesy of GENERAL MOTORS CORP.
3. 1.3. Insert the J 43276-2 forcing screw into the J 43276-1 tool body.
4. 1.4. Rotate the J 43276-2 forcing screw clockwise into the J 43276-1 tool body until the clutch pilot bearing is completely removed from the crankshaft.
5. 1.5. Rotate the J 43276-2 forcing screw counterclockwise to remove the J 43276-2 forcing screw from the J 43276-1 tool body.
6. 1.6. Remove the J 43276-1 tool body from the clutch pilot bearing.
Discard the clutch pilot bearing.
