Clutch Pilot Bearing Installation (Medium Duty)

WARNING: This page is about a different car, the 2002 GMC Yukon XL, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to SAFETY GLASSES CAUTION in Cautions and Notices.

Important: Install the bearing from the crankshaft side of the engine flywheel.

Install the NEW clutch pilot bearing (1) flush with the surface of the crankshaft flange bore (2).
Ensure that proper installation is obtained.

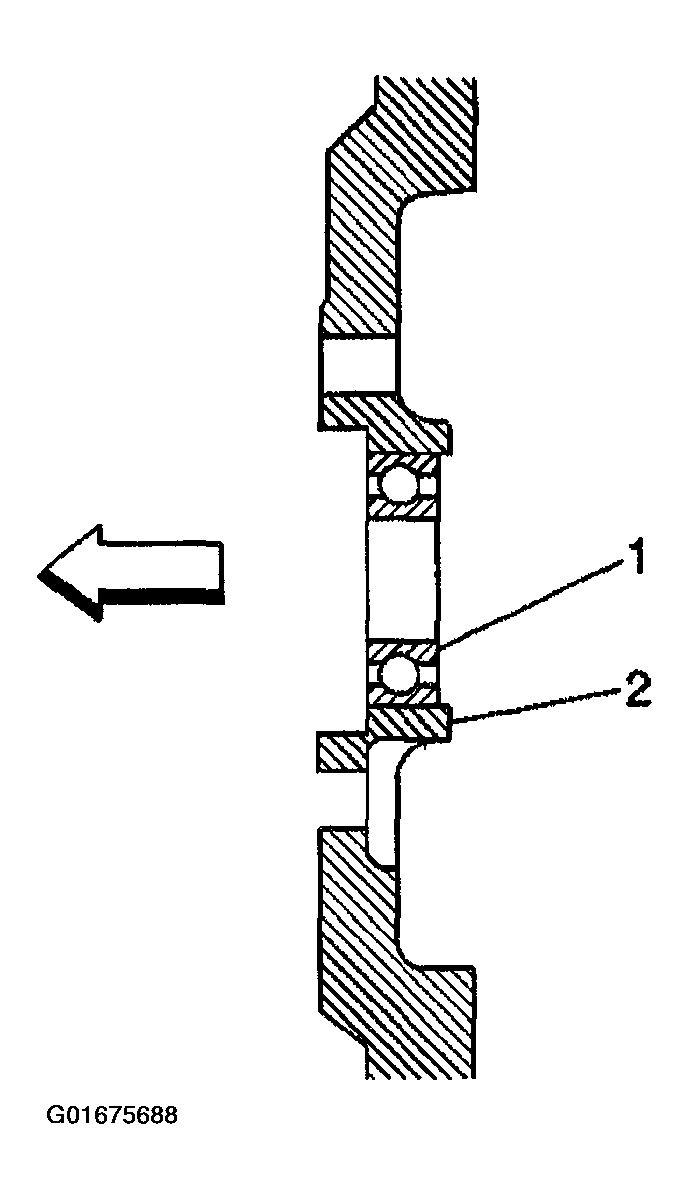

Fig 1: Clutch Pilot Bearing Proper Installation Position (Medium Duty)
Courtesy of GENERAL MOTORS CORP.
