Clutch Pilot Bearing Installation (C/K/C3500HD)

WARNING: This page is about a different car, the 2002 GMC Yukon XL, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to SAFETY GLASSES CAUTION in Cautions and Notices.

Install the NEW clutch pilot bearing.

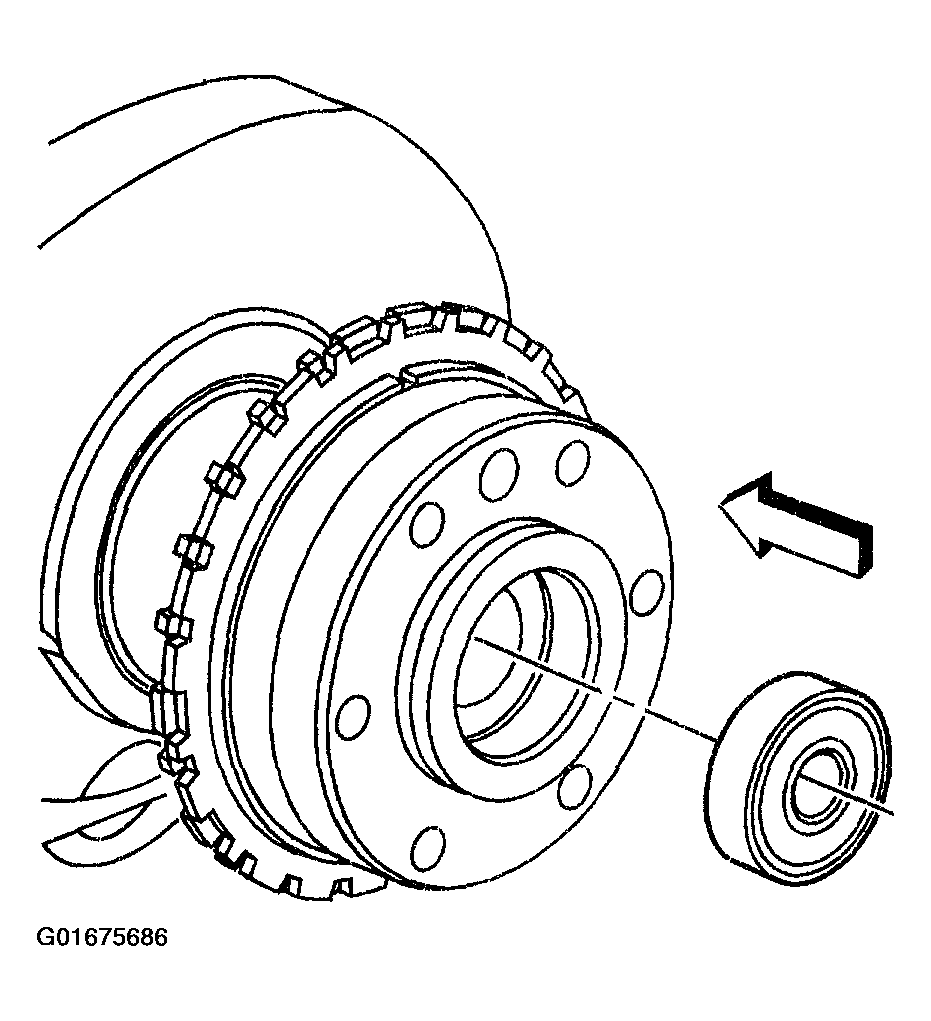

Fig 1: Clutch Pilot Bearing (C/K/C3500HD)
Courtesy of GENERAL MOTORS CORP.

Important: Make sure the bearing is installed parallel to the rear of the crankshaft.
Measure to ensure the proper installation depth is obtained. The bearing (1) should be (A) 14.650-15.650 mm (0.577-0.616 in) from the lip of the crankshaft, or (B) 6.400-7.400 mm (0.252-0.291 in) from the crankshaft flange.

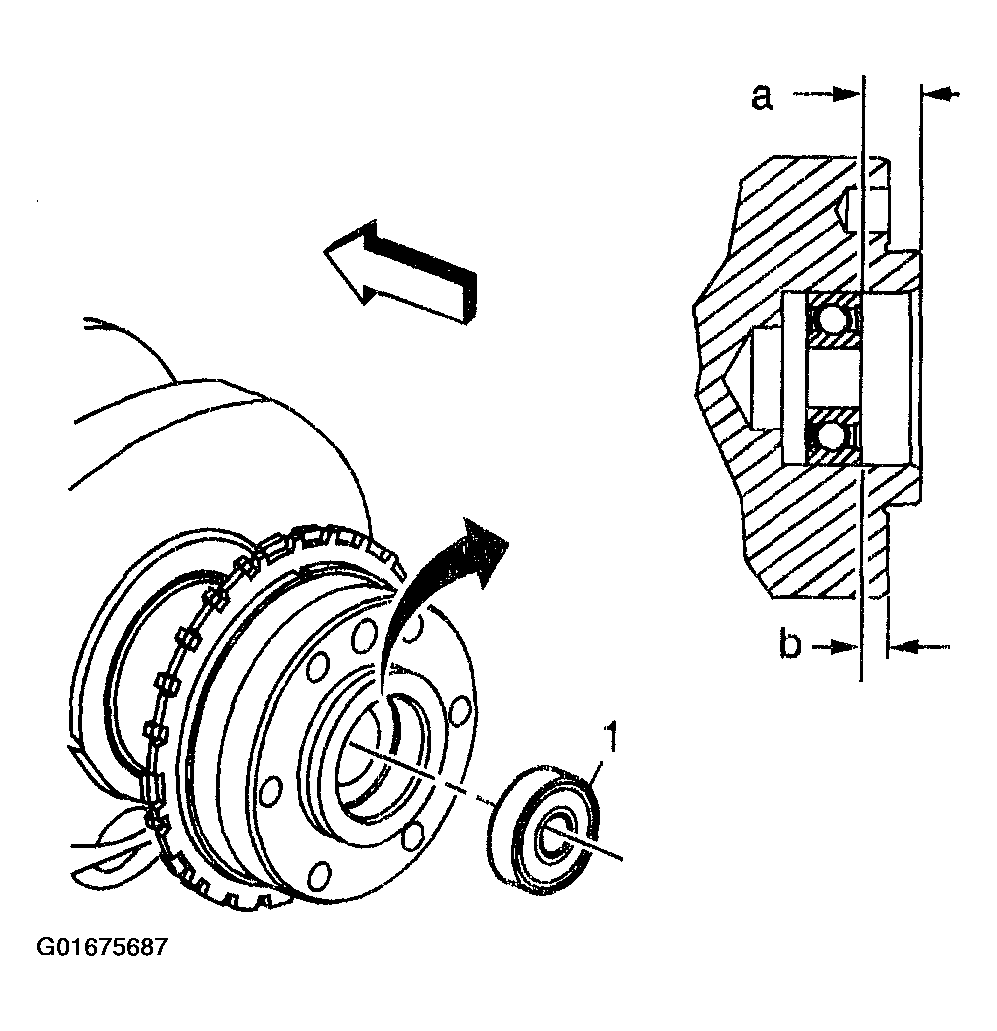

Fig 2: Measuring Clutch Pilot Bearing Proper Installation Depth (C/K/C3500HD)
Courtesy of GENERAL MOTORS CORP.
