Camshaft Removal

WARNING: This page is about a different car, the 2002 GMC Yukon XL, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the camshaft retainer bolts.
  2. Remove the camshaft retainer.

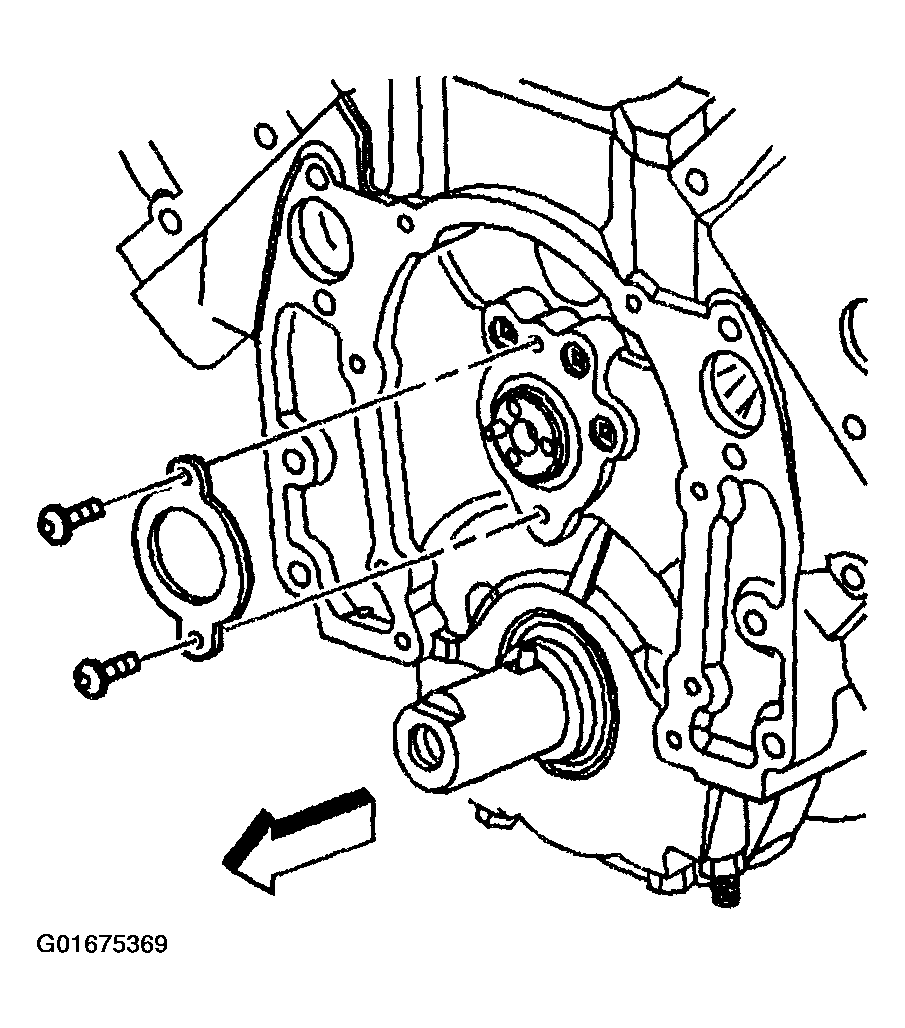

    Fig 1: Camshaft Retainer & Bolts
    G01675369Courtesy of GENERAL MOTORS CORP.
  3. Install three 8-1.25 x 100 mm bolts in the camshaft front bolt holes.
    NOTE: All camshaft journals are the same diameter, so care must be used in removing or installing the camshaft to avoid damage to the camshaft bearings.
  4. Using the bolts as a handle, carefully rotate and pull the camshaft out of the engine block.
  5. Remove the bolts from the front of the camshaft.

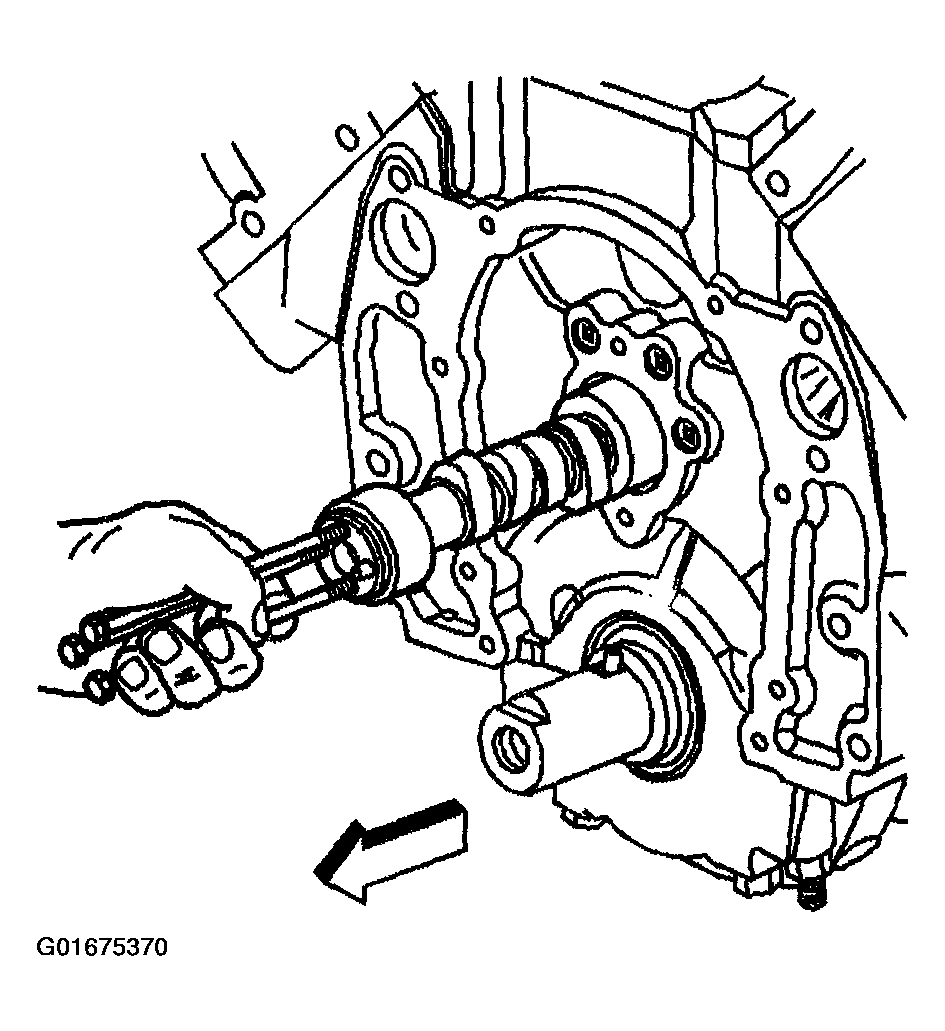

    Fig 2: Removing Camshaft Using Bolts
    G01675370Courtesy of GENERAL MOTORS CORP.
