Camshaft Installation

WARNING: This page is about a different car, the 2002 GMC Yukon XL, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the following components with clean engine oil, engine oil supplement GM P/N United States 1052367, GM P/N Canada 992869, or equivalent:
    • The camshaft lobes
    • The camshaft bearing journals
    • The camshaft bearings
    NOTE: All camshaft journals are the same diameter, so care must be used in removing or installing the camshaft to avoid damage to the camshaft bearings.
  2. Install the three 8-1.25 x 100 mm bolts in the camshaft front bolt holes.
  3. Using the bolts as a handle, install the camshaft.
  4. Remove the three bolts from the front of the camshaft.

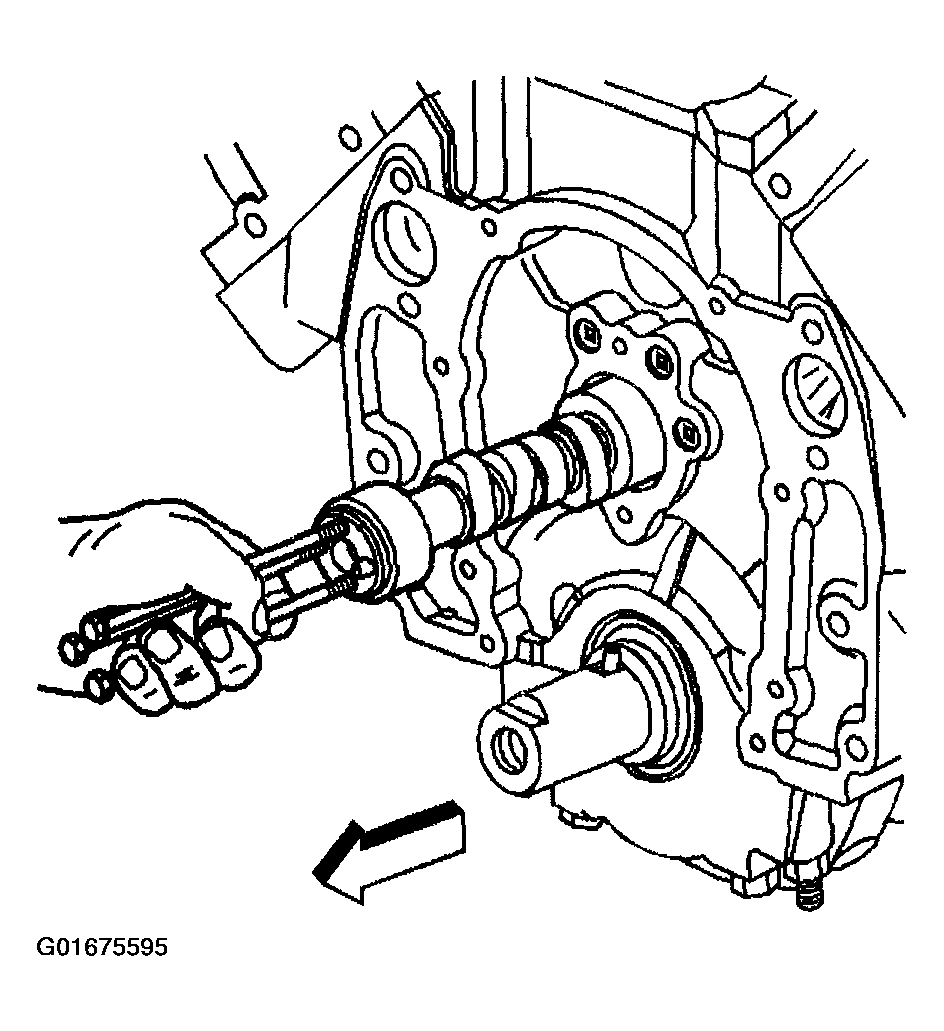

    Fig 1: Installing Camshaft Using Bolts
    G01675595Courtesy of GENERAL MOTORS CORP.
  5. Install the camshaft retainer.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  6. Install the camshaft retainer bolts.

    Tighten

    Tighten the camshaft retainer bolts to 12N.m(106lbin).

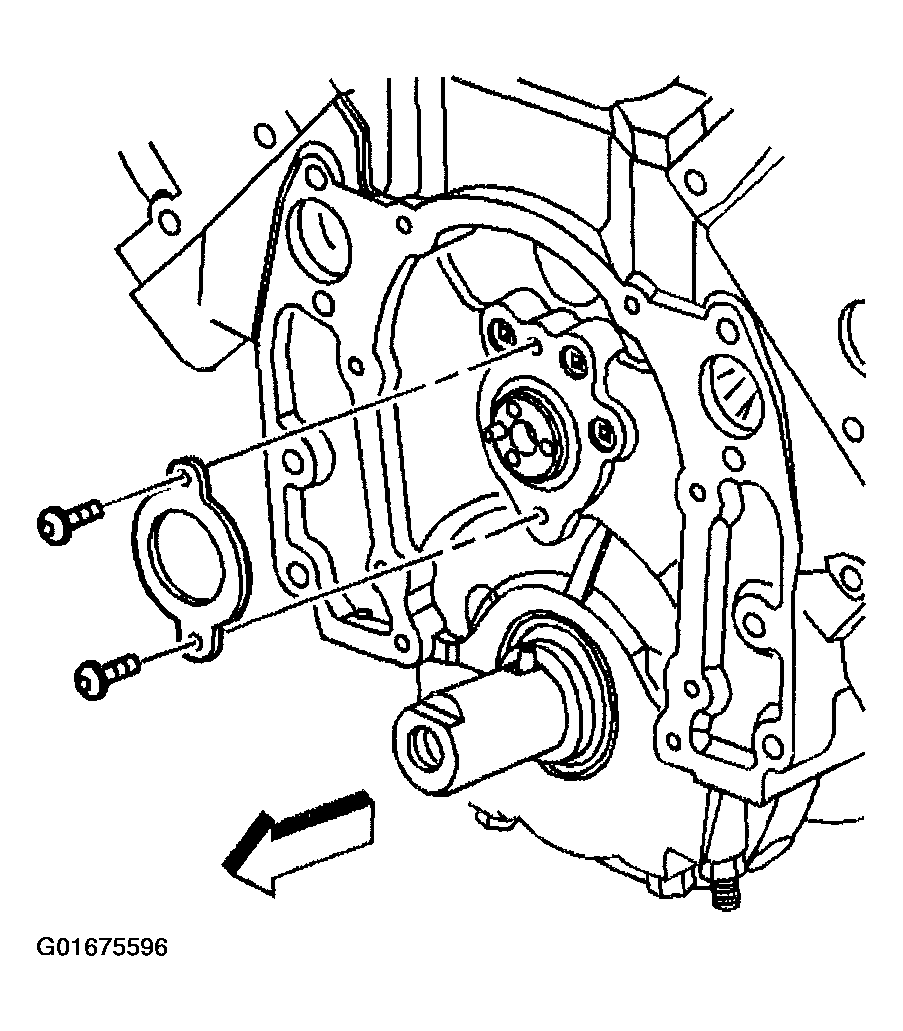

    Fig 2: Camshaft Retainer & Bolts
    G01675596Courtesy of GENERAL MOTORS CORP.
