Installation Procedure
WARNING: This page is about a different car, the 2002 GMC Yukon XL, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
- Install the sight shield bracket, if necessary.
- Install the sight shield bracket nuts, if necessary.
Tighten: Tighten the intake manifold sight shield bracket nuts to 5 N.m (44 lb in).

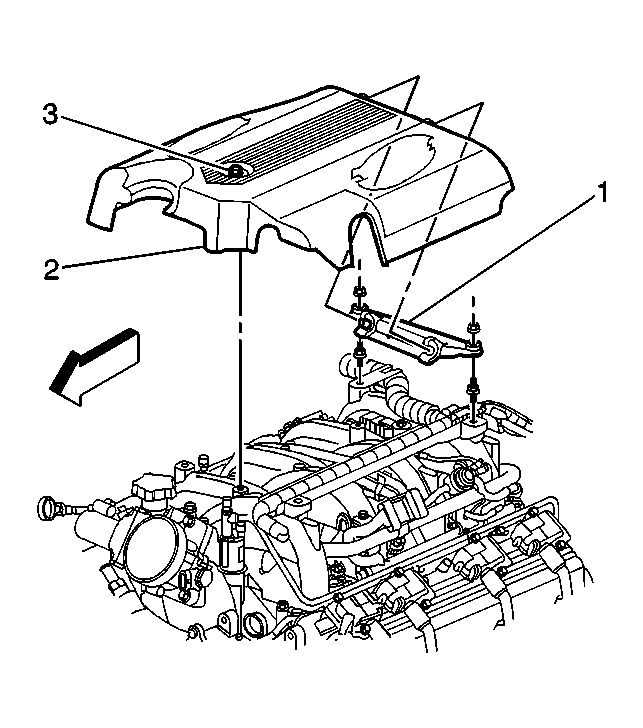

- Install the intake manifold sight shield (2) to the bracket (1).
- Tighten the intake manifold sight shield bolt (3).
Tighten: Tighten the intake manifold sight shield bolt to 10 N.m (89 lb in).
NOTE:
Refer to FASTENER NOTICE
in Cautions and Notices.
NOTE:
Use care when installing the engine sight shield to avoid contacting the manifold absolute pressure (MAP) sensor wire harness connector. Loss of engine performance or engine damage may result.
