Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the push-pin (2) retaining the wheelhouse extension (1) to the wheelhouse.
  2. Remove the wheelhouse extension (1) from the wheelhouse.

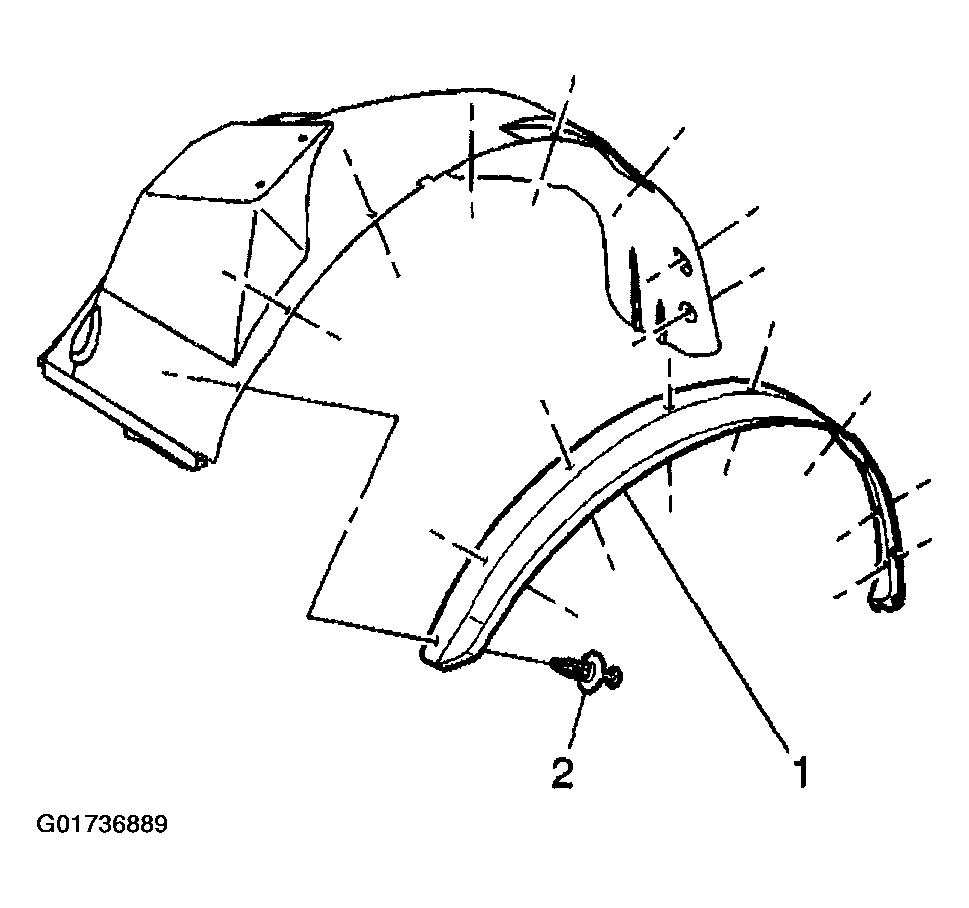

    Fig 1: Removing Wheelhouse Extension
    G01736889Courtesy of GENERAL MOTORS CORP.
