Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the push pin retainers (4) retaining the splash shield (5) to the wheelhouse.
  2. Remove the bolt (3) retaining the splash shield (5) to the wheelhouse.
  3. Remove the clip (2) retaining the splash shield (5) to the rear of the wheelhouse.
  4. Remove the splash shield (5) from the wheelhouse.

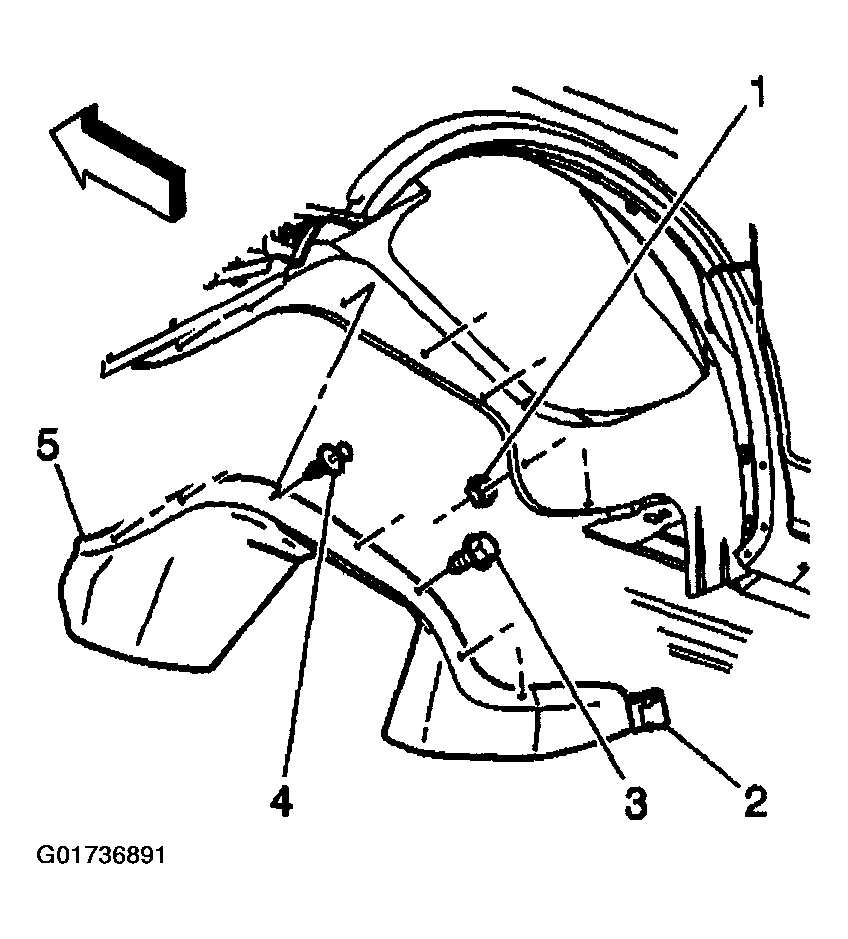

    Fig 1: Removing Splash Shield
    G01736891Courtesy of GENERAL MOTORS CORP.
