Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the slot in the rear hood seal (1) with the cowl pinch weld flange.
  2. Press the rear hood seal (1) into place.

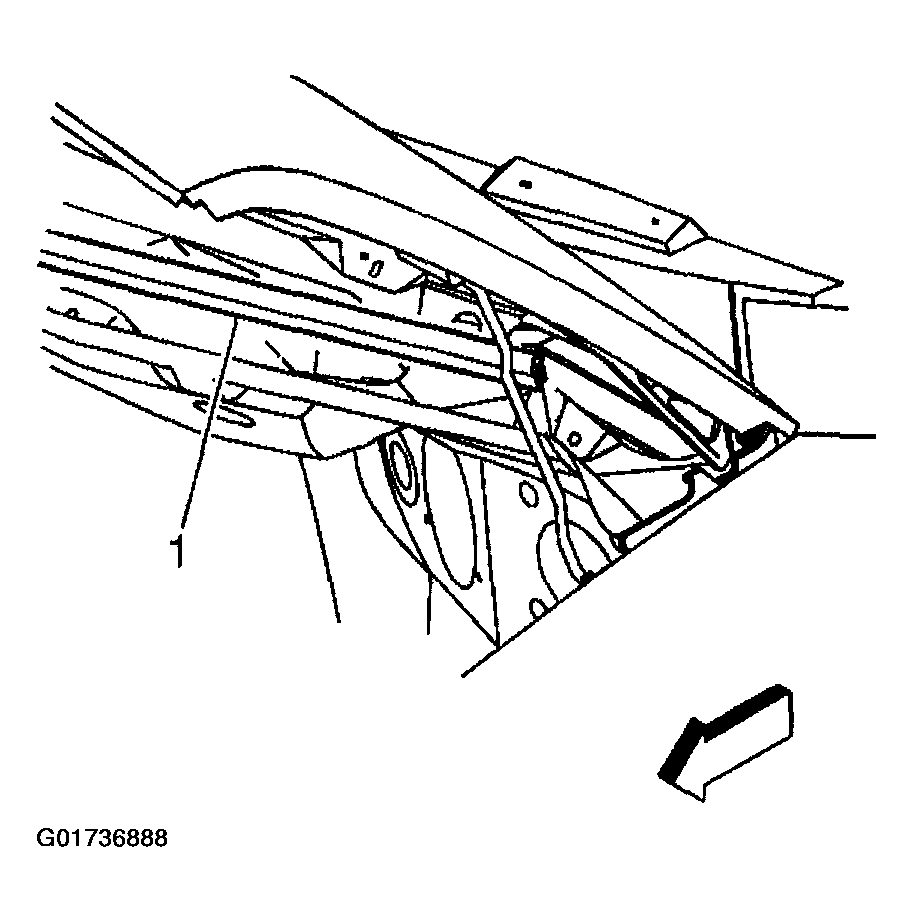

    Fig 1: Installing Rear Hood Seal
    G01736888Courtesy of GENERAL MOTORS CORP.
