Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper arms from the vehicle. Refer to WIPER ARM .
  2. Open and support the hood.
  3. Remove the underhood lamp and the harness from the hood. Refer to UNDERHOOD LAMP REPLACEMENT (BASE) or UNDERHOOD LAMP REPLACEMENT (RETRACTABLE) .
  4. Remove the air inlet grille panels. Refer to Air Inlet Grille Panel Replacement .
  5. Remove the pivot bolts (4) and the nuts (2) from the hinge (1).
  6. With an assistant, remove the hood from the vehicle.

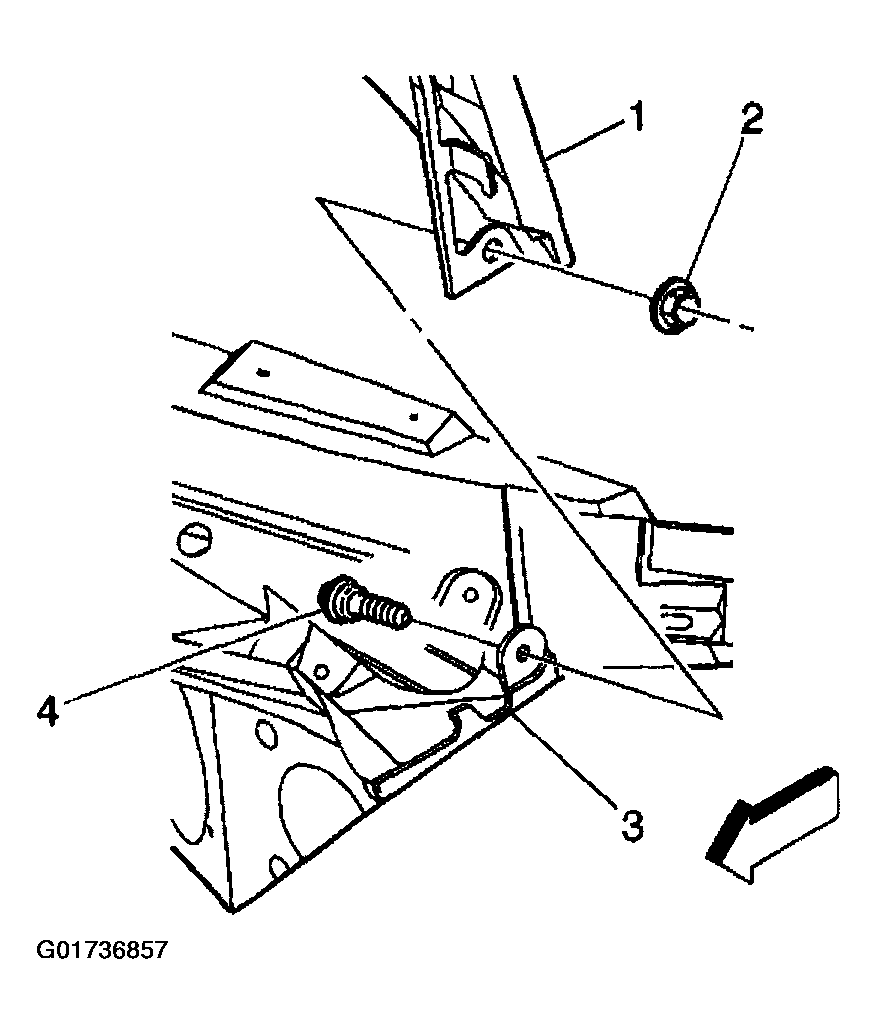

    Fig 1: Removing Pivot Bolts & Nuts From Hinge
    G01736857Courtesy of GENERAL MOTORS CORP.
