Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the hood.
  2. Mark the location of the hood latch and the fasteners, with a grease pencil.
  3. Remove the bolts retaining the hood latch to the radiator support (2).
  4. Remove the hood latch from the radiator support.
  5. Remove the hood release cable from the hood latch (4).

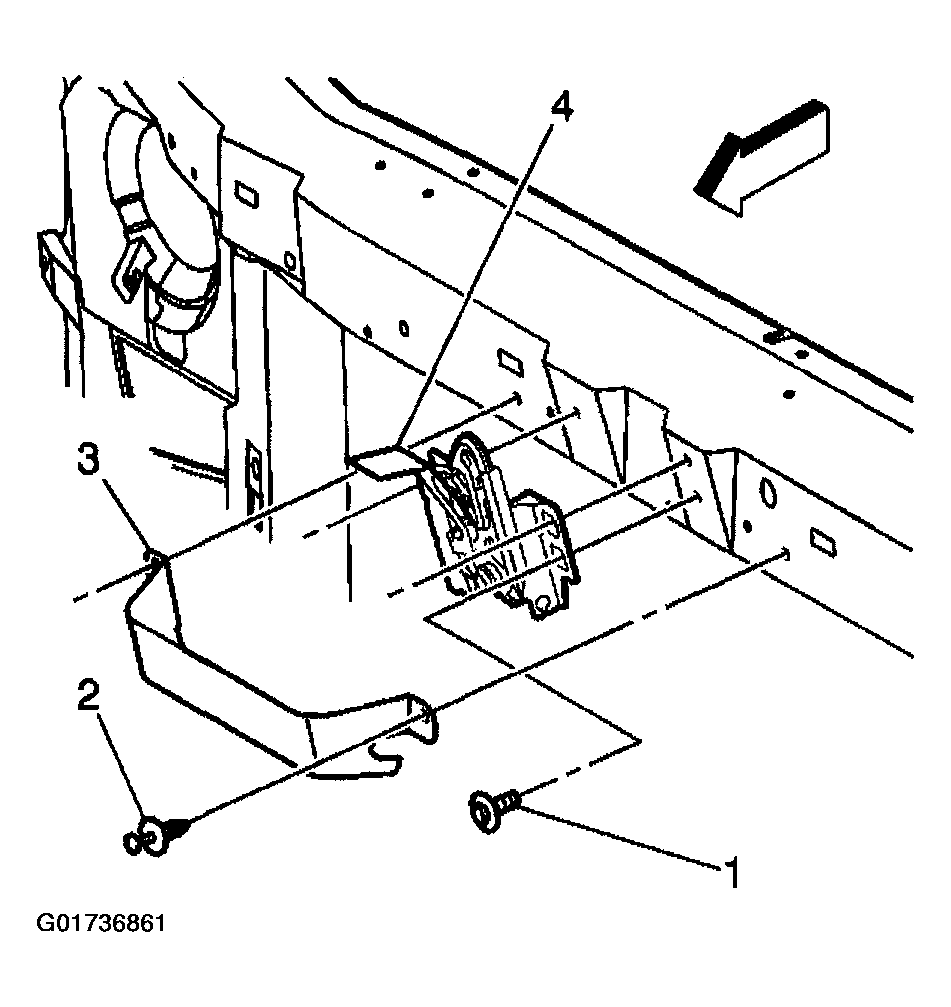

    Fig 1: Removing Bolts & Hood Release Cable
    G01736861Courtesy of GENERAL MOTORS CORP.
