Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hood latch cover (3) to the radiator support.
  2. Install the push-pin retainers in order to retain the hood latch cover (3).
  3. Install the grille. Refer to GRILLE REPLACEMENT .
  4. Close the hood.

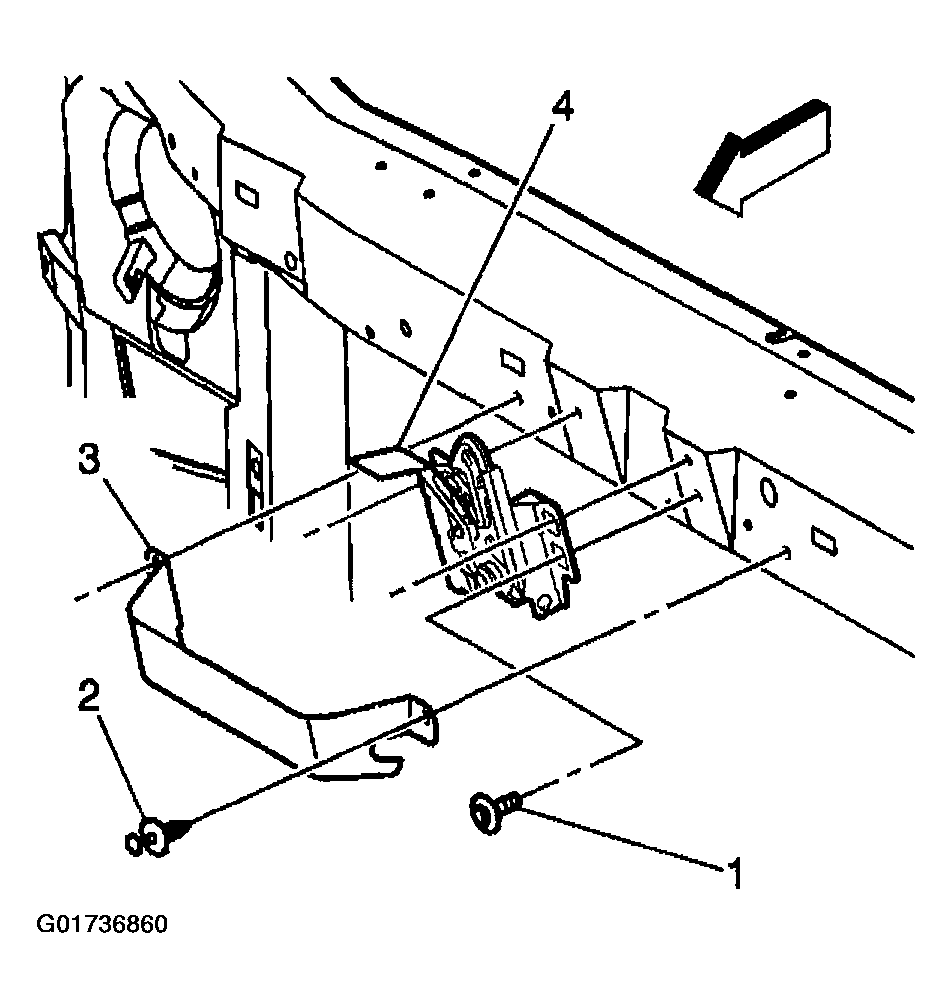

    Fig 1: Installing Hood Latch Cover
    G01736860Courtesy of GENERAL MOTORS CORP.
