Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the hood.
  2. Disconnect the electrical connector for the underhood lamp.
  3. Remove the underhood lamp harness and the retainers from the hood. Refer to UNDERHOOD LAMP REPLACEMENT (BASE) or UNDERHOOD LAMP REPLACEMENT (RETRACTABLE) .
  4. Remove the hood insulator retainers.
  5. Remove the insulator from the hood (1).

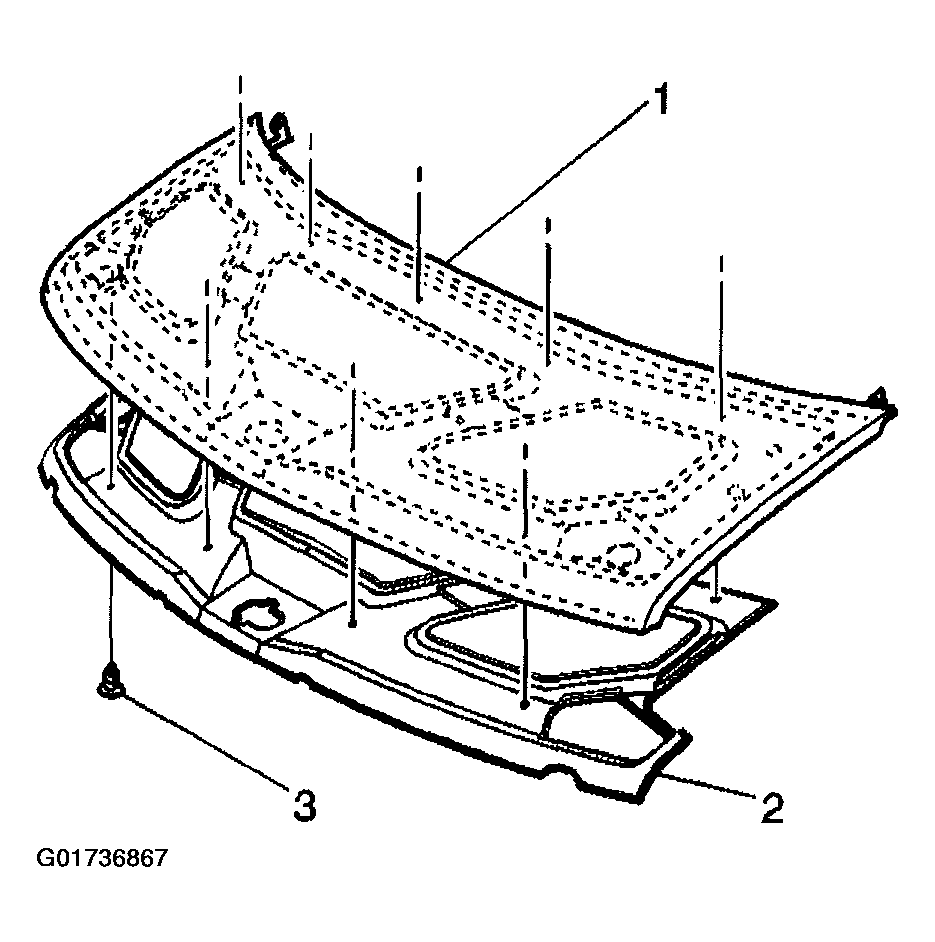

    Fig 1: Removing Insulator From Hood
    G01736867Courtesy of GENERAL MOTORS CORP.
