Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the hood. Use an alternate rod in order to support the hood.
  2. Remove the bolt (1) retaining the hood support rod (2) to the vehicle.
  3. Remove the support rod (2) from the vehicle.

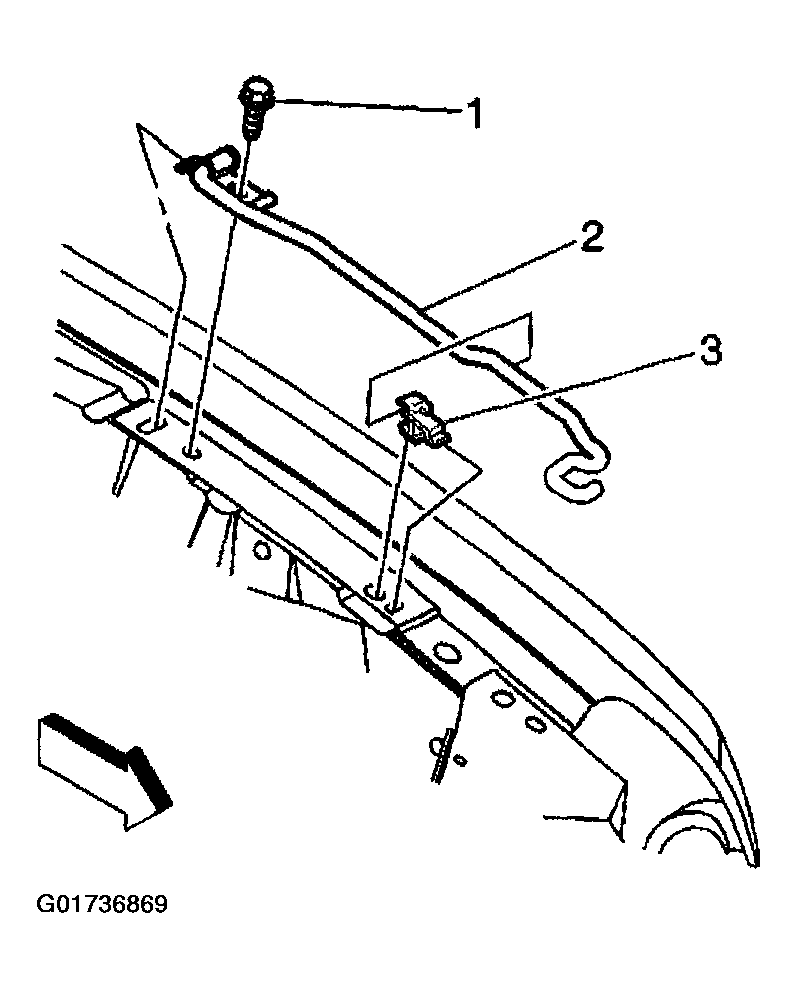

    Fig 1: Removing Bolt & Support Rod
    G01736869Courtesy of GENERAL MOTORS CORP.
