Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place a protective covering at the top of the fender.
  2. Remove the upper fender filler panel applique. Refer to Filler Panel Applique Replace - Upper Front Fender .
  3. Remove the screws (3) retaining the upper filler panel (4) to the body.
  4. Remove the upper filler panel (4) from the retaining clips.
  5. Remove the upper filler panel (4) from the vehicle.

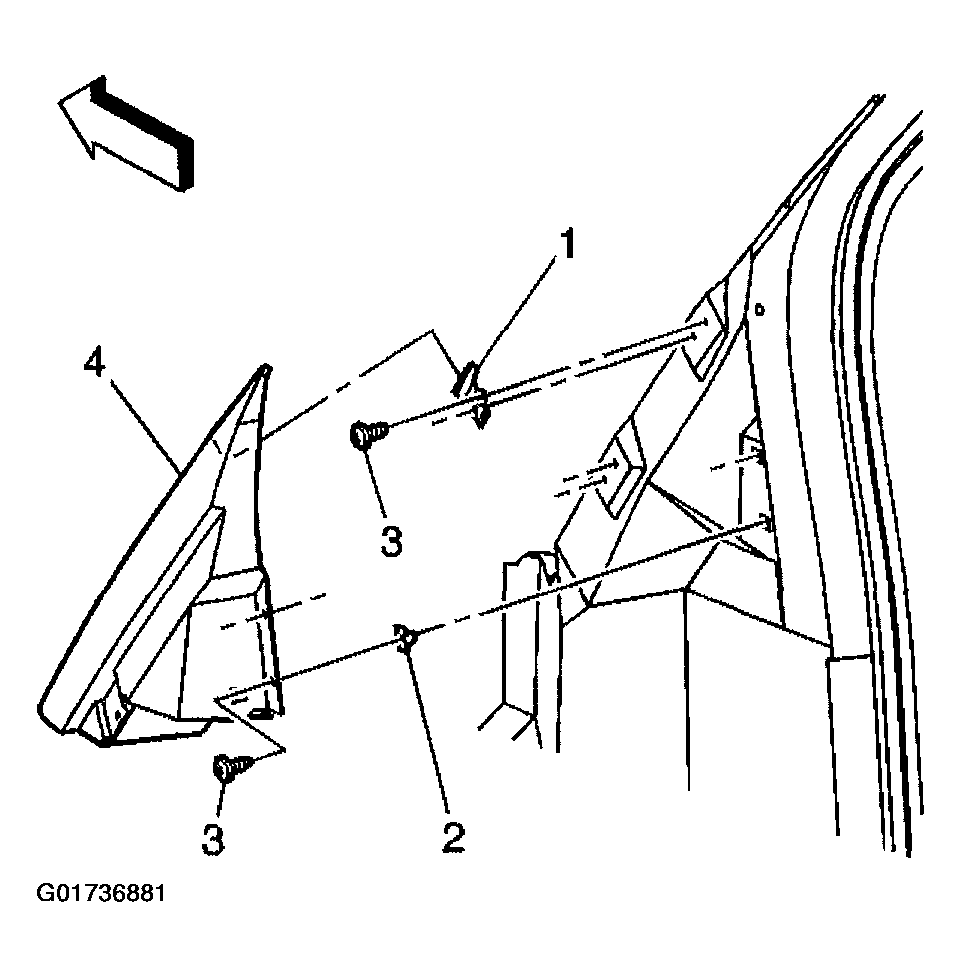

    Fig 1: Removing Upper Filler Panel
    G01736881Courtesy of GENERAL MOTORS CORP.
