Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the door.
  2. Remove the screws (3) retaining the applique (2) to the filler panel.
  3. Pull the applique (2) away from the filler panel in order to release the retainer (4).
  4. Remove the applique (2) from the vehicle.

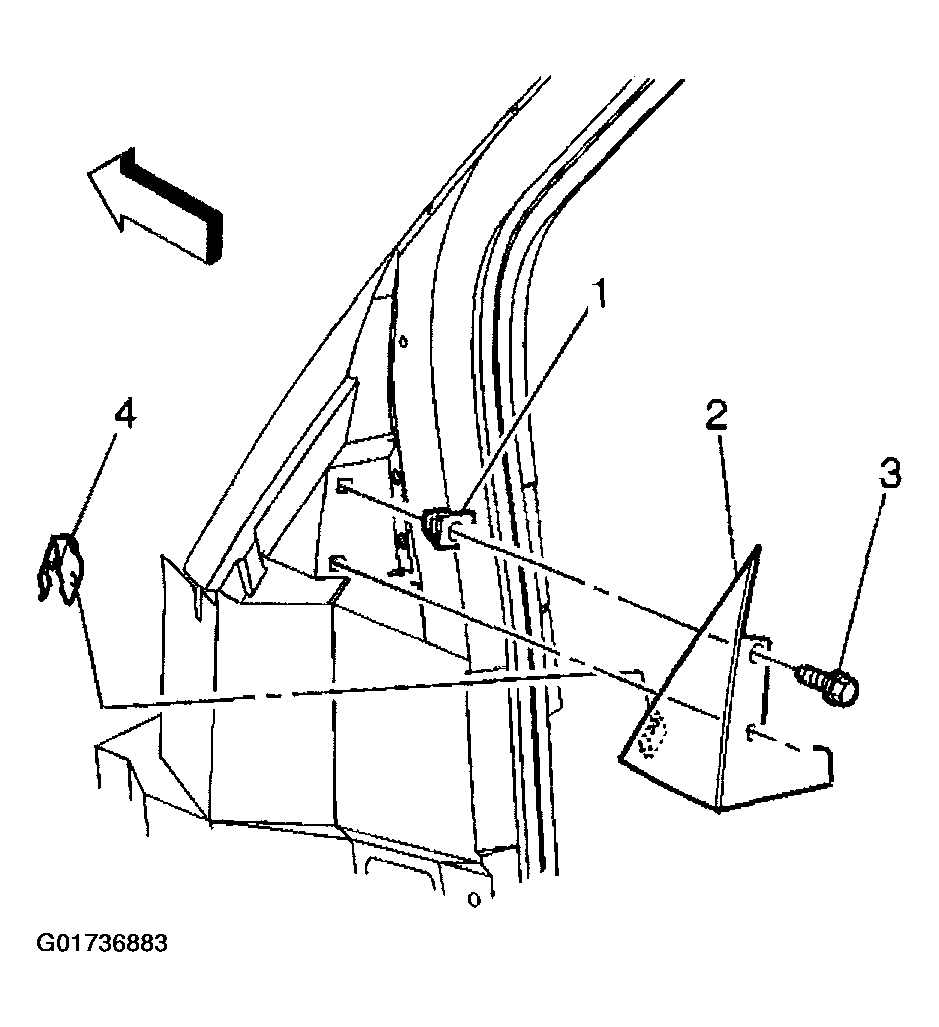

    Fig 1: Removing Upper Front Fender Filler Panel Applique
    G01736883Courtesy of GENERAL MOTORS CORP.
