Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the grille from the vehicle. Refer to GRILLE REPLACEMENT .
  2. Remove the push-pin (2) retaining the front bumper filler (1) to the radiator support.
  3. Remove the front bumper filler (1) from the vehicle.

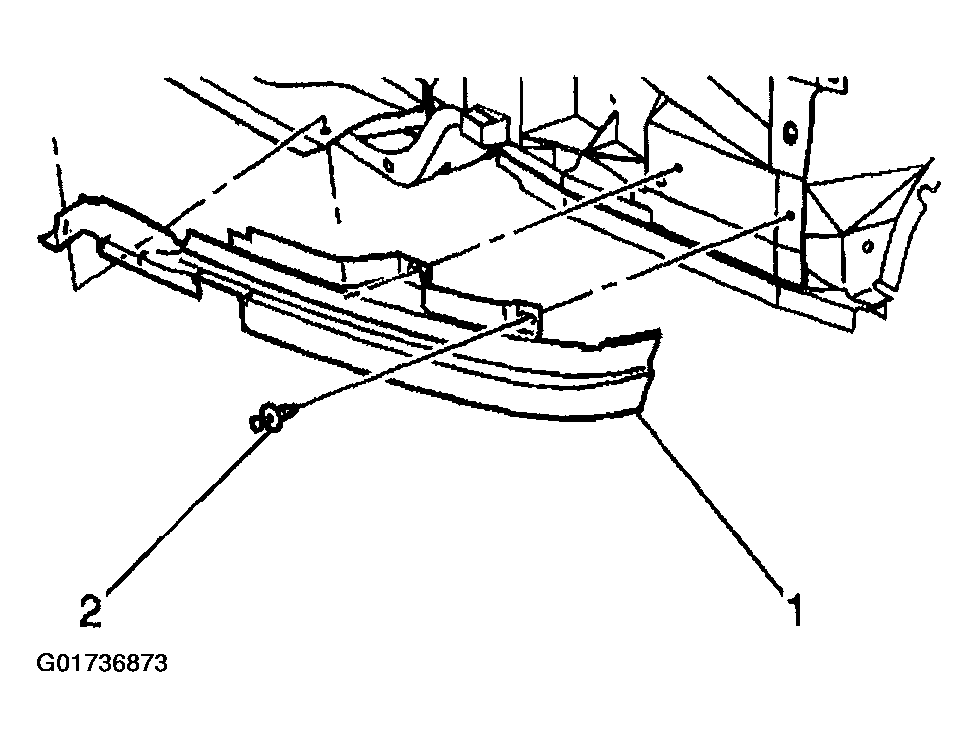

    Fig 1: Removing Front Bumper Filler
    G01736873Courtesy of GENERAL MOTORS CORP.
