Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front bumper filler (1) to the vehicle.
  2. Install the push pin rivets (2) in order to retain the front bumper filler (1) to the radiator support.
  3. Install the radiator grille to the vehicle. Refer to GRILLE REPLACEMENT .

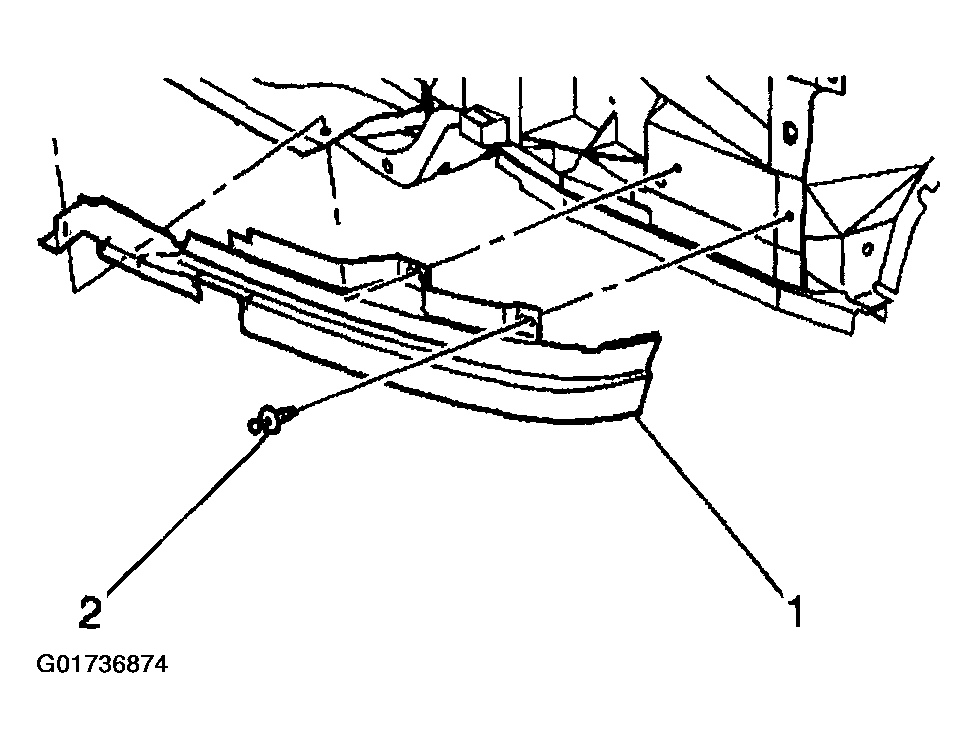

    Fig 1: Installing Front Bumper Filler
    G01736874Courtesy of GENERAL MOTORS CORP.
