Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle with suitable safety stands. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the auxiliary oil cooler lines from the oil cooler, if equipped. Refer to ENGINE OIL COOLER HOSE/PIPE REPLACEMENT .
  3. Remove the bolts securing the air baffle to the radiator support.
  4. Remove the air baffle from the vehicle.

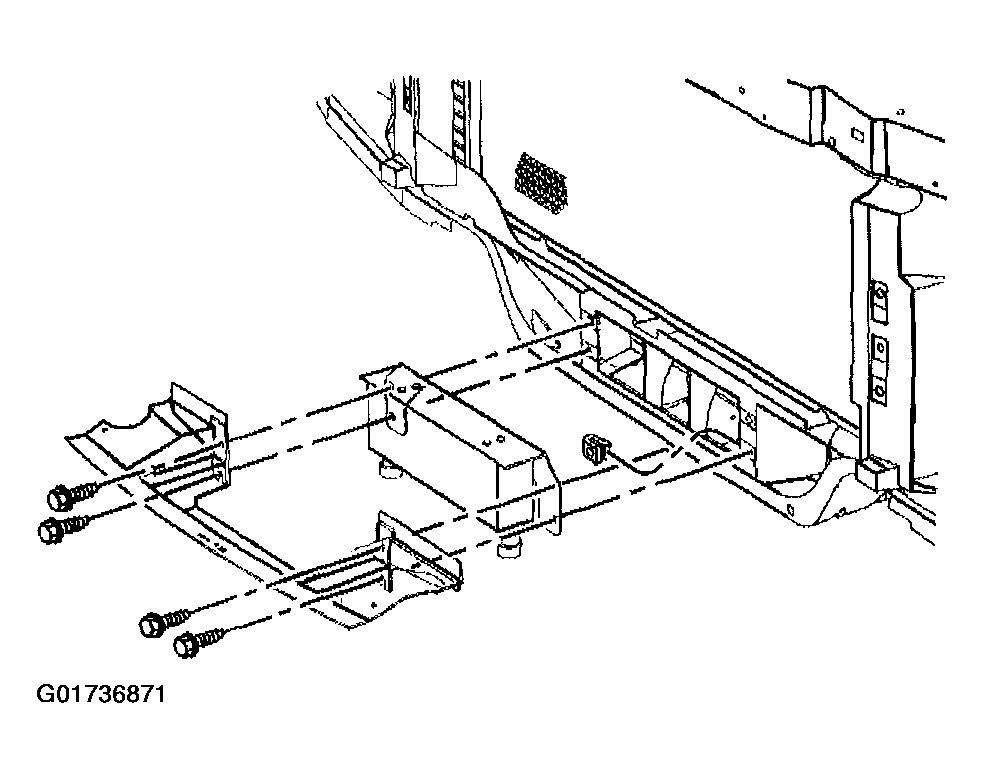

    Fig 1: Removing Air Baffle
    G01736871Courtesy of GENERAL MOTORS CORP.
