Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air baffle to the vehicle.
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the air baffle retaining bolts to the radiator support.

    Tighten

    Tighten the bolts to 12 N.m (106 lb in).

  3. Install the auxiliary oil cooler lines to the oil cooler, if equipped. Refer to ENGINE OIL COOLER HOSE/PIPE REPLACEMENT .
  4. Remove the safety stands.
  5. Lower the vehicle.

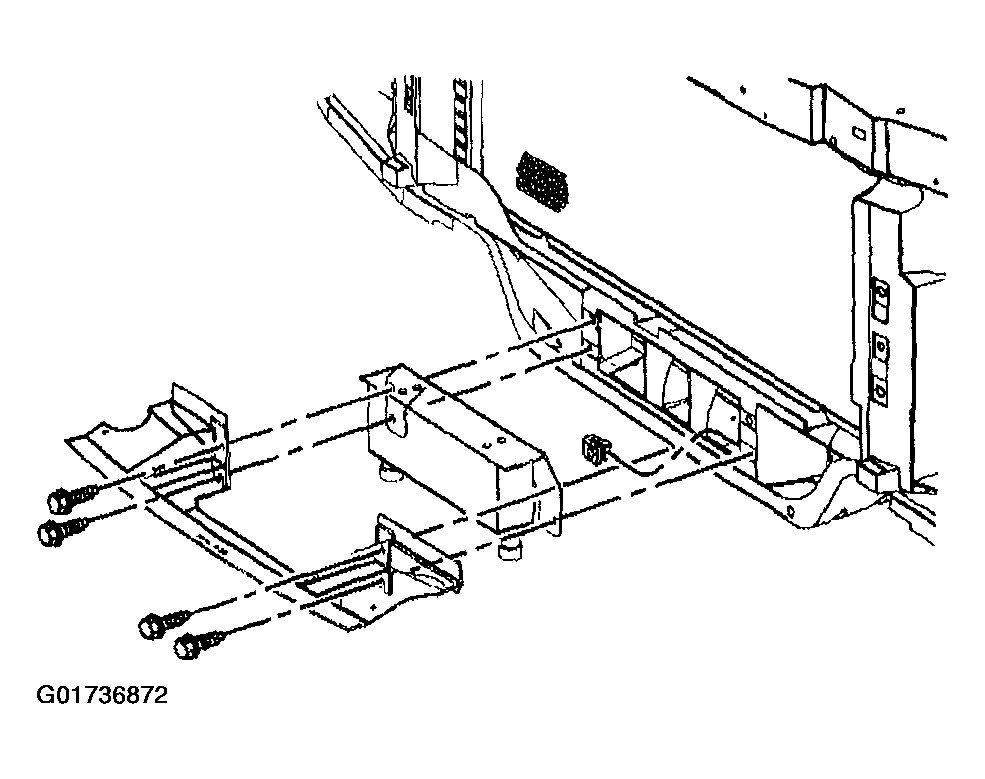

    Fig 1: Installing Air Baffle
    G01736872Courtesy of GENERAL MOTORS CORP.
