Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the hood.
  2. Remove the screws (3) retaining the air inlet grille panels (1, 2) to the cowl vent.
  3. Close the hood.
  4. Remove the wiper arms from the vehicle. Refer to WIPER ARM .
  5. Disconnect the washer hoses from the air inlet grille panel.
  6. Remove the air inlet grille panels (1, 2) from the vehicle.

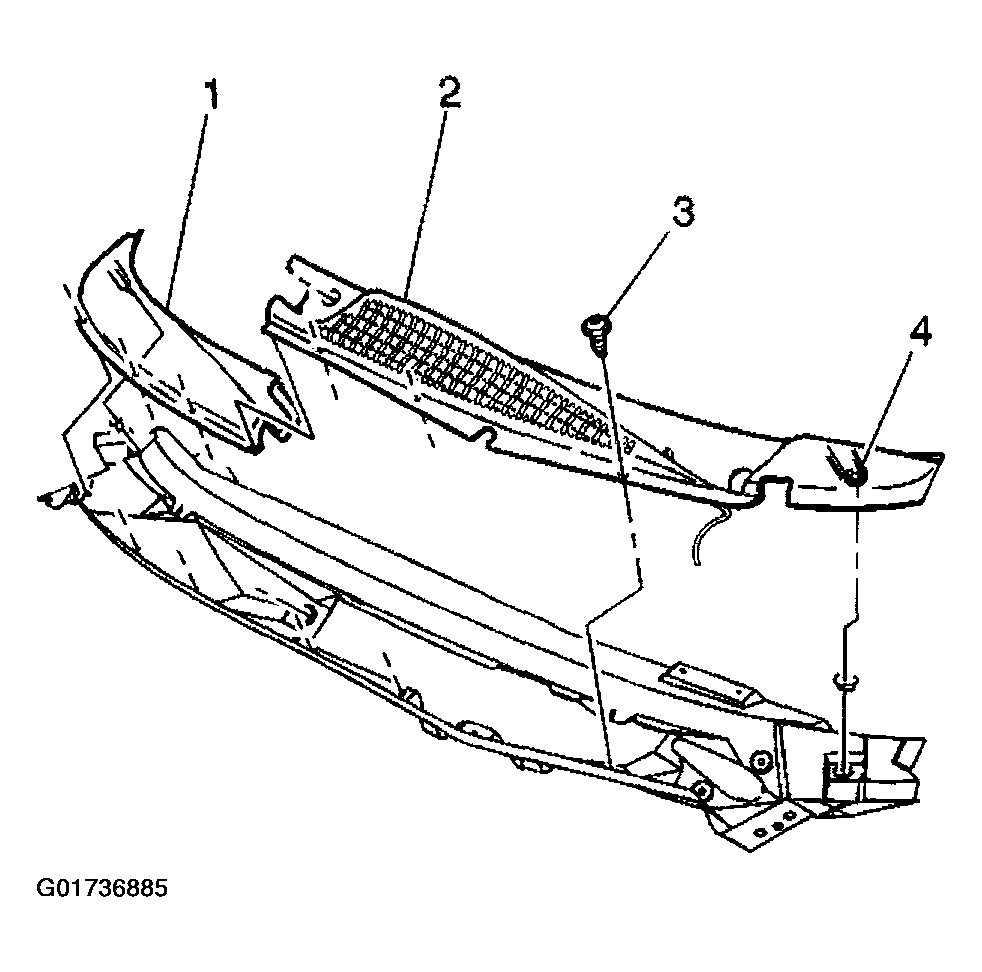

    Fig 1: Removing Air Inlet Grille Panels
    G01736885Courtesy of GENERAL MOTORS CORP.
