Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air inlet grille panels (1, 2) to the vehicle.
  2. Align the retainers (4) in the body with the tabs on the grille panel (1, 2). Press the retainers into place.
  3. Connect the washer hoses to the air inlet grille panel.
  4. Install the wiper arms to the vehicle. Refer toWIPER ARM .
  5. Open the hood.
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  6. Install the screws (3) in order to retain the air inlet grille panels (1, 2) to the cowl vent.

    Tighten

    Tighten the screws to 11 N.m (97 lb in).

  7. Close the hood

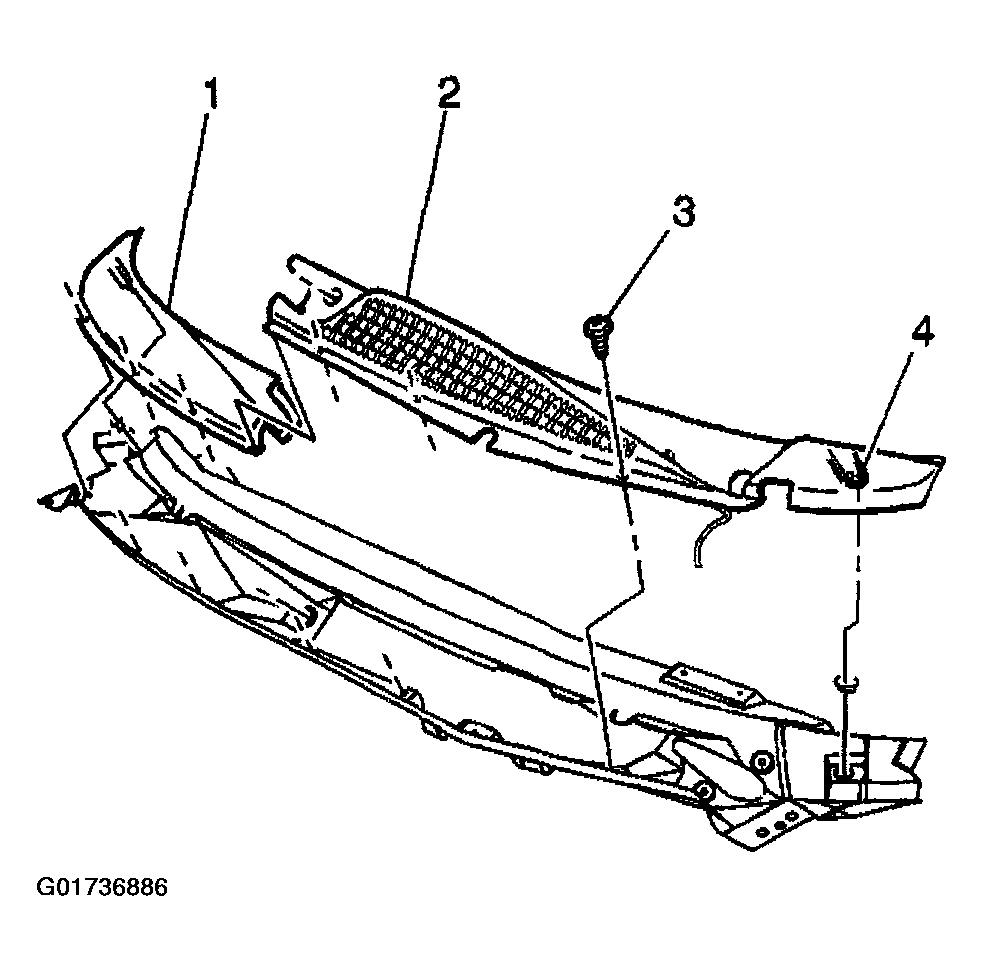

    Fig 1: Installing Air Inlet Grille Panels
    G01736886Courtesy of GENERAL MOTORS CORP.
