Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure the seat is in the full upward position.
  2. Remove the screws retaining the seat back release handle and the seat recliner handle and remove the handles.
  3. Remove the remaining screws retaining the trim panel to the seat.
  4. Remove the trim panel from the seat.

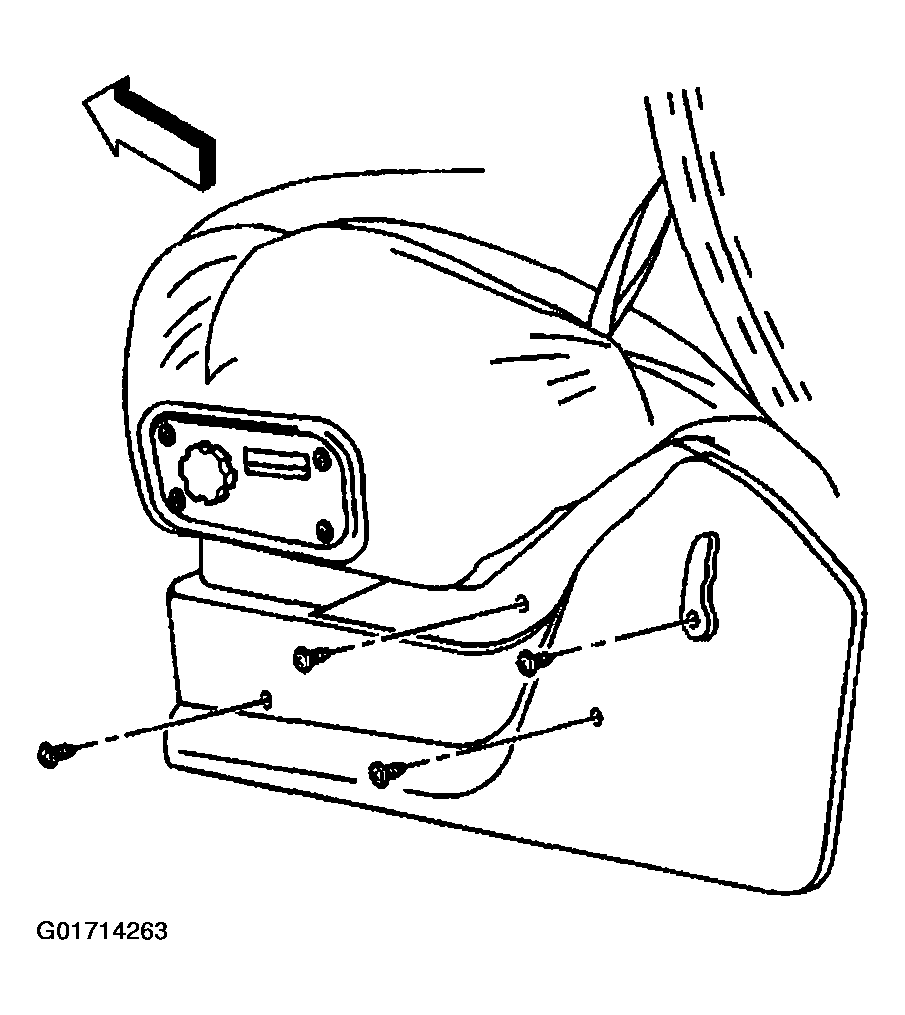

    Fig 1: Trim Panel
    G01714263Courtesy of GENERAL MOTORS CORP.
