Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lumbar knob, if equipped. Refer to Lumbar Support Knob Replacement .
  2. Remove the power seat switch bezel from the seat. Refer to Seat Switch Bezel Replacement .

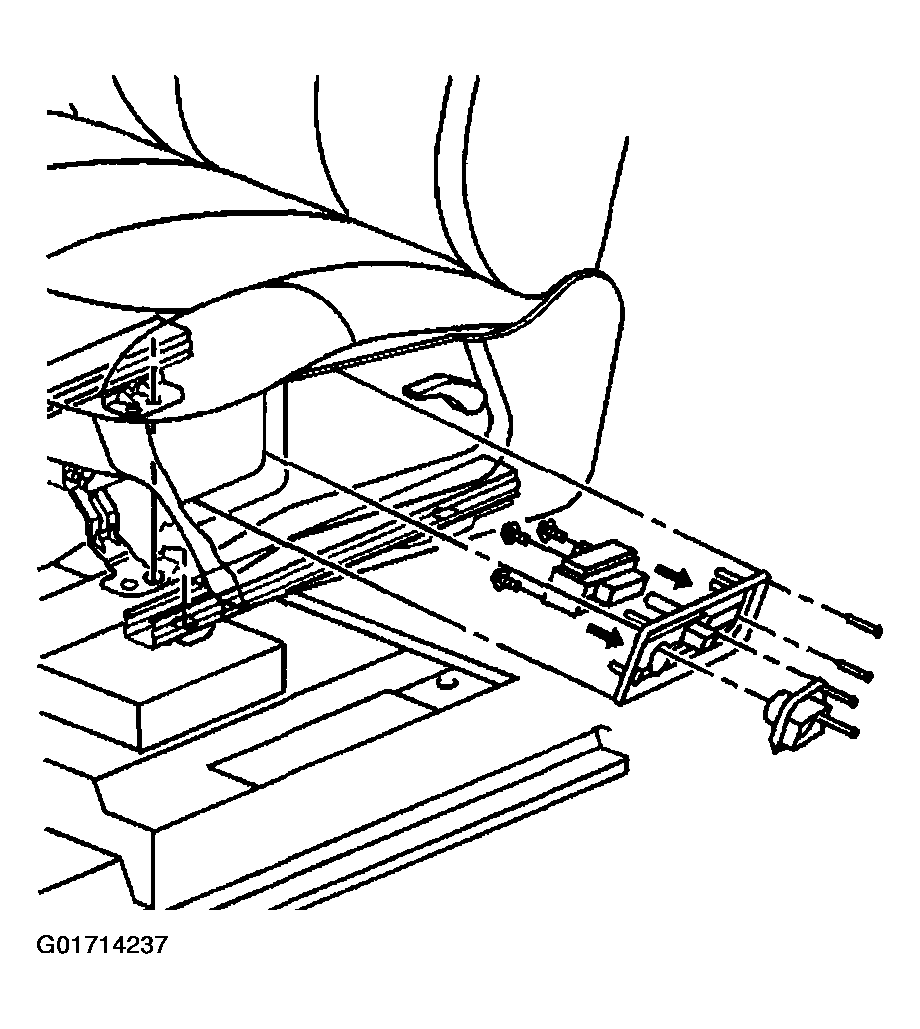

    Fig 1: Power Seat Switch Replacement
    G01714237Courtesy of GENERAL MOTORS CORP.
  3. Remove the power seat switch to bezel screws.
  4. Remove the power seat switch.

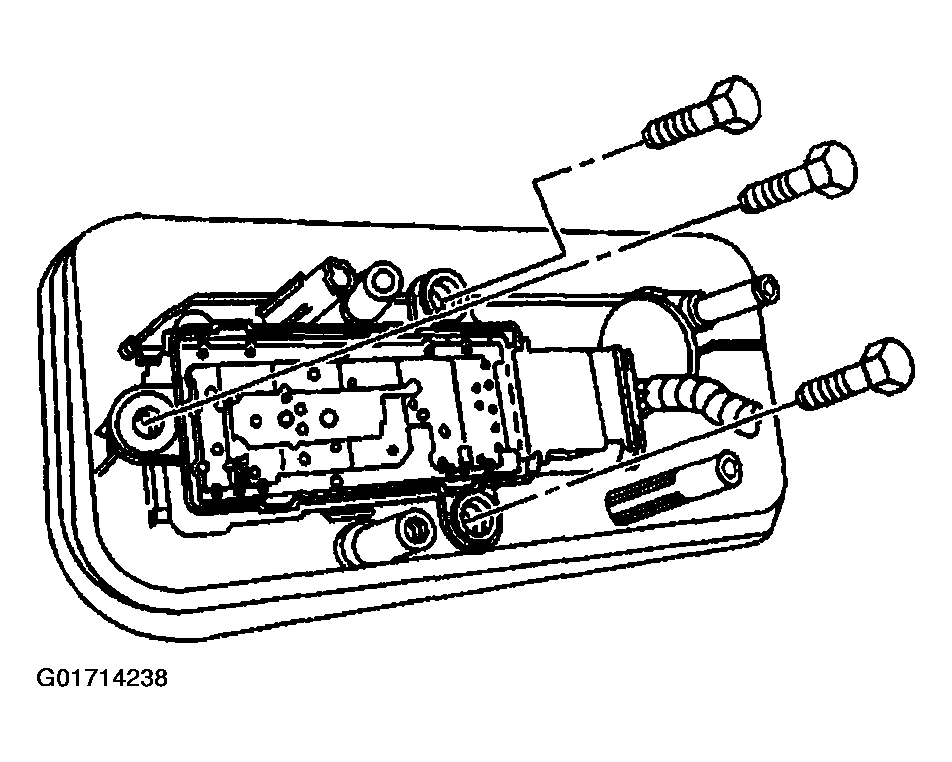

    Fig 2: Removing Power Seat Switch
    G01714238Courtesy of GENERAL MOTORS CORP.
