Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lumbar knob, if equipped. Refer to Lumbar Support Knob Replacement .
  2. Remove the screws retaining the power seat switch bezel.
  3. Disconnect the electrical connectors.
  4. Remove the lumbar support switch.
  5. Remove the power seat adjuster switch assembly.

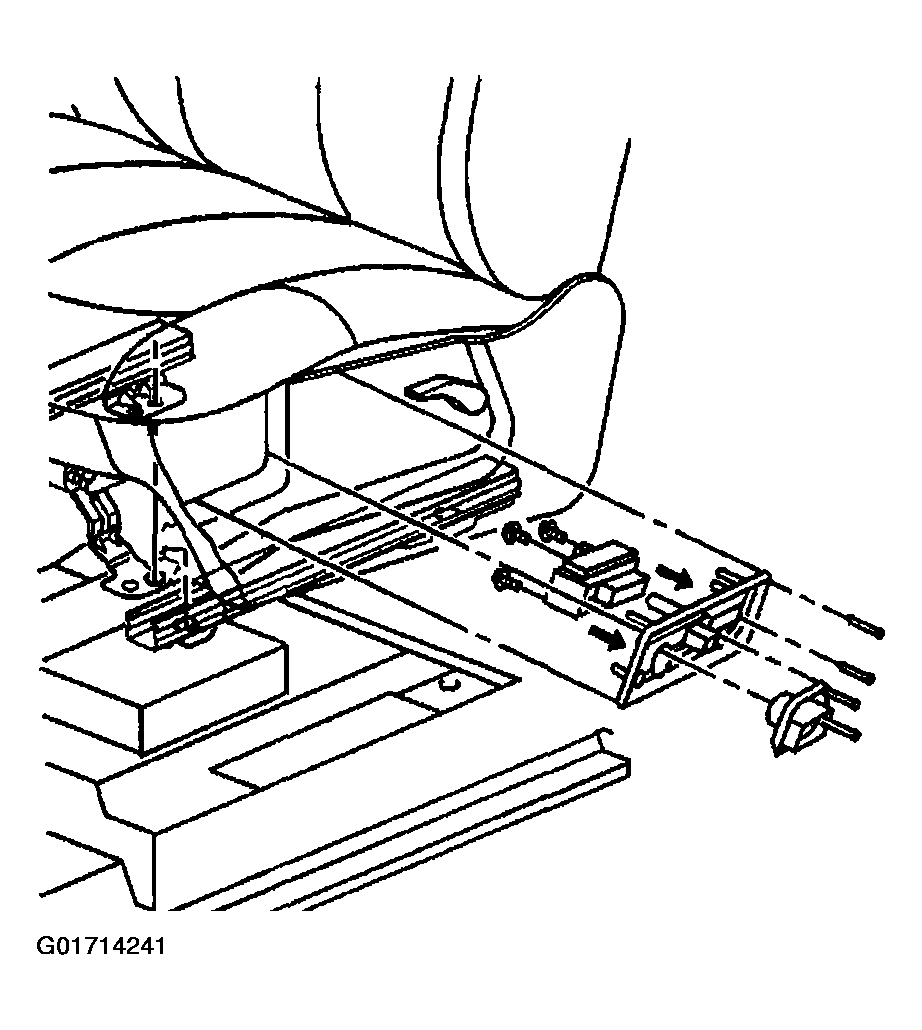

    Fig 1: Power Seat Adjuster Switch Assembly
    G01714241Courtesy of GENERAL MOTORS CORP.
