Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front and the rear leg trim covers.
  2. Remove the seat back recliner handle screw from the trim panel, if equipped.
  3. Remove the jack assembly, if required.
  4. Remove the covers in order to access the seat bolts.
  5. Disconnect the electrical connectors, if equipped.
  6. Remove the seat retaining bolts.
  7. Remove the seat from the vehicle.

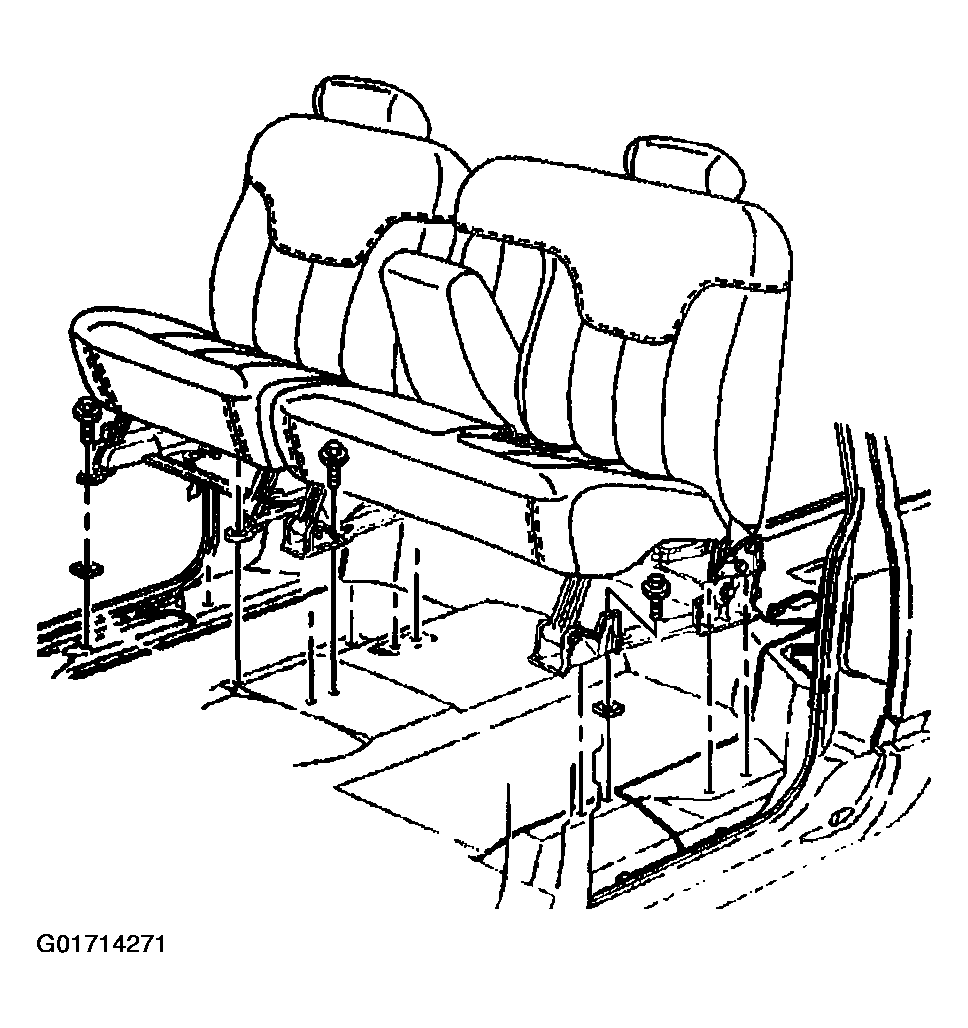

    Fig 1: Removing Seat From Vehicle
    G01714271Courtesy of GENERAL MOTORS CORP.
