Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. If equipped with side air bags, disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Move the seat to the full rearward position. Remove the front seat nut cover (3), if equipped.
  3. Remove the seat retaining front nuts (2).
  4. Move the seat to the full forward position in order to remove the seat retaining rear bolts (1).
  5. Disconnect the electrical harness, if equipped.
  6. Remove the seat from the vehicle.

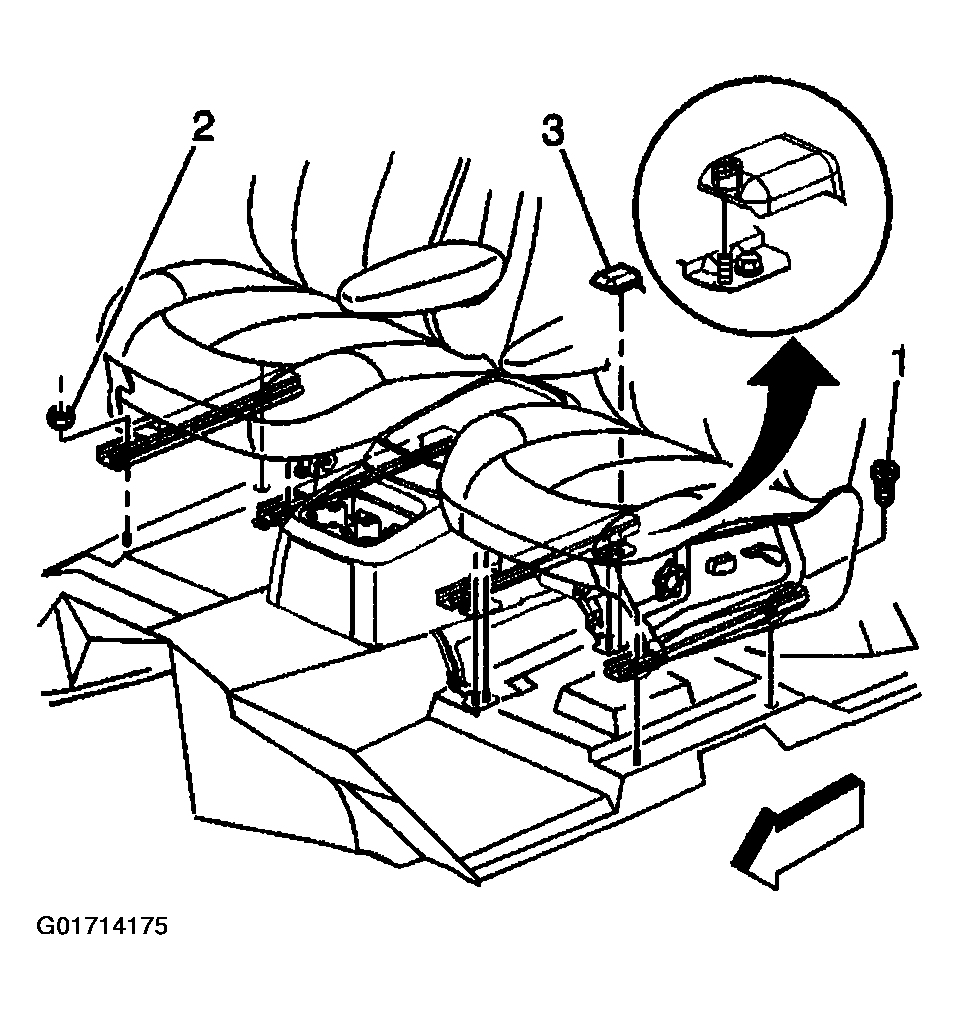

    Fig 1: Removing Seats
    G01714175Courtesy of GENERAL MOTORS CORP.
