Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Remove the seat trim panel. Refer to Trim Panel Replacement - Front Seat .
Remove the outboard seat belt anchor nut. Pull the belt through the seat cushion.

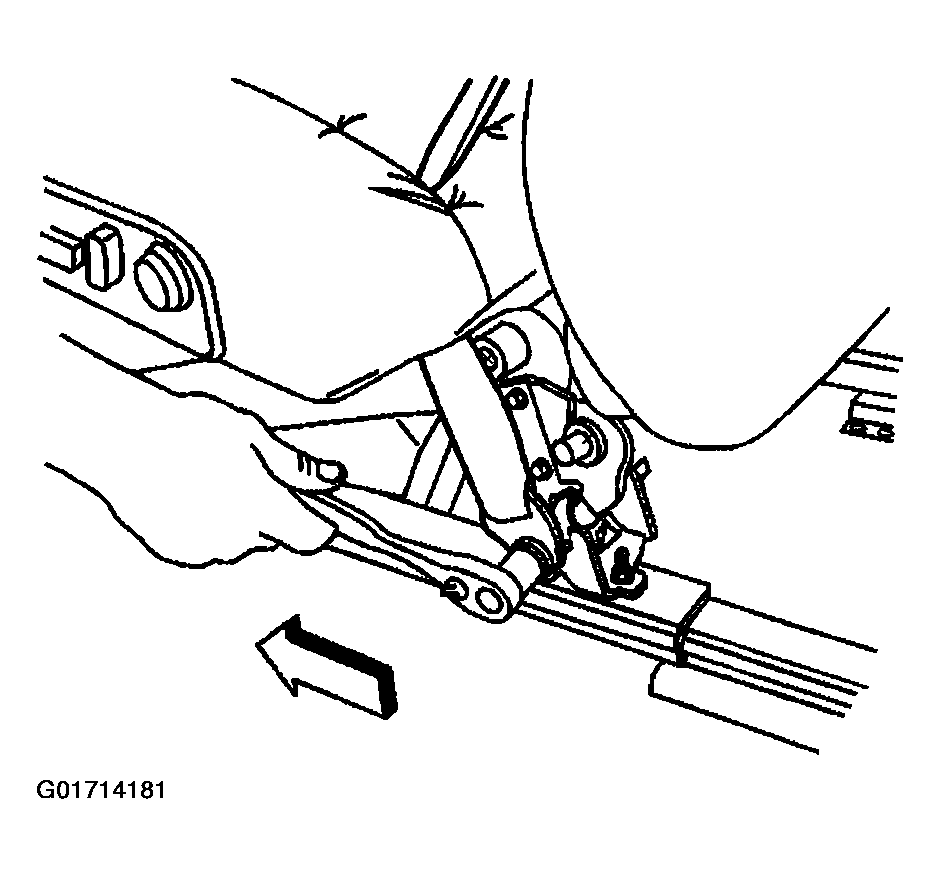

Fig 1: Outboard Seat Belt Anchor
Courtesy of GENERAL MOTORS CORP.
Remove the front nuts (2) on the underside of the seat cushion.

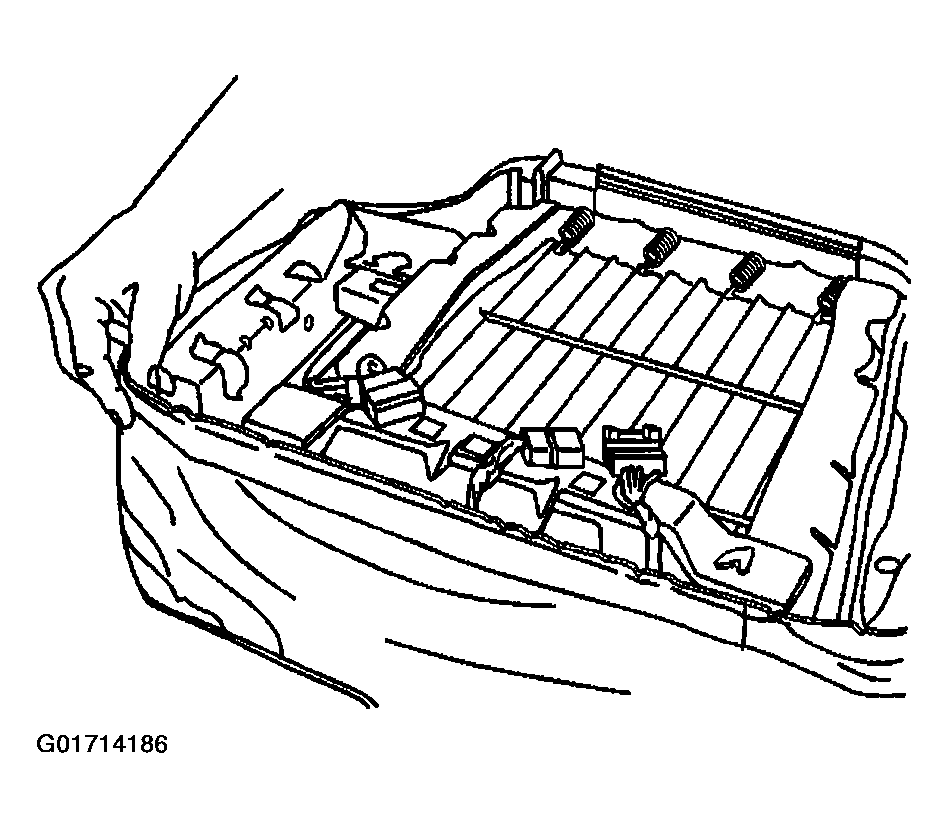

Fig 2: Underside Of Seat Cushion
Courtesy of GENERAL MOTORS CORP.
Unsnap the lumbar cable (6) (disconnect the lumbar wire harness if equipped with power lumbar).
Disconnect the electrical connectors.

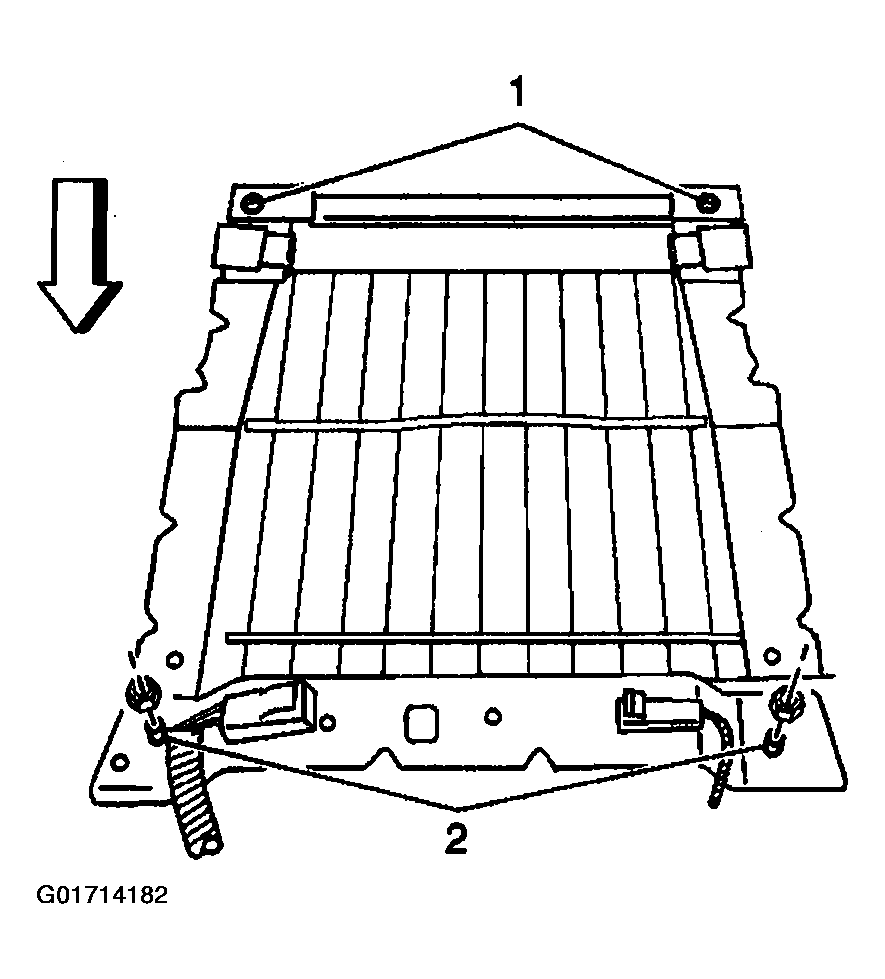

Fig 3: Lumbar Cable
Courtesy of GENERAL MOTORS CORP.
Lift the seat cushion up off the rear plastic holders (1) on the underside of the seat cushion, and pull forward.
Remove the seat switch bezel. Refer to Seat Switch Bezel Replacement .

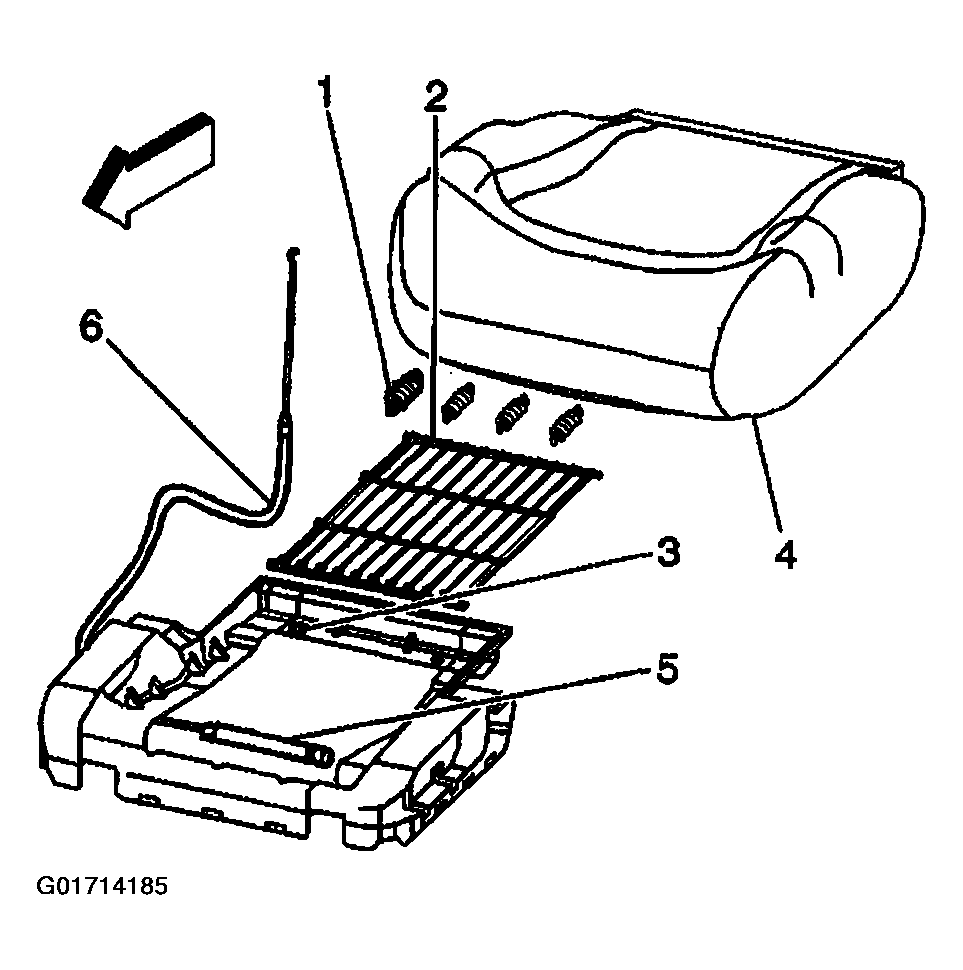

Remove the lumbar actuator (5).

Fig 4: Lumbar Actuator
Courtesy of GENERAL MOTORS CORP.
Unclip the seat trim cover from the seat cushion frame.

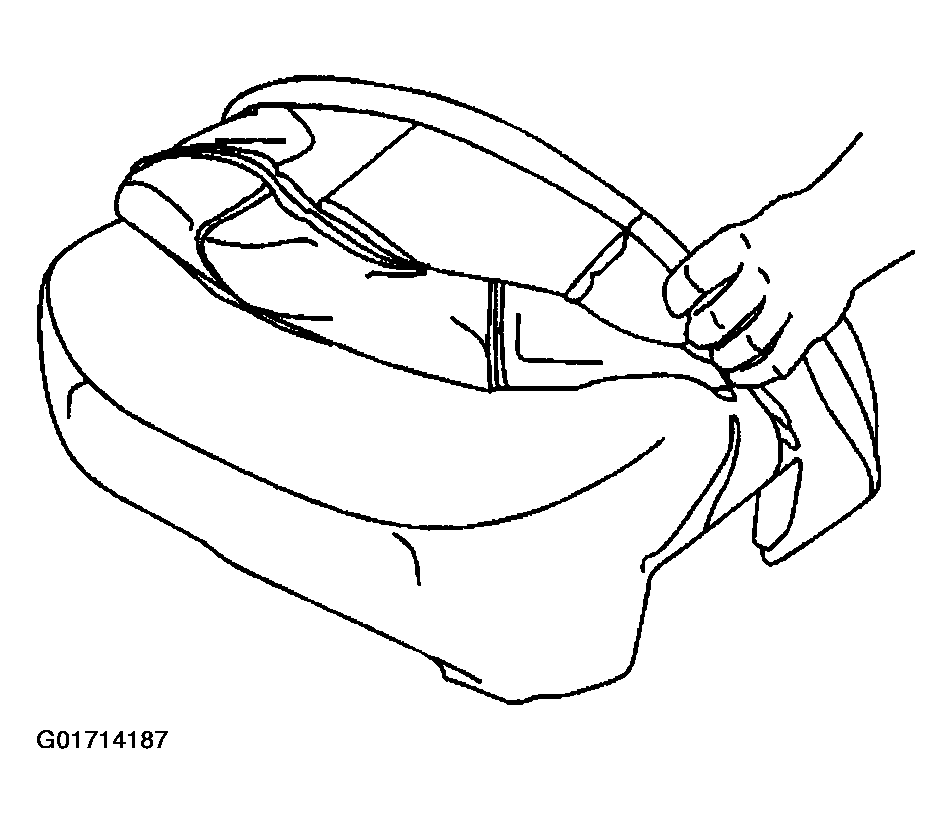

Fig 5: Removing Seat Trim Cover From Seat Cushion Frame
Courtesy of GENERAL MOTORS CORP.
Using a side motion, carefully separate the seat cushion trim cover from the seat cushion pad.
Remove the pad from the seat cushion frame.

Fig 6: Removing Pad From Seat Cushion Frame

Courtesy of GENERAL MOTORS CORP.

Remove the seat cushion heater element, if equipped. Refer to Seat Cushion Heater Element Replacement - Front .
