Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat trim panel. Refer to Trim Panel Replacement - Front Seat .
  2. Remove the seat cushion trim cover. Refer to Seat Cushion Trim Cover & Pad Replacement .
  3. Peel the seat cushion heater off of the pad.
  4. Disconnect the seat cushion heater wiring harness.

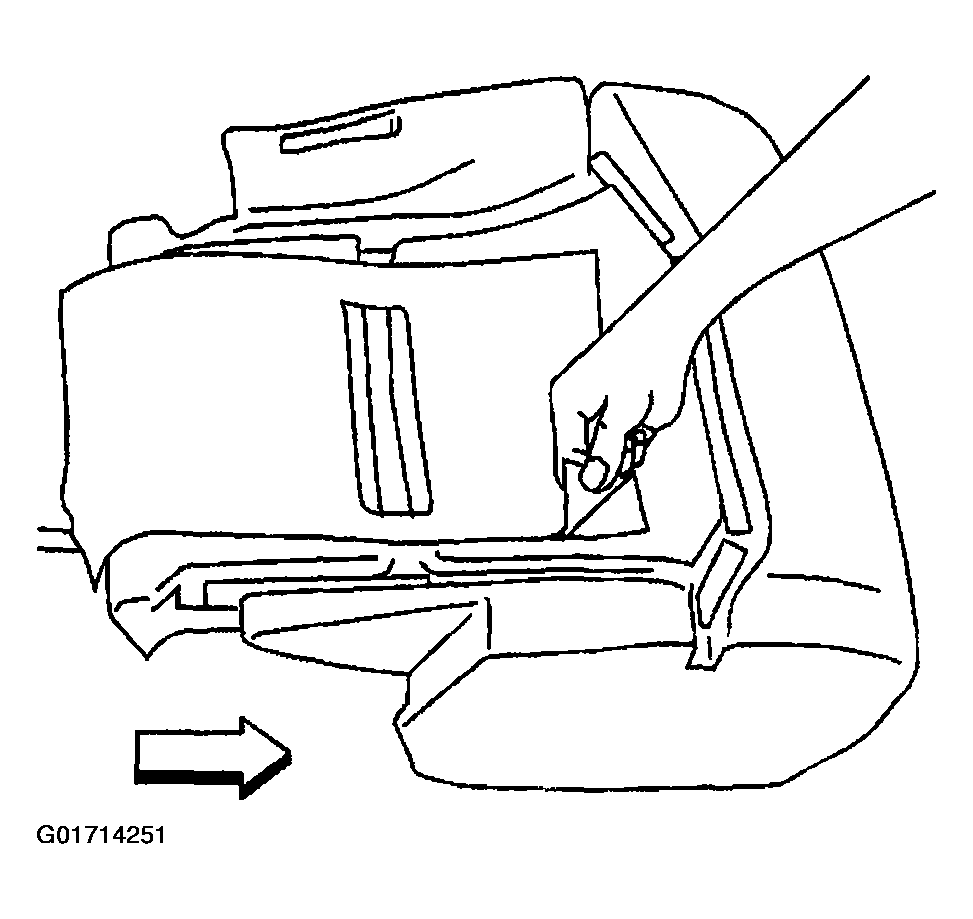

    Fig 1: Seat Cushion Heater
    G01714251Courtesy of GENERAL MOTORS CORP.
