Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat cushion trim cover (8) and the pad (7). Refer to Seat Cushion Cover & Pad Replacement - Rear .

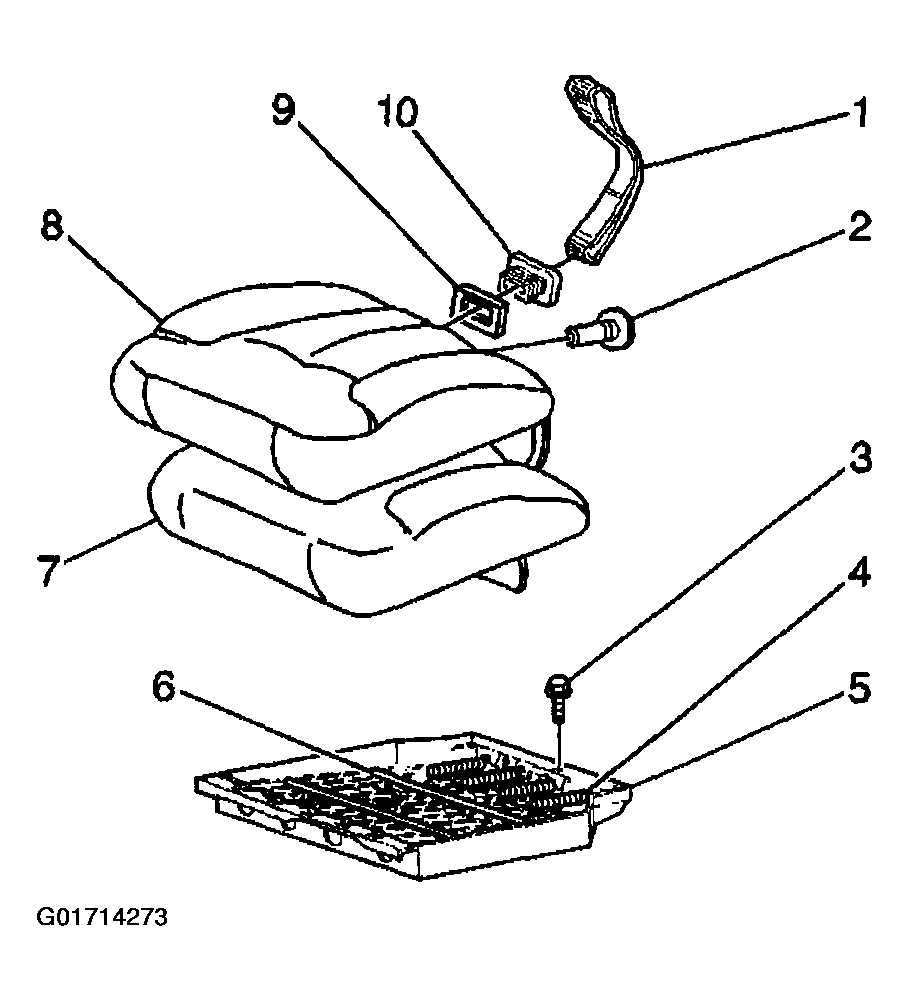

    Fig 1: Seat Cushion Frame Replacement - Rear
    G01714273Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolts from the hinge assembly, if equipped with folding seats.
  3. Remove the seat cushion frame (5).

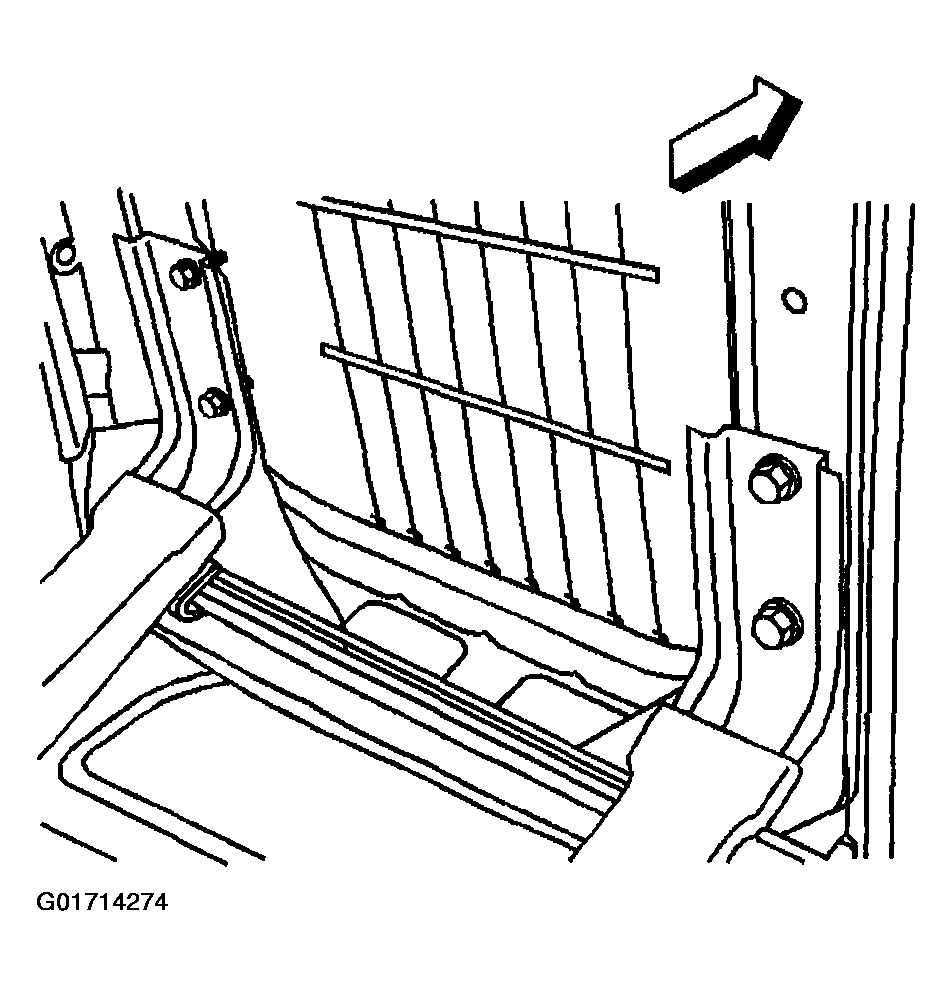

    Fig 2: Seat Cushion Frame
    G01714274Courtesy of GENERAL MOTORS CORP.
