Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat trim panel. Refer to Trim Panel Replacement - Front Seat .
  2. Remove the seat cushion trim cover and pad. Refer to Seat Cushion Trim Cover & Pad Replacement .
  3. Remove the following components from the seat cushion frame:
    • The frame springs (1)
    • The frame suspension (2)
    • The plastic retainers (3)
  4. Remove the seat cushion frame from the vehicle.

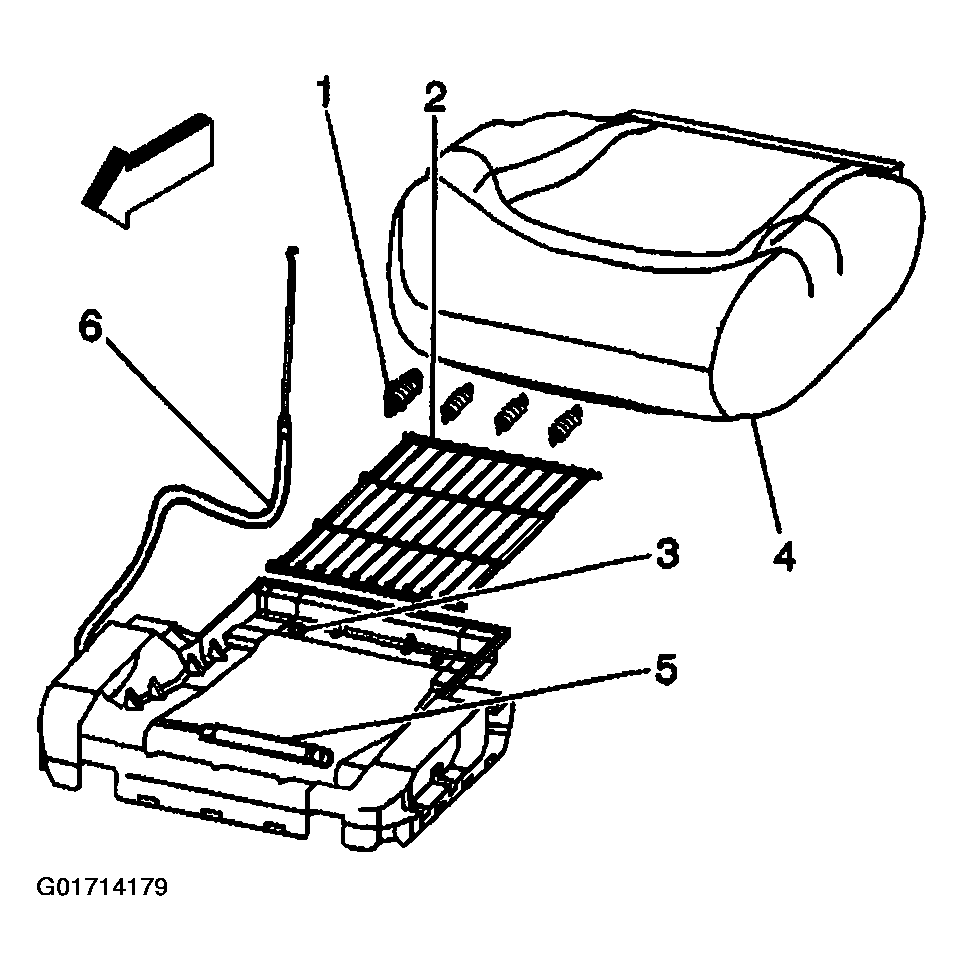

    Fig 1: Removing Seat Cushion Frame
    G01714179Courtesy of GENERAL MOTORS CORP.
