Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat from the vehicle. Refer to Seat Replacement - Rear (Extended Cab w/4th Door) , Seat Replacement - Rear (Extended Cab)  or Seat Replacement - Rear (60/40 Split)  .
  2. Remove the rear passenger seat riser.
  3. Remove the hog rings and/or the J-clips from the rear edge of the seat cushion cover (3).
  4. Disconnect the rear heater connector, if equipped.
  5. Remove the seat belt buckles, if required. Refer to SEAT BELT BUCKLE AND LATCH REPLACEMENT - REAR (EXTENDED CAB) or SEAT BELT BUCKLE AND LATCH REPLACEMENT REAR (CREW CAB) .

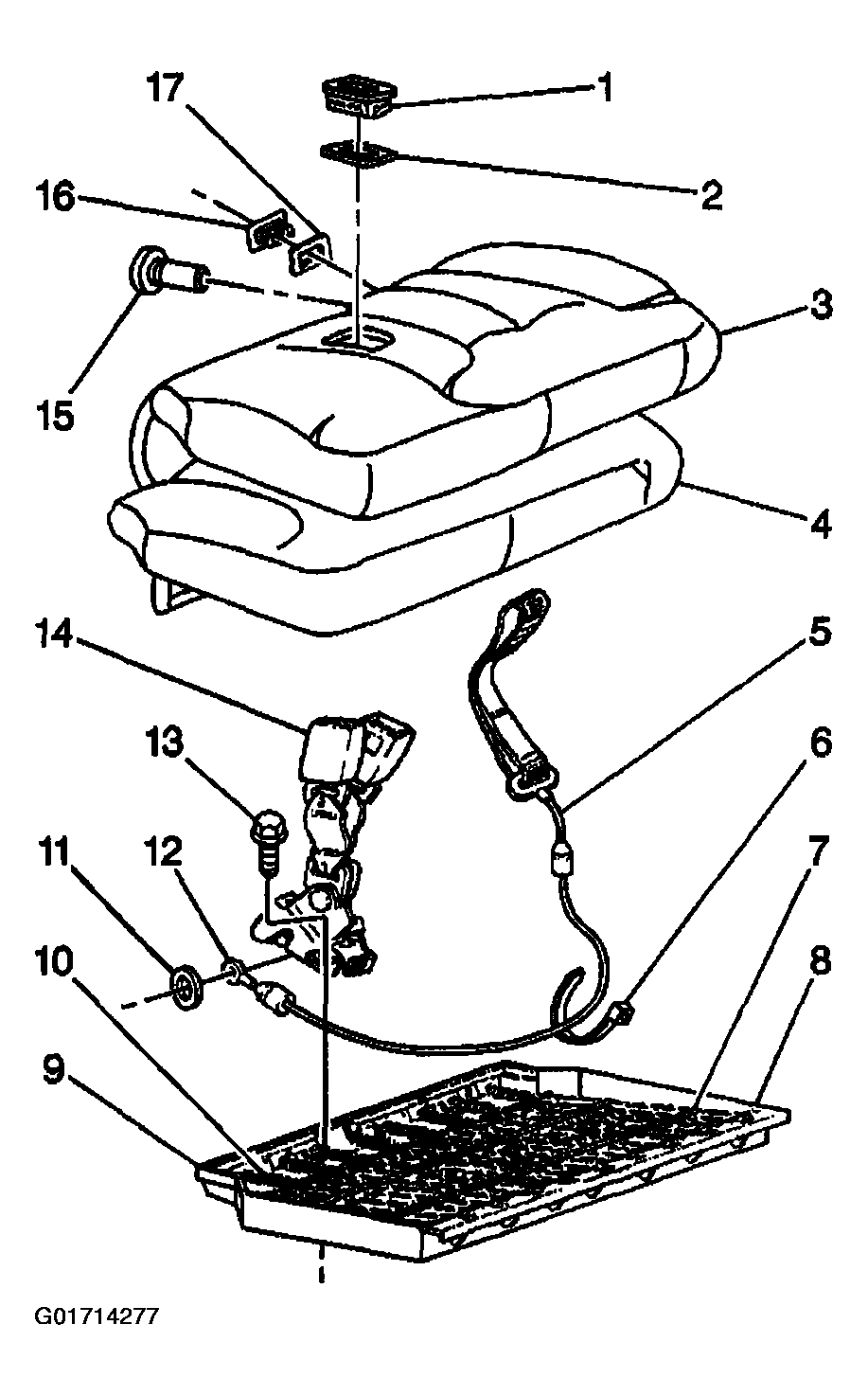

    Fig 1: Seat Cushion
    G01714277Courtesy of GENERAL MOTORS CORP.
  6. Remove all of the remaining hog rings, and/or the J-clips that are retaining the seat cushion cover (3) to the seat cushion frame (8).
  7. Release the hook, and the loop-strips that are retaining the seat cushion cover to the foam pad (4).
  8. Remove the center screw retaining the latch cover, if equipped.
  9. Remove the seat cushion cover from the foam pad.
