Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screw retaining the recliner handle to the trim panel.
  2. Remove the recliner handle.

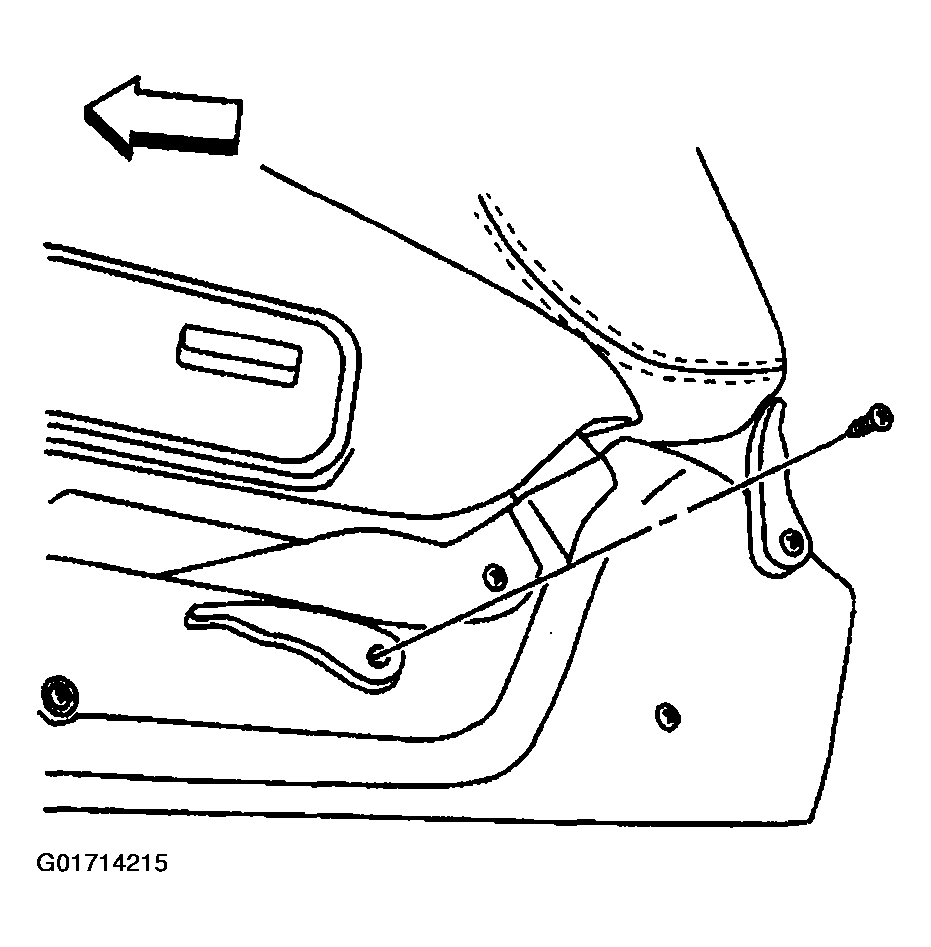

    Fig 1: Seat Back Recliner Handle Replacement - Front
    G01714215Courtesy of GENERAL MOTORS CORP.
