Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat from the vehicle. Refer to Seat Replacement - Front Bucket .
  2. Remove the seat trim panel. Refer to Trim Panel Replacement - Front Seat .
  3. Remove the seat cushion frame. Refer to Seat Cushion Frame Replacement - Front .
  4. Remove the seat back frame. Refer to Seat Back Frame Replacement - Front .
  5. Remove the outboard pivot bolt.

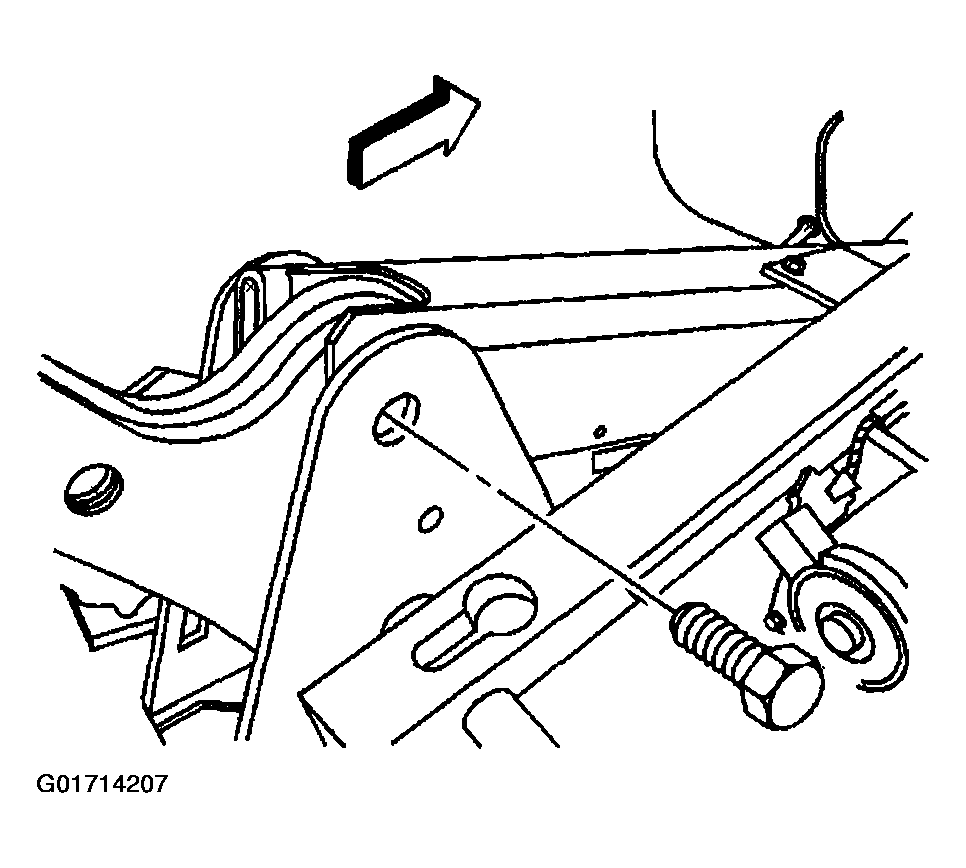

    Fig 1: Outboard Pivot Bolt
    G01714207Courtesy of GENERAL MOTORS CORP.
  6. Remove the bolts holding the seat back folding mechanism.

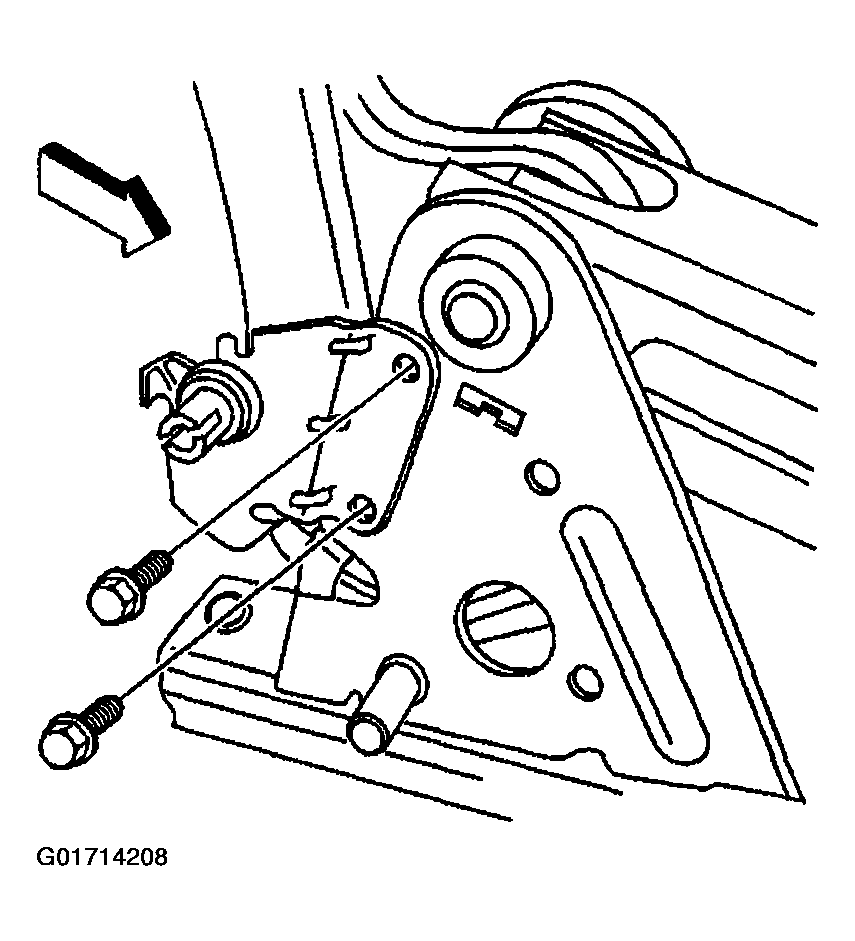

    Fig 2: Seat Back Folding Mechanism Bolt
    G01714208Courtesy of GENERAL MOTORS CORP.
  7. Unsnap the recliner cable (1) from the folding mechanism (3).
  8. Remove the front recliner attachment bolts (4).
  9. Remove the recliner screw (5).

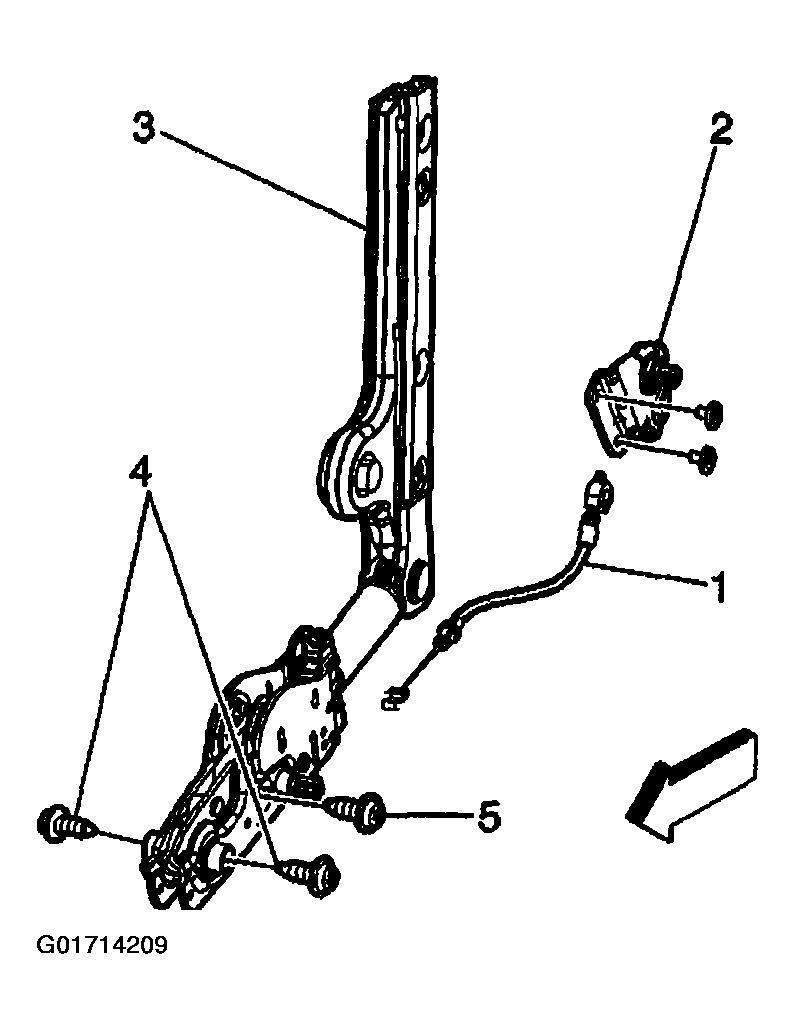

    Fig 3: Seat Recliner Assembly
    G01714209Courtesy of GENERAL MOTORS CORP.
  10. Remove the U-channel (1).

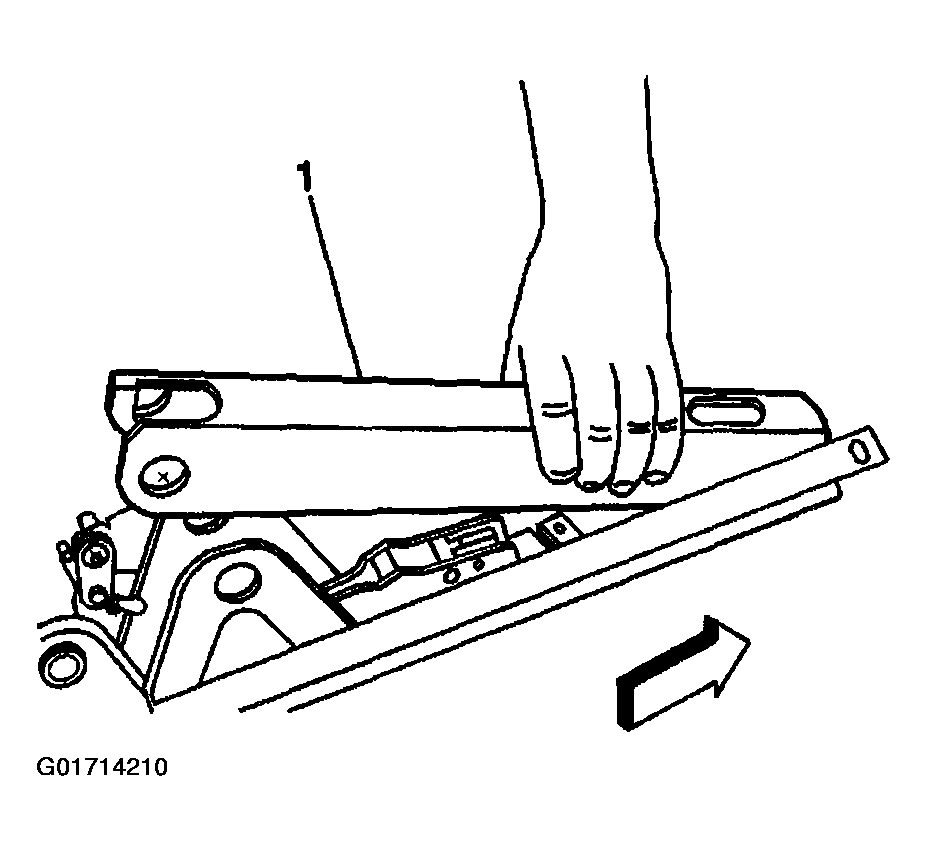

    11. Fig 4: U-Channel
    G01714210Courtesy of GENERAL MOTORS CORP.
  11. Remove the drive cable, if equipped with a power recliner.
  12. Disconnect the recliner cable from the recliner mechanism.
  13. Remove the recliner from the seat frame.
