Removal Procedure
WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
Important: On the Escalade model prior to VIN number 2R116250 the seat back heater is sewn into the seat back cover. Refer to Seat Back Cover & Pad Replacement - Front . the seat back heater can be replaced separate from the seat back cover refer to the procedure below.
- Remove the seat from the vehicle. Refer to Seat Replacement - Front Bucket .
- Remove the seat back trim cover. Refer to Seat Back Cover & Pad Replacement - Front .

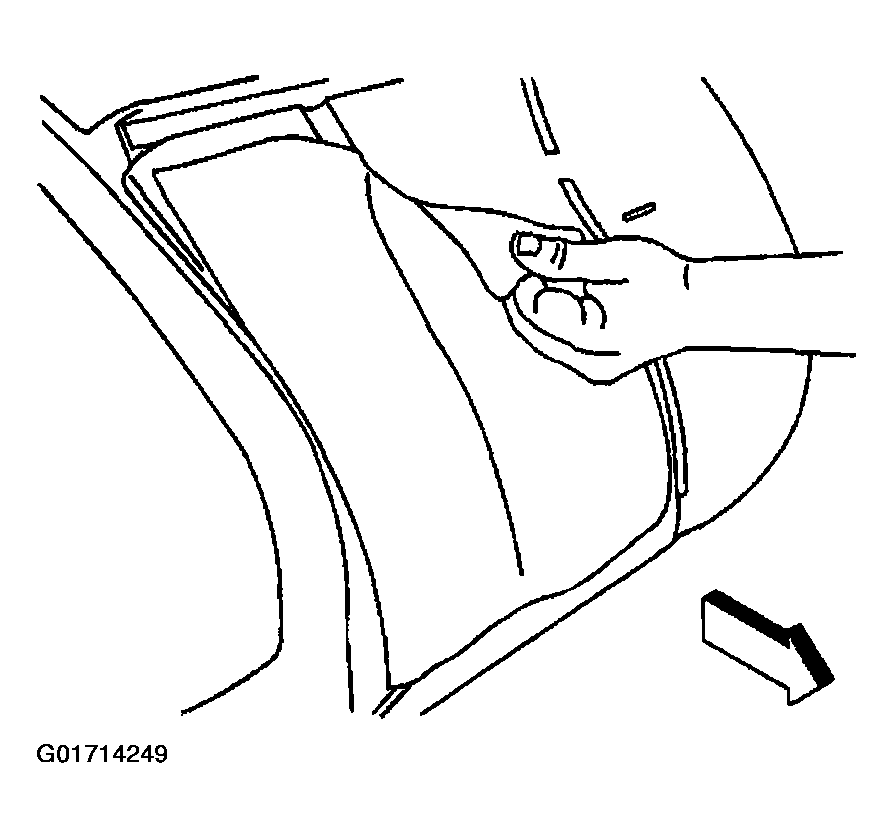

- Peel the seat back heater off the foam pad.
- Disconnect the seat back heater harness.
