Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat from the vehicle. Refer to Seat Replacement - Rear (Extended Cab w/4th Door) , Seat Replacement - Rear (Extended Cab)  or Seat Replacement - Rear (60/40 Split)  .
  2. Remove the armrest, if equipped. Refer to Armrest Replacement - Rear Seat (60/40 - 50/50 Split) .
  3. Partially remove the seat-back cover in order to gain access to the retaining bolts. Refer to Seat Back Cover & Pad Replacement - Rear .
  4. Remove the bolts from the seat-back frame.
  5. Remove the seat-back frame (4) from the seat back cushion frame.

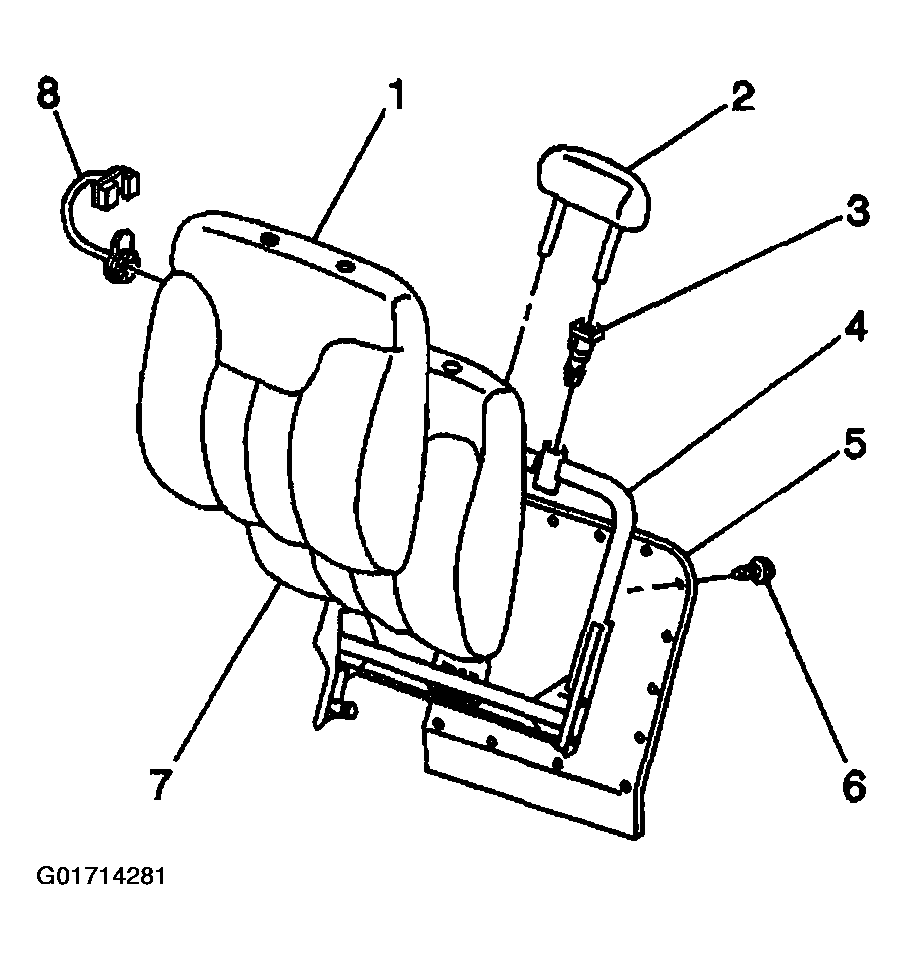

    Fig 1: Seat-Back Frame
    G01714281Courtesy of GENERAL MOTORS CORP.
