Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat from the vehicle. Refer to Seat Replacement - Front Bucket .
  2. Remove the head restraint and guides. Refer to Head Restraint Replacement .
  3. Remove the seat trim panel. Refer to Trim Panel Replacement - Front Seat .
  4. Disconnect the lumbar cable (6) underneath the seat cushion (disconnect the lumbar wire harness if equipped with power lumbar).
  5. Remove the seat back trim cover and pad. Refer to Seat Back Cover & Pad Replacement - Front .

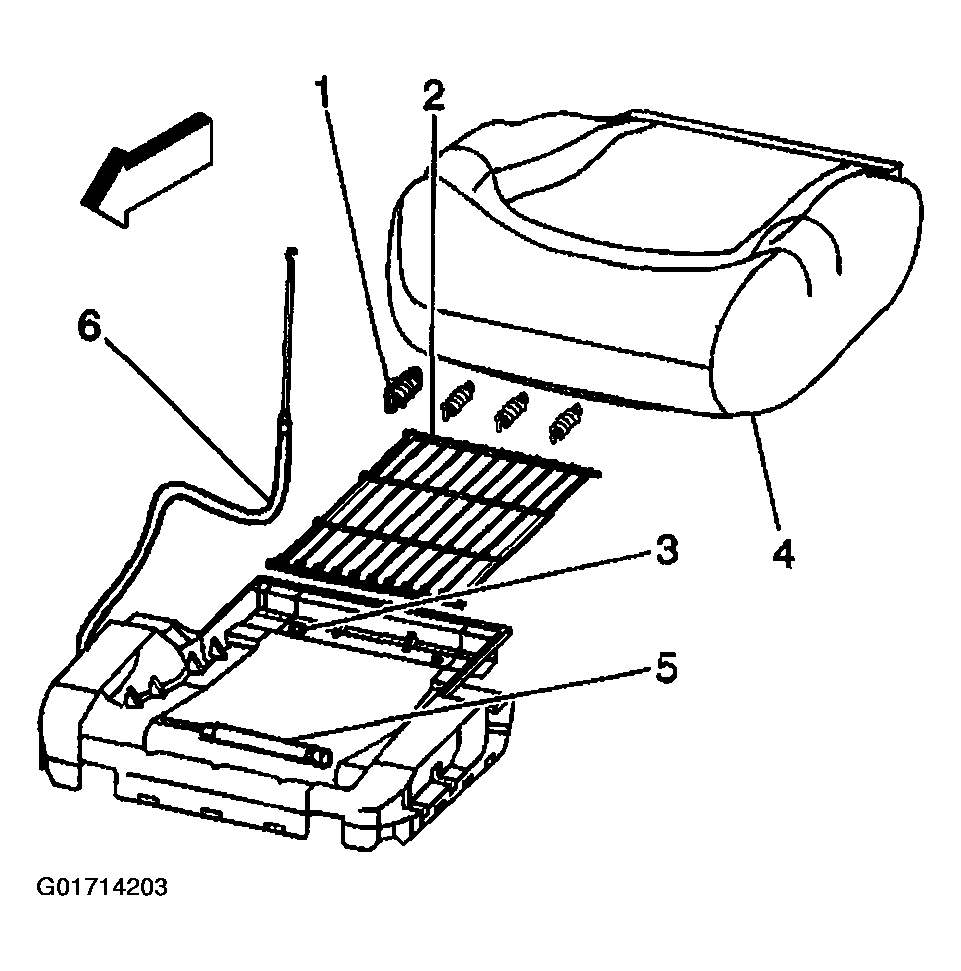

    Fig 1: Seat Back Trim Cover & Pad
    G01714203Courtesy of GENERAL MOTORS CORP.
  6. Remove the lumbar assembly (or power lumbar/bolster assembly if equipped). Refer to Lumbar Replacement - Front Seat (Manual)  or Lumbar Replacement - Front Seat (Power Lumbar/Bolster)  .
  7. Remove the seat belt retractor. Refer to SEAT BELT RETRACTOR REPLACEMENT - LEFT FRONT or SEAT BELT RETRACTOR REPLACEMENT - RIGHT FRONT .
  8. Remove the inboard pivot bolt (1).
  9. Remove the recliner arm attachment bolts (2).
  10. Remove the frame from the vehicle.
  11. Transfer all necessary components to the new seat back frame.

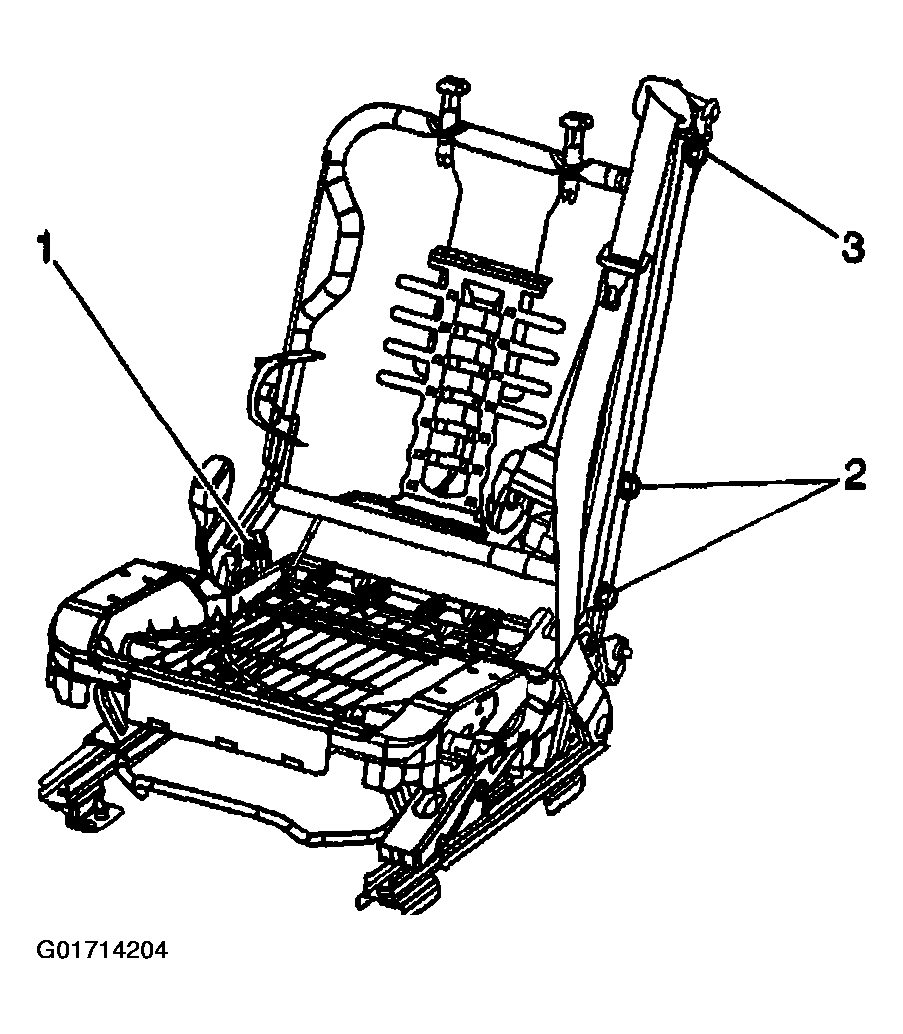

    Fig 2: Seat Frame
    G01714204Courtesy of GENERAL MOTORS CORP.
