Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat from the vehicle. Refer to Seat Replacement - Rear (Extended Cab w/4th Door) , Seat Replacement - Rear (Extended Cab)  or Seat Replacement - Rear (60/40 Split)  .
  2. Remove the seat back folding cover, if equipped.
  3. Remove the armrest from the seat back, if equipped. Refer to Armrest Replacement - Rear Seat (60/40 - 50/50 Split) .
  4. Remove the head restraints (1) from the seat back. Refer to Head Restraint Replacement .
  5. Release the J-clips from the seat back cover.
  6. Release the hook, and the loop strips retaining the seat back cover (2) to the foam pad (12).
  7. In order to ease removal, place a piece of cardboard between the seat back cover and the foam pad.
  8. Working from side to side, carefully lift the seat back cover from the foam pad.

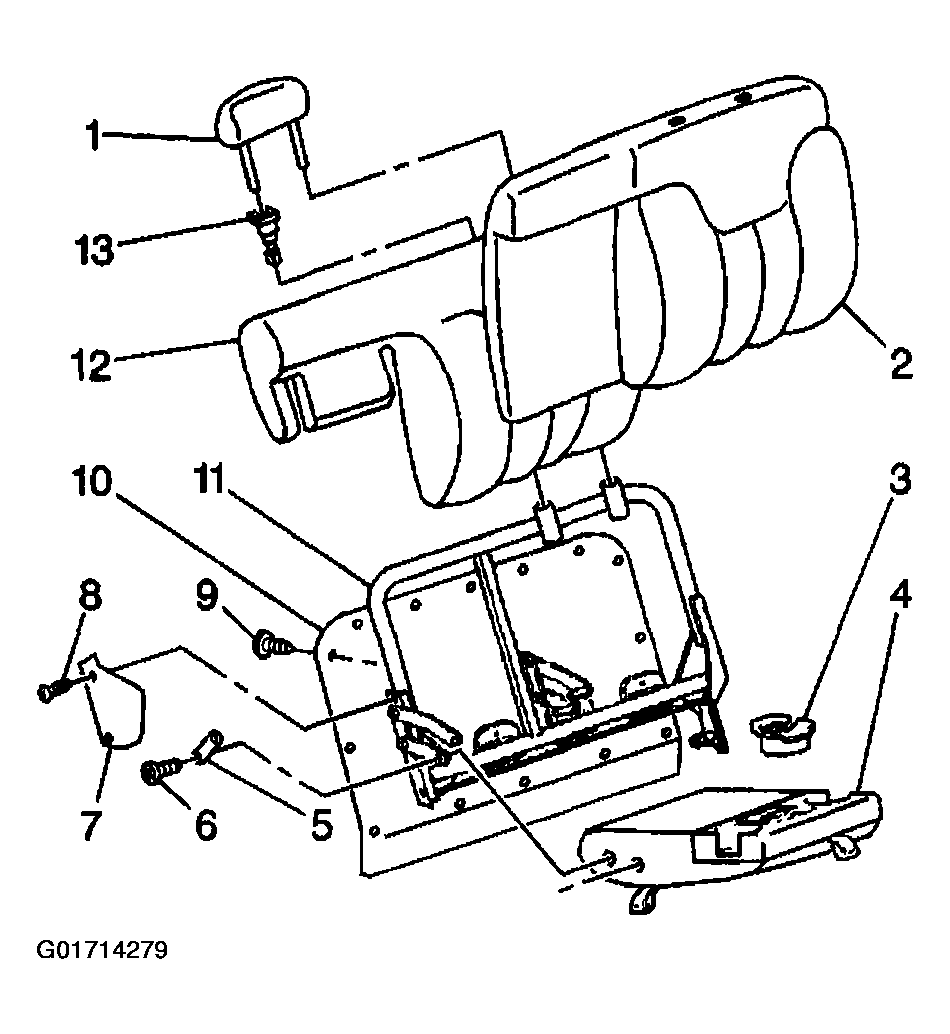

    Fig 1: Seat Back Cover
    G01714279Courtesy of GENERAL MOTORS CORP.
