Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat from the vehicle. Refer to Seat Replacement - Front Bucket .
  2. Unsnap the front tabs, then the rear tabs of the track cover.
  3. Remove the track cover from the vehicle.

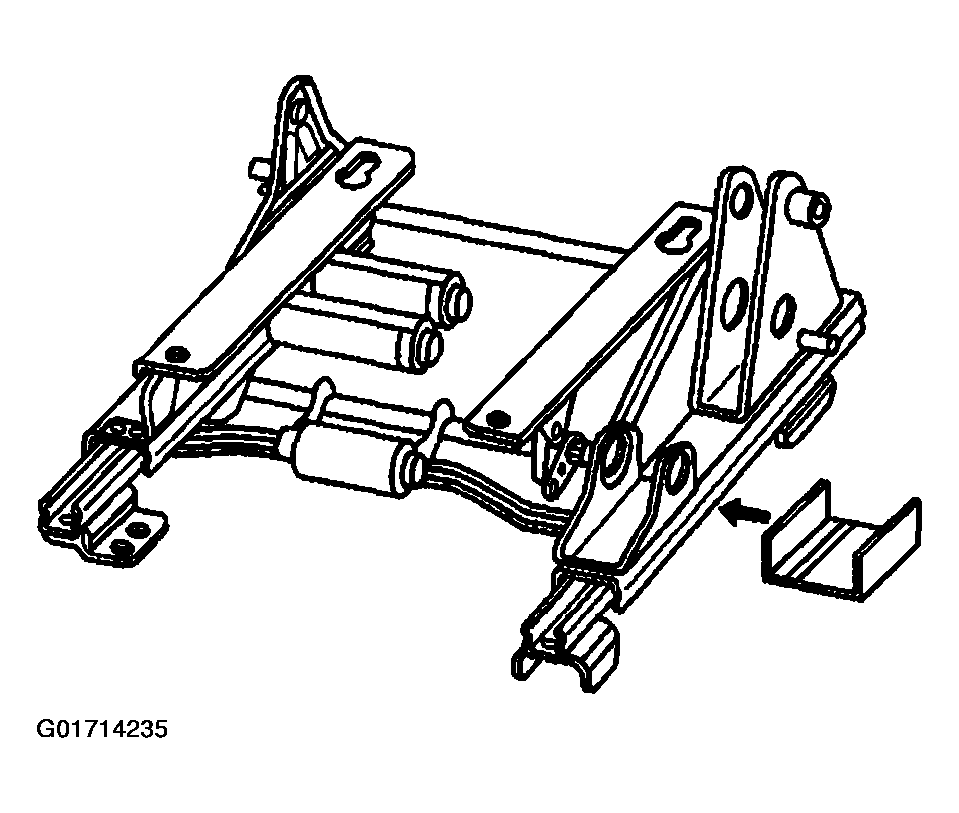

    Fig 1: Seat Adjuster Track Cover Replacement - Front
    G01714235Courtesy of GENERAL MOTORS CORP.
