Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat from the vehicle. Refer to Seat Replacement - Front Bucket .
  2. Remove the seat trim panel. Refer to Trim Panel Replacement - Front Seat .
  3. Remove the seat cushion frame. Refer to Seat Cushion Frame Replacement - Front .
  4. Remove the seat back frame. Refer to Seat Back Frame Replacement - Front .
  5. Remove the seat back hinge/recliner mechanism. Refer to Seat Back Hinge/Recliner Mechanism Replace - Front .
  6. Remove the seat adjuster track cover. Refer to Seat Adjuster Track Cover Replacement - Front .

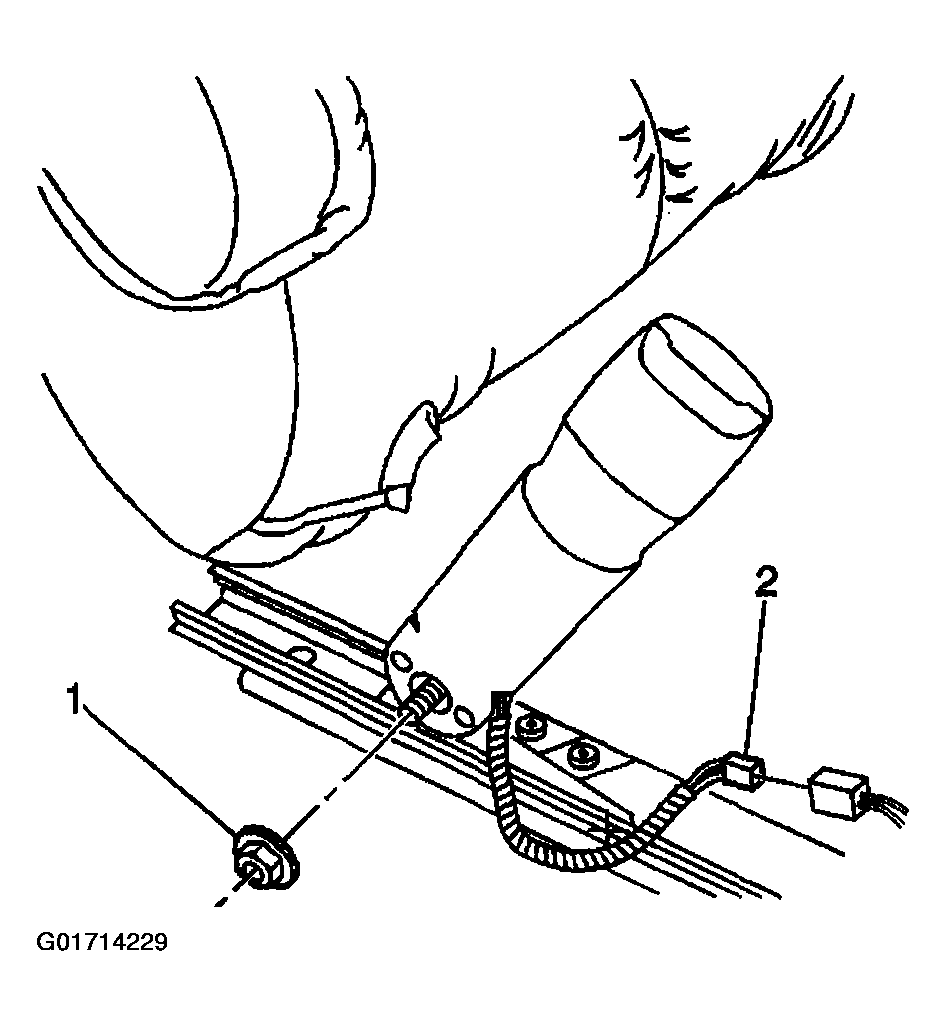

  7. Remove the inboard seat belt buckle and nut (1). Disconnect the electrical connection (2).
    8. Fig 1: Inboard Seat Belt Buckle
    G01714229Courtesy of GENERAL MOTORS CORP.

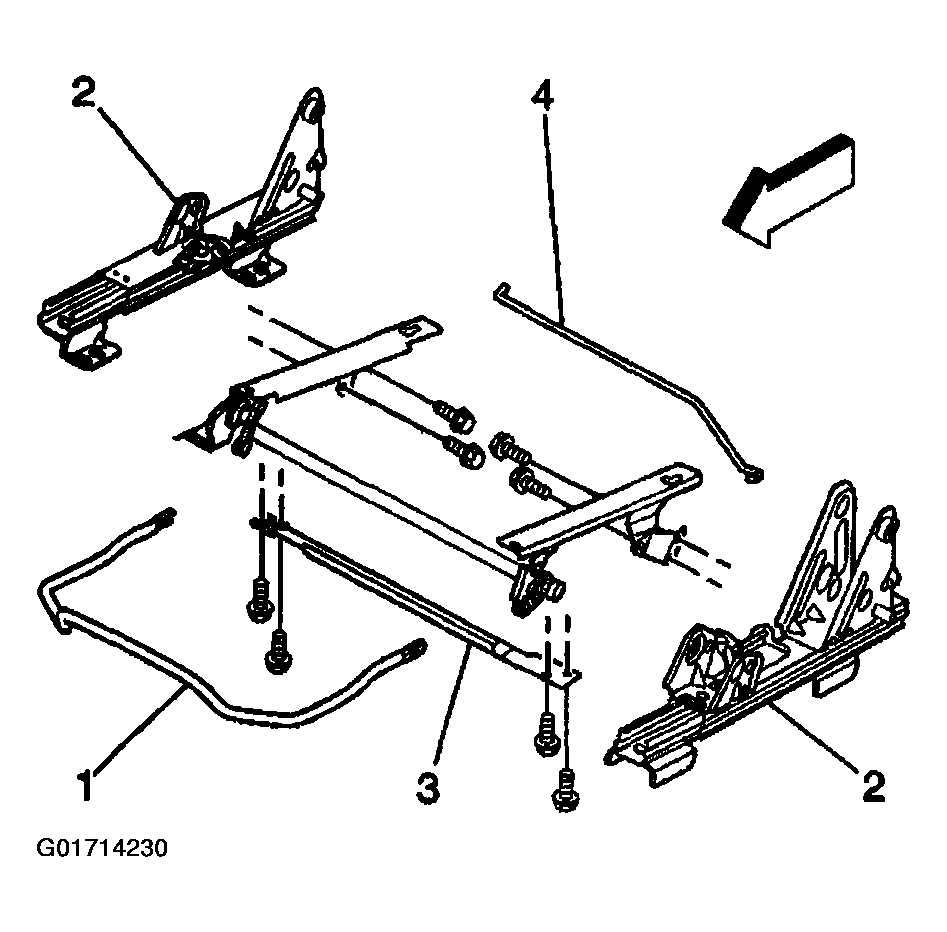

  8. Remove the bar (1) from the adjuster tracks (2). Straighten the tabs in order to remove the bar.
  9. Remove the cross brace (3).
  10. Remove the EZ entry rod (4), if equipped with the EZ entry feature.
    11. Fig 2: Seat Adjuster Tracks, Cross Brace & EZ Entry Rod
    G01714230Courtesy of GENERAL MOTORS CORP.
  11. Remove the cushion tilt mechanism, if equipped.
