Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat from the vehicle. Refer to Seat Replacement - Front Bucket .
  2. Remove the head restraint and guides. Refer to Head Restraint Replacement .
  3. Remove the seat back cover and pad. Refer to Seat Back Cover & Pad Replacement - Front .
  4. Drill out the rivet holes on the bolster paddles (1).

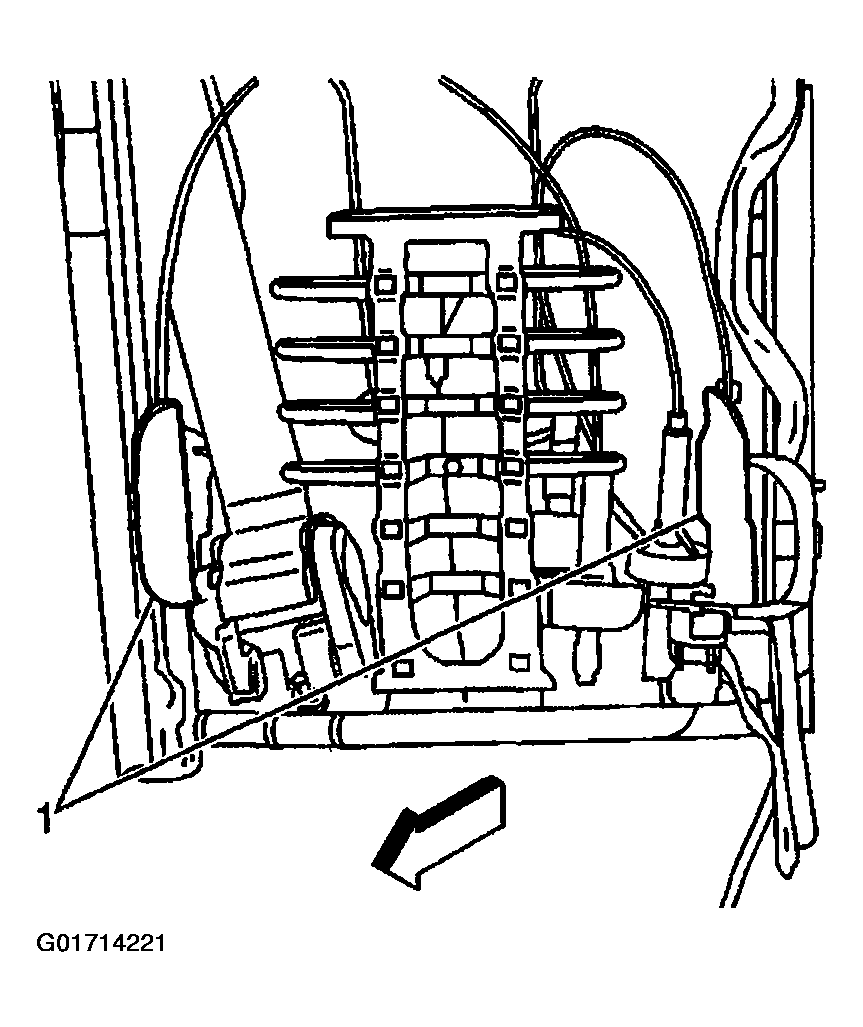

    Fig 1: Bolster Paddles
    G01714221Courtesy of GENERAL MOTORS CORP.
  5. Detach the lumbar clip from the top of the seat frame.
  6. Remove the lumbar wire from the bottom of the seat frame.
  7. Disconnect the electrical connectors to the motors.
  8. Remove the power lumbar/bolster assembly from the seat.

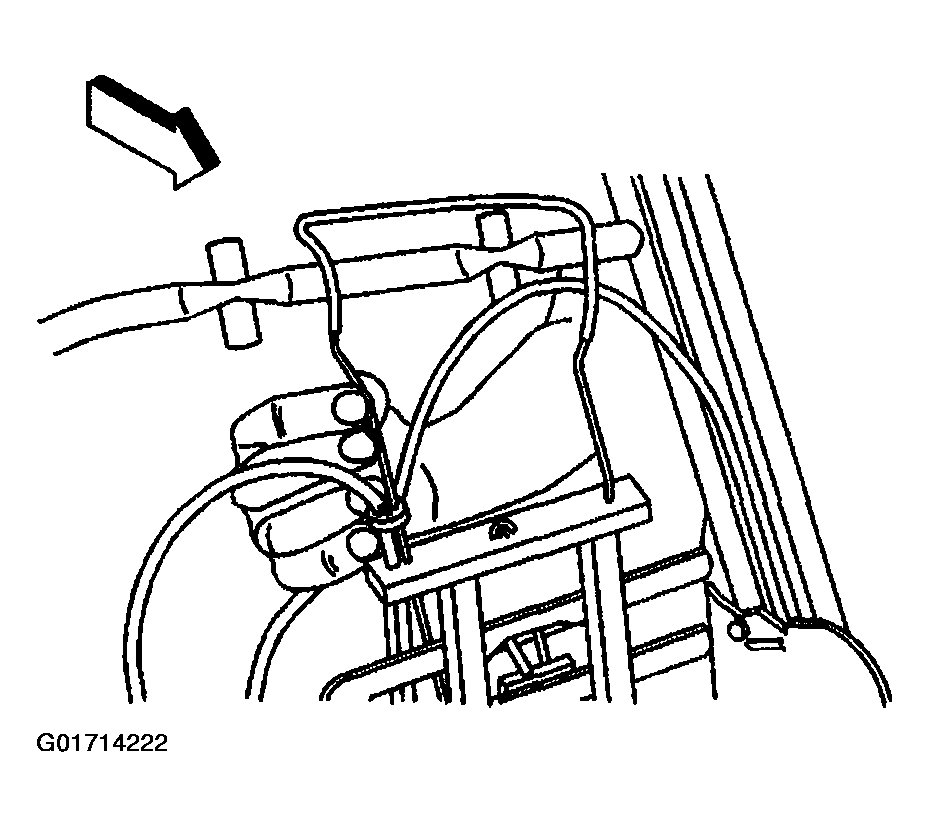

    Fig 2: Power Lumbar/Bolster Assembly
    G01714222Courtesy of GENERAL MOTORS CORP.
