Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat from the vehicle. Refer to Seat Replacement - Front Bucket .
  2. Remove the head restraint and guides. Refer to Head Restraint Replacement .
  3. Remove the seat back cover and pad. Refer to Seat Back Cover & Pad Replacement - Front .
  4. Detach the lumbar clip from the top of the seat back frame.
  5. Rotate the top of the lumbar mechanism forward in order to unclip the lumbar mechanism from the bottom of the seat back frame.

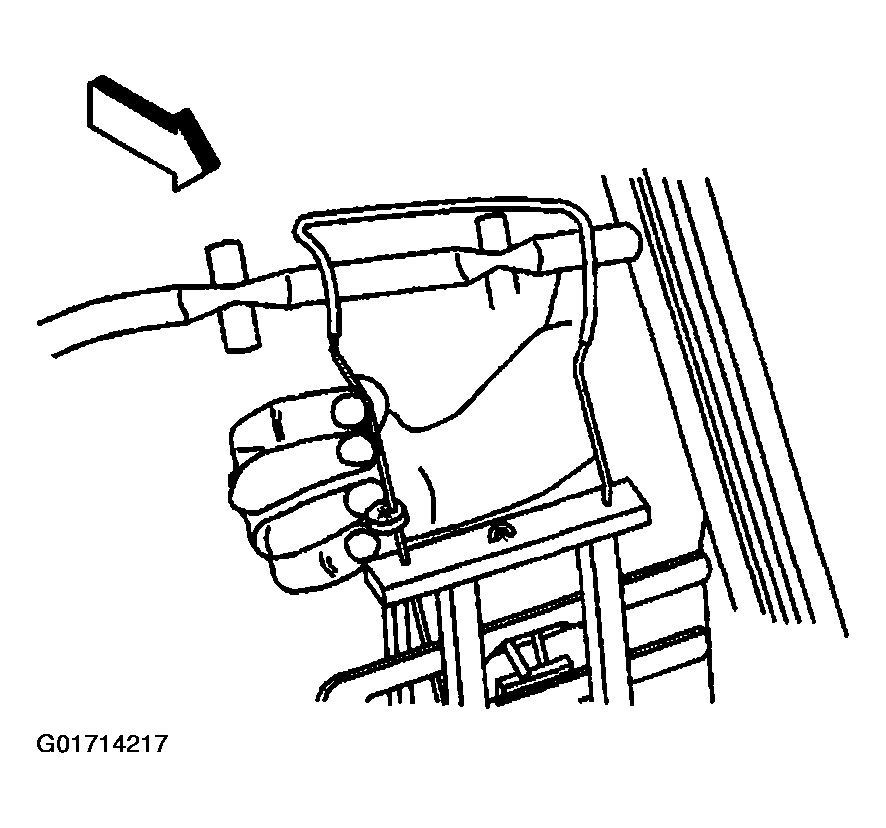

    Fig 1: Lumbar Mechanism
    G01714217Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the lumbar cable (6) from the lumbar actuator (5).
  7. Remove the lumbar assembly from the vehicle.

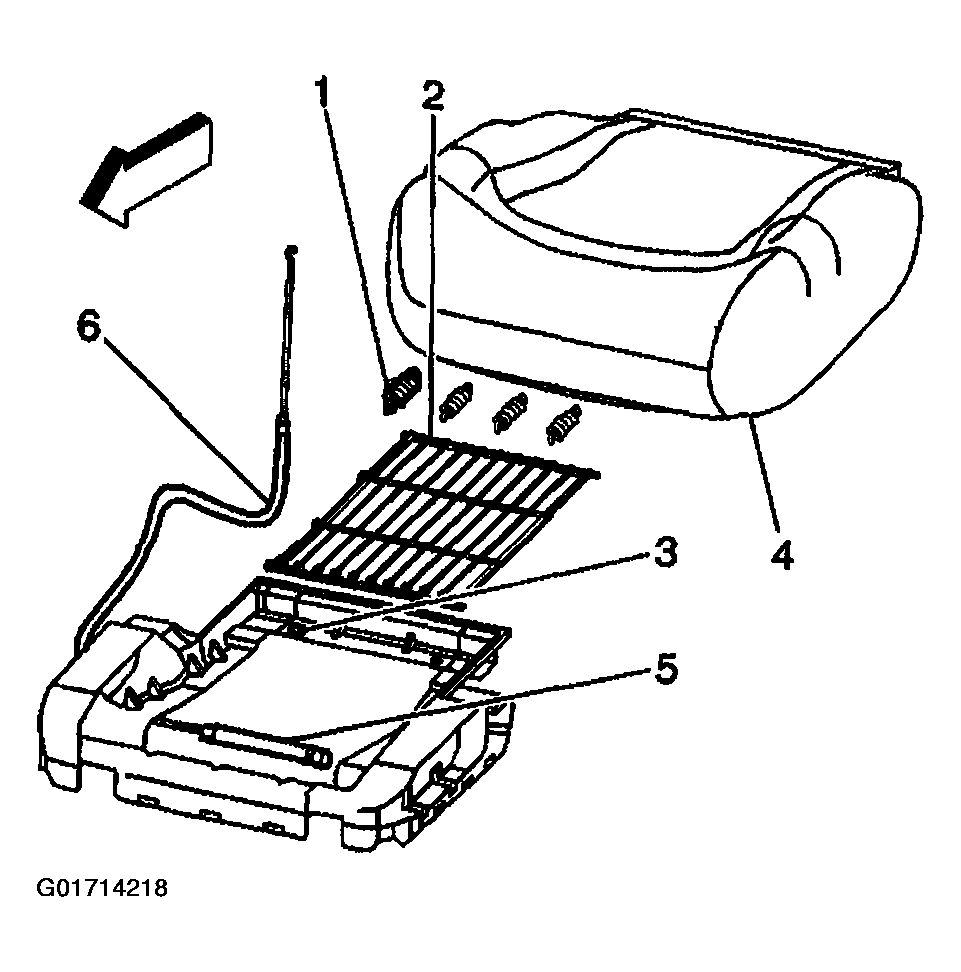

    Fig 2: Seat Back Assembly
    G01714218Courtesy of GENERAL MOTORS CORP.
