Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center console end panel. Refer to CENTER CONSOLE END PANEL REPLACEMENT .
  2. Disconnect the electrical connector
  3. Remove the seat heater switch retaining screws.
  4. Remove the switch from the vehicle.

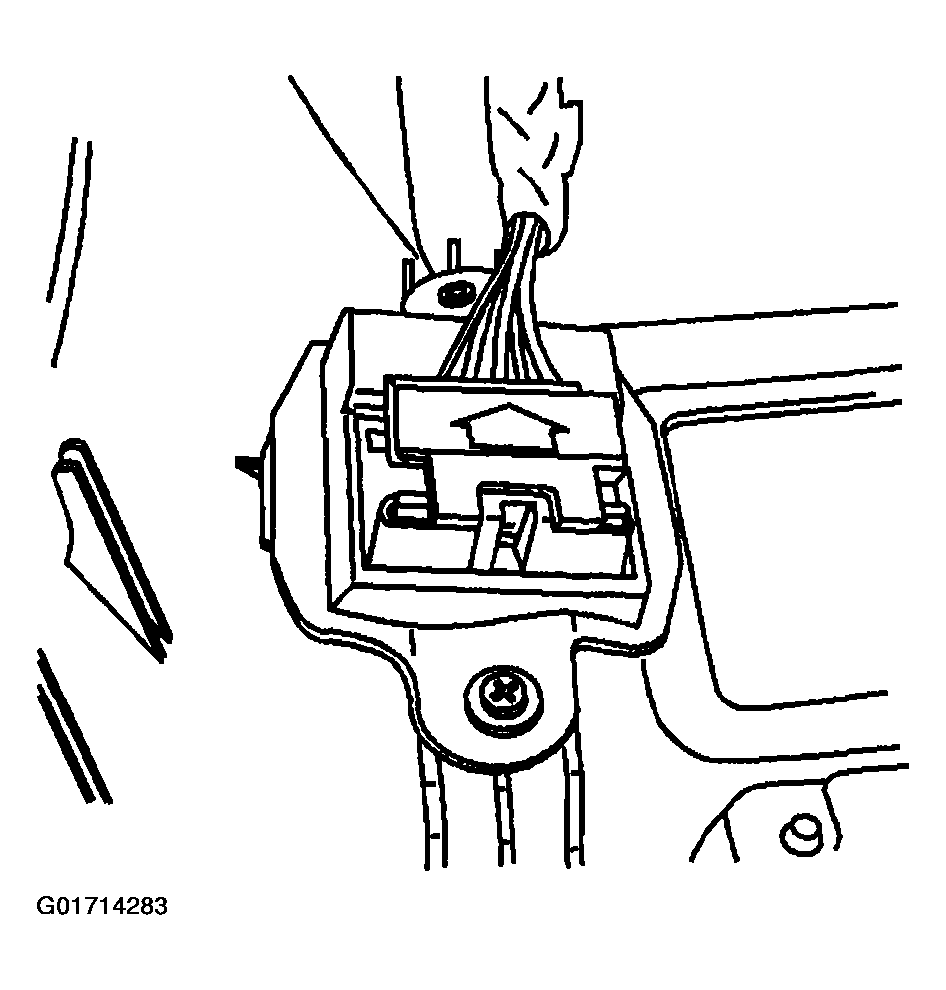

    Fig 1: Heated Seat Switch Replacement - Rear
    G01714283Courtesy of GENERAL MOTORS CORP.
